Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
Longi
-
Model Number:
-
LR5-54HIB-410M
-
Place of Origin:
-
JIA
-
Panel Dimensions:
-
1722*1134*30mm
-
Product name:
-

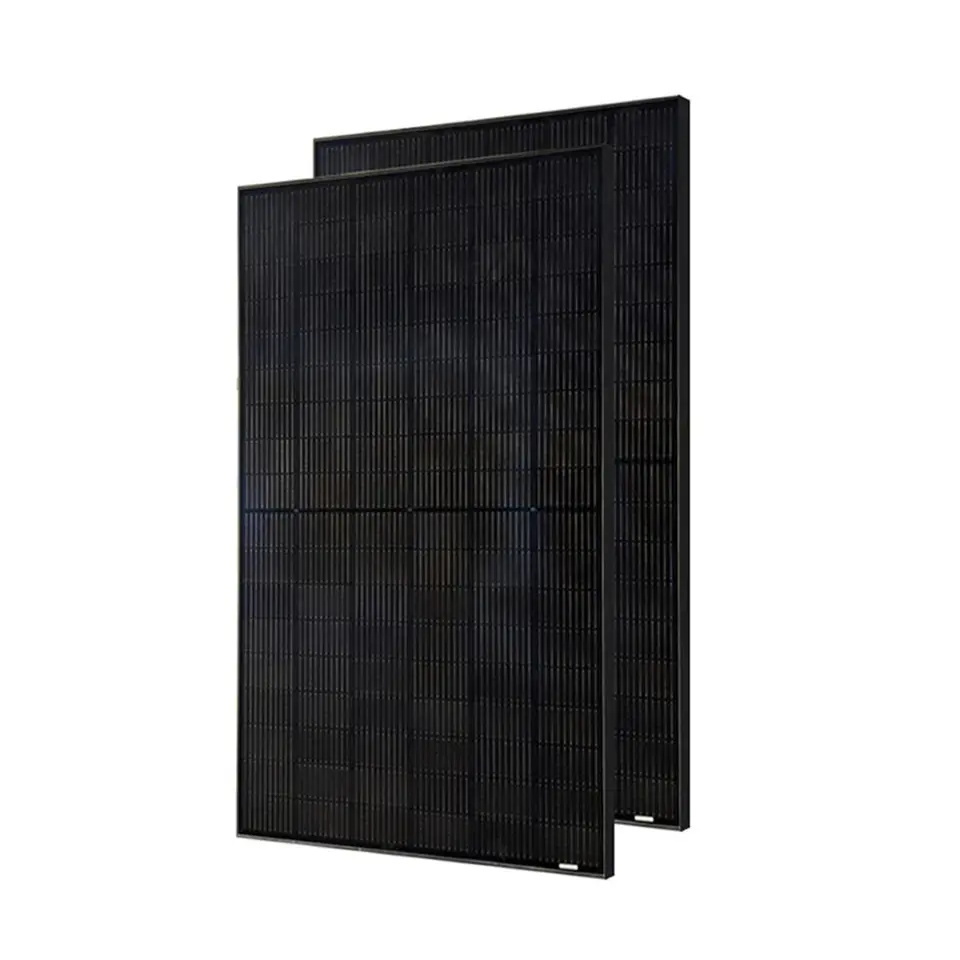

LONGi solar full black
-
Junction Box:
-
Potted, IP68, 3 Schottky bypass diodes
-
Connector:
-
MC4 Compatible Connector
-
Frame:
-
Anodized Aluminium Alloy
-
Cable:
-
4mm2
-
Glass:
-
3.2mm, Anti-Reflection Coating
-
Packing:
-
36PCS / Pallet
-
Weight:
-
20.8kg
-
Certificate:
-
CE/IEC
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, All Black
-
Panel Efficiency:
-
21.3%
-
Warranty:
-
25 years
-
Brand Name:
-
Longi
-
Model Number:
-
LR5-54HIB-410M
-
Place of Origin:
-
JIA
-
Panel Dimensions:
-
1722*1134*30mm
-
Product name:
-
LONGi solar full black
-
Junction Box:
-
Potted, IP68, 3 Schottky bypass diodes
-
Connector:
-
MC4 Compatible Connector
-
Frame:
-
Anodized Aluminium Alloy
-
Cable:
-
4mm2
-
Glass:
-
3.2mm, Anti-Reflection Coating
-
Packing:
-
36PCS / Pallet
-
Weight:
-
20.8kg
-
Certificate:
-
CE/IEC
Product Description
Specification
|
Mechanical Data
|
|
|
|
Brand Name
|
LONGI
|
|
|
Model Number
|
LR5-54HIB-410M
|
|
|
Cell size
|
182mmx182mm
|
|
|
Panel Dimensions
|
1722*1134*30mm
|
|
|
Warranty
|
25 Years
|
|
|
Weight
|
20.8kg
|
|
|
Electrical Characteristics
|
|
|
|
|
|
|
Model Number
|
LR5-54HIB-395M
|
LR5-54HIB-400M
|
LR5-54HIB-405M
|
LR5-54HIB-410M
|
LR5-54HIB-415M
|
|
Maximum Power (Pmax/W)
|
395
|
400
|
405
|
410
|
415
|
|
Open Circuit Voltage (Voc/V)
|
36.65
|
36.9
|
37.15
|
37.4
|
37.65
|
|
Short Circuit Current (Isc/A)
|
13.66
|
13.72
|
13.78
|
13.84
|
13.91
|
|
Voltage at Maximum Power (Vmp/V)
|
30.70
|
30.94
|
31.18
|
31.42
|
31.66
|
|
Current at Maximum Power (Imp/A)
|
12.87
|
12.93
|
12.99
|
13.05
|
13.11
|
|
Module Efficiency (%)
|
20.2
|
20.5
|
20.7
|
21.0
|
21.3
|
|
TEMPERATURE RATINGS
|
|
WORKING CONDITIONS
|
|
||
|
NMOT
|
45℃ ±2℃
|
Maximum system voltage
|
1500 V DC
|
||
|
Temperature coefficient of Pmax
|
-0.34%/℃
|
Operating temperature
|
-40℃~+85℃
|
||
|
Temperature coefficient of Voc
|
-0.265%/℃
|
Maximum series fuse
|
25A
|
||
|
Temperature coefficient of Isc
|
0.05%/℃
|
Maximum load(snow/wind)
|
5400 Pa / 2400 Pa
|
||
Packing & Delivery
36pc per pallet,936pcs per 40HQ
