Quick Details
-
Rated voltage:
-
600V
-
Rated Current:
-
250A
-
Product name:
-
Power distribution box
-
Connection Type:
-
Screw /din rail
-
Certificate:
-
CE/ISO 9001/ISO 14001/OHASA 18001
-
Size:
-
96*50*51
-
Connector material:
-
Brass
-
Color:
-
Blue and gray
-
Standard:
-
IEC 60947-7-1
-
OEM:
-
Yes
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WEIWO
-
Model Number:
-
UKK-250A
-
Rated voltage:
-
600V
-
Rated Current:
-
250A
-
Product name:
-
Power distribution box
-
Connection Type:
-
Screw /din rail
-
Certificate:
-
CE/ISO 9001/ISO 14001/OHASA 18001
-
Size:
-
96*50*51
-
Connector material:
-
Brass
-
Color:
-
Blue and gray
-
Standard:
-
IEC 60947-7-1
-
OEM:
-
Yes
Product Description

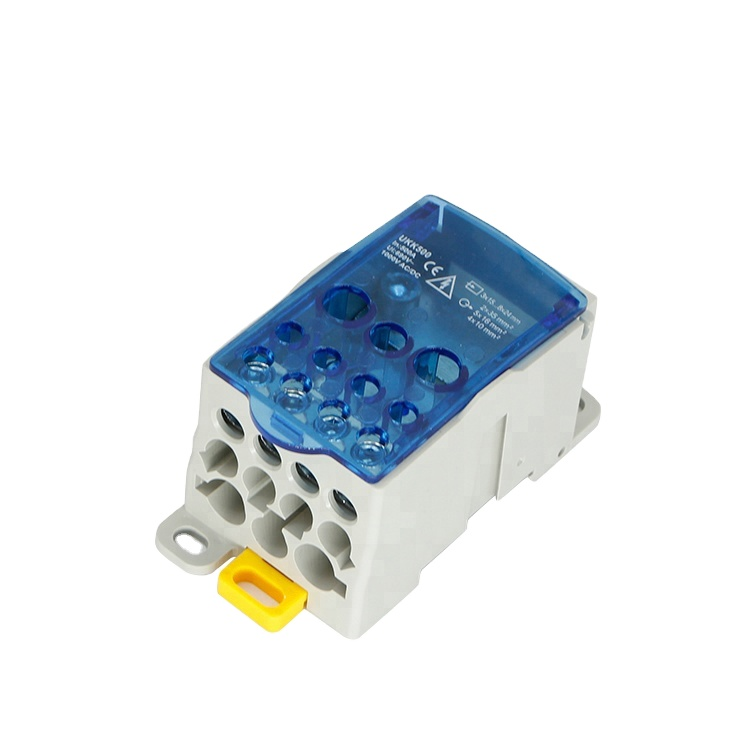

UKK 250A connector Terminal Block With Distribution Block Electrical Screw Din Rail Mounted Power Distribution Terminal Blocks
These blocks are used in electrical power distribution. An electric power distribution terminal block is a convenient, economical
and safer way to distribute power from a single input source to multiple outputs. Complete with main removeable cover.High
conductivity with excellent electrical contacts.
Compact design
• Simple and Safety Operating
• Install on 35mm wide DIN rail or chassis mounting with screws.
• With Dust-proof and insulation cover
• hinged design with safety removable cover.
and safer way to distribute power from a single input source to multiple outputs. Complete with main removeable cover.High
conductivity with excellent electrical contacts.
Compact design
• Simple and Safety Operating
• Install on 35mm wide DIN rail or chassis mounting with screws.
• With Dust-proof and insulation cover
• hinged design with safety removable cover.
|
Item name
|
spec.
|
Rated Current
(A)
|
Rated Voltage
(V)
|
Input Cable size
(mm2)*pcs
|
Output Cable size
(mm2)*pcs
|
Install Way
din rail
|
Size
(mm)
|
|
Terminal Box
|
UKK-80A
|
80
|
500
|
16*2
|
(2.5-16)*1
(1.5-10)*4
|
1.0*7.5*35
|
65*31*47
|
|
|
UKK-125A
|
125
|
500
|
35*1
16*1
|
(2.5-16)*6
|
1.0*7.5*35
|
75*31*47
|
|
|
UKK-160A
|
160
|
500
|
70*1
16*1
|
(2.5-16)*6
|
1.0*7.5*35
|
75*31*48
|
|
|
UKK-250A
|
250
|
500
|
120*1
|
(6-35)*2
(2.5-25)*4
(2.5-16)*5
|
1.0*7.5*35
|
96*50*51
|
|
|
UKK-400A
|
400
|
500
|
175*1
|
(6-35)*2
(2.5-25)*4
(2.5-16)*5
|
1.0*7.5*35
|
95*50*51
|
|
|
UKK-500A
|
500
|
500
|
8*25
|
(6-35)*2
(2.5-25)*4
(2.5-16)*5
|
1.0*7.5*35
|
96*50*51
|
