Quick Details
-
Warranty:
-
1-2YEARS, We may make 2 years quality warranty
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
EMEAN or OEM
-
Model Number:
-
GFS-200
-
Certificate:
-
CE,ISO9001,SONCAP,CIQ
-
Product Name:
-
Factory Hot Sale 10 kw Diesel Generator for Sale
-
Place of origin:
-
Fuan city--- the original place of Generator and motor
-
Technical:
-
The introduction of Germany technology
-
One-stop service:
-
More than 16 years old factory
-
Delivery port:
-
Fuzhou,Shenzhen,Any port in China
-
Competitive:
-
Top1 generator machinery factory
-
Factory address:
-
JIAN ROAD FUAN CITY,FUJIAN,CHINA
-
Our advantage:
-
Our workers are all from Chinese earliest MINDONG factory
Quick Details
-
Rated Voltage:
-
110V, 220V, 230V, 240V, 380v, 400V, 480V
-
Rated Current:
-
depends on voltage
-
Frequency:
-
50/60HZ
-
Warranty:
-
1-2YEARS, We may make 2 years quality warranty
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
EMEAN or OEM
-
Model Number:
-
GFS-200
-
Certificate:
-
CE,ISO9001,SONCAP,CIQ
-
Product Name:
-
Factory Hot Sale 10 kw Diesel Generator for Sale
-
Place of origin:
-
Fuan city--- the original place of Generator and motor
-
Technical:
-
The introduction of Germany technology
-
One-stop service:
-
More than 16 years old factory
-
Delivery port:
-
Fuzhou,Shenzhen,Any port in China
-
Competitive:
-
Top1 generator machinery factory
-
Factory address:
-
JIAN ROAD FUAN CITY,FUJIAN,CHINA
-
Our advantage:
-
Our workers are all from Chinese earliest MINDONG factory
Emean company owned by
Fujian Epos Electric Machinery Co., Ltd
and Fuzhou Emean Electric Machinery Co.,Ltd,
that is a high-tech enterprise integrating R&D, production and sales, and has always promoted high-quality power products to the international market.
The products are widely sold
more than 102countries and regions such as Southeast Asia South America Middle east Africa and Europe.
Product Description
|
Characteristic
|
Value
|
|
|

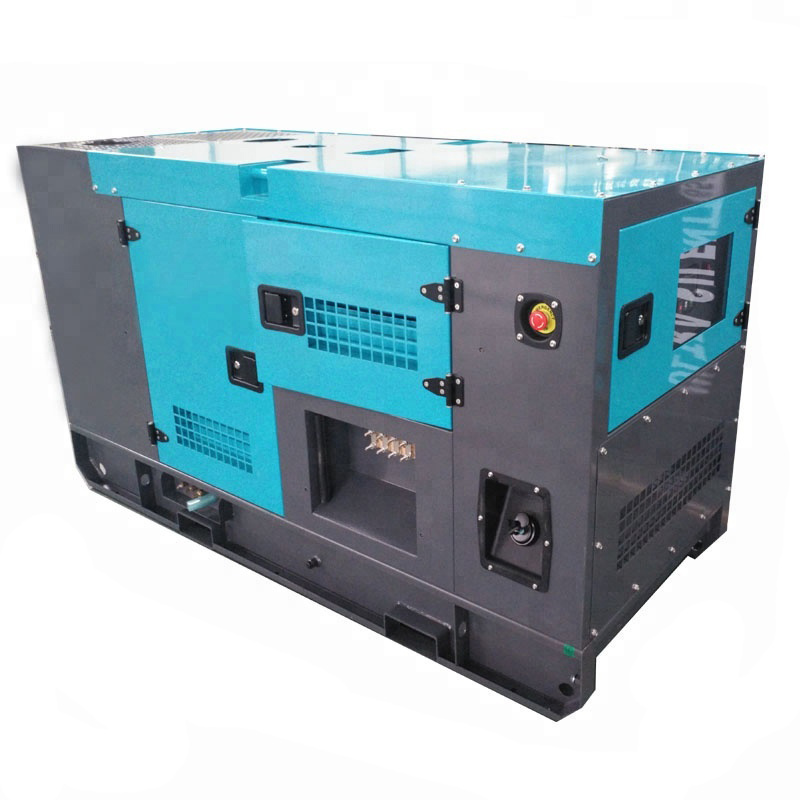

Power generator EMEAN model
|
VG-R14 with soundproof hood
|
|
|
Article no.
|
VG-R14 with hood
|
|
|
Three-phase
|
|
|
|
Maximum power) kW / kVA
|
11kw/14kva
|
|
|
(Continuous output) kW / kVA
|
10kw/12.5kva
|
|
|
Performance data
|
|
|
|
Voltage volts
|
400/230/380
|
|
|
Frequency Hz
|
50/60
|
|
|
Power factor cos ϕ
|
0.8
|
|
|
Engine
|
|
|
|
Manufacturer
|
WEIFANG/Ricardo (Optional Cummins.perkins, Yuchai, Deutz,WEICHAI,YANGDONG,etc.)
|
|
|
Mode
|
ZH2015D
|
|
|
Fuel
|
Diesel
|
|
|
Speed rpm
|
1500/1800
|
|
|
Cylinder
|
2
|
|
|
Cooling system
|
water
|
|
|
Starter
|
electric
|
|
|
Consumption
|
|
|
|
Fuel consumption at 75% load (l / h)
|
4.1
|
|
|
Fuel capacity tank (l)
|
58.8
|
|
|
Running time at 75% load (h)
|
14
|
|
|
Measures and Weight
|
|
|
|
Length (mm)
|
1700
|
|
|
width (mm))
|
900
|
|
|
Height (mm)
|
1125
|
|
|
Weight, dry (kg)
|
650
|
|
|
Protection classes
|
|
|
|
Great
|
H
|
|
|
IP protection class
|
23
|
|
|
Noise emission Optional
|
|
|
|
Sound pressure in 7 m DB (A)
|
60-75
|
|
|
Manual control - MCP
|
Automatic control panel - ACP
|
|
|
A manual control is mounted on the generator
including displays, monitoring and connectors with protective devices. |
Mounted in the control unit of the power generator Control AC03 for control and Monitoring for emergency power operation. Lockable
Door with viewing window in front of the Control panel. |
|
|
◆ Start / stop and preheating by means of a key switch
◆ Not-Emergency stop button |
◆ Operating modes: Off, manual, automatic, test ◆ Button for mains and generator switch control
◆ emergency stop ◆ Remote start ◆Control voltage main switch ◆ battery charge retention ◆ RS232 interface ◆ Audible alarm ◆ Password protection for parameter settings |
|
|
◆ Alternator failure ◆ Low oil pressure
◆ engine temperature ◆ Earth fault current |
◆ Motor protection: Low oil pressure, Engine temperature ◆ Generator: under / over voltage, overload, under /Overfrequency, start
failure, battery voltage |
|
|
◆ alternator ◆ alternator
◆ High engine temperature ◆ short-circuit release (3-pole circuit breaker) |
◆ Motor protection: Low oil pressure, Engine temperature ◆ Generator: under / over voltage, overload, ◆ 3-pole circuit breaker
◆Earth fault current |
|
|
◆ voltmeter (1-phase) ◆ ammeter (1-phase)
◆ Hour meter |
◆
Grid parameters voltage, frequency ◆ Grid power and CosPhi
◆ Generator voltage (3-phase true RMS) ◆ generator frequency ◆Generator power and Cosphi (kW, kVA, kVAr) ◆ battery voltage ◆ Operating hours and engine statistics ◆ all available motor parameters and speed ◆ tank capacity% |
|
|
◆ Lockable door with viewing window in front of the control panel
|
◆ Lockable door with viewing window in front of the Control panel
|
|
Our Service
Sound Insulation and Custom Technology
|
HIGH-DENSITY WAVE SOUND-ABSORBING COTTON
1. When sound waves pass through cotton, they are reflected by countless fibers,superimposed on each other, and collide.The sound wave energy is converted into heat energy, so that the intensity of the sound wave is weakened and the sound disappears.
2. Mute sponge Mute sponge, thickness 33 mm
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
1、LOGO and color customization
2 、Nameplate customization
3、Style customization
（You can choose rounded, right-angled, Denyo and other styles）
4、Fuel tank capacity customization
(You can choose 8 hours, 12 hours, 24 hours, 48 hours)
