Quick Details
-
Material:
-
Aluminum alloy
-
Color:
-
Yellow
-
Power:
-
Lithium battery
-
Product name:
-
GNSS RTK South Galaxy G3
-
Channel:
-
1598 channels
-
Internal UHF:
-
2W radio, receive and transmit, radio router and radio repeater
-
Electric bubble:
-
support
-
Frequency range:
-
410 - 470MHz
-
IMU tilt survey 60 degree:
-
Support
-
Weight:
-
790g (battery included)
-
Protocol:
-
Farlink, Trimtalk450s, SOUTH, SOUTH+, SOUTHx, HUACE, Hi-target, Satel
-
Battery capacity:
-
Built-in smart lithium battery, 9600mAh
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
GuangDong China
-
Brand Name:
-
South
-
Material:
-
Aluminum alloy
-
Color:
-
Yellow
-
Power:
-
Lithium battery
-
Product name:
-
GNSS RTK South Galaxy G3
-
Channel:
-
1598 channels
-
Internal UHF:
-
2W radio, receive and transmit, radio router and radio repeater
-
Electric bubble:
-
support
-
Frequency range:
-
410 - 470MHz
-
IMU tilt survey 60 degree:
-
Support
-
Weight:
-
790g (battery included)
-
Protocol:
-
Farlink, Trimtalk450s, SOUTH, SOUTH+, SOUTHx, HUACE, Hi-target, Satel
-
Battery capacity:
-
Built-in smart lithium battery, 9600mAh
Product Description
Smart Design H6 Controller Egstar Bluetooth Wi-Fi Rtk Survey Equipment Gps Gnss G3 South

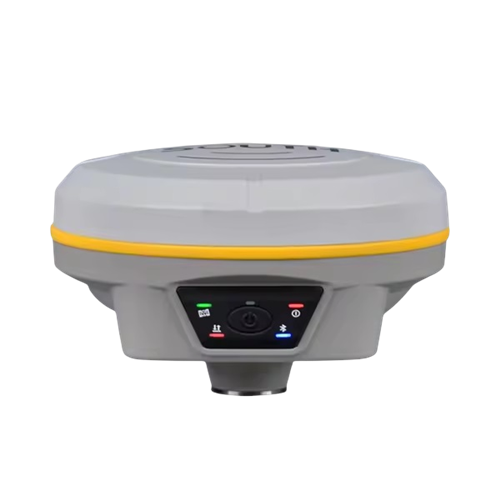

Galaxy G3
RTK GNSS
Galaxy G3 is a new product from SOUTH SoC platform, most components ofG3 (GNSS module, Wi-Fi, Bluetooth, etc.) are integrated on one circuit board. G3has lower power consumption, and efficiently improves the ability of receivinghigher quality satellites signals.
Powerd by the new SoC GNSS board, new generation sensitivity satellite antenna,new ROS platform and GNSS RTK engine, G3 can fully track GPS, GLONASSBDS, GALlLEO and QZSS toobtain centimeter-level positioning in few seconds
Now G3 supports the BeiDou-3 B2b L-band BDS-PPP and Galileo High AccuracyService (Galileo-HAS), it can get real-time high-precision positioning even there isno base receiver.
Thanks to the new function "Fixed-keep", now it is possible for G3 to keepcentimeter-level accuracy for few minutes when the RTK corrections is missing.
Specification
|
1598 Channels Land Survey Equipment South Galaxy G3
|
|
|
||
|
GNSS configuration |
Number of channels
|
1598
|
||
|
|
BDS
|
B1、B2、B3
|
||
|
|
GPS
|
L1 C/A, L2E, L2C, L5
|
||
|
|
GLONASS
|
L1 C/A, L2 C/A, L3
|
||
|
|
GALILEO
|
E1, E5A, E5B, E5AltBOC, E6
|
||
|
|
SBAS
|
L1 C/A, L5
QZSS, WAAS, MSAS, EGNOS, GAGAN |
||
|
|
Positioning output frequency
|
1Hz~50Hz
|
||
|
|
Differential support
|
CMR、RTCM2.X、RTCM3.0、RTCM3.2
|
||
|
|
Static format support
|
GNS, Rinex dual format static data
|
||
|
|
RTK positioning accuracy |
Plane: ±(8+1×10-6D) mm (D is the distance between the measured points) Elevation: ±(15+1×10-6D) mm
(D is the distance between the measured points) |
||
|
|
Static positioning accuracy |
Plane: ±(2.5+0.5×10¯6D) mm (D is the distance between the measured points)
Elevation: ±(5+0.5×10¯6D) mm (D is the distance between the measured points) |
||
|
|
DGPS positioning accuracy
|
Plane accuracy: ±0.25m+1ppm;Elevation accuracy: ±0.50m+1ppm
|
||
|
|
Initialization time
|
<10 seconds
|
||
|
|
Initialization reliability
|
＞99.99%
|
||
|
Built-in communication |
network
|
Built-in 4G full Netcom network communication
|
||
|
|
WiFi
|
802.11b/g access point and client mode, can provide WiFi hotspot service
|
||
|
|
Bluetooth
|
Built-in Bluetooth
|
||
|
|
Built-in transceiver
|
|
||
|
|
Radio
|
Built-in integrated receiving radio
|
||
|
|
frequency band:
|
410MHz-470MHz
|
||
|
|
Protocol
|
TrimTalk、south、Farlink、ZHD、huace
|
||
|
User Interface |
panel
|
Single button
|
||
|
|
Indicator light
|
5 indicate lights
|
||
|
Electrical physical properties |
battery
|
Built-in battery, 7.4V 6800mAh/per
|
||
|
|
Power Supply
|
9-25V DC, overvoltage protection
|
||
|
|
Size
|
130*80mm
|
||
|
|
weight
|
780g
|
||
|
|
material
|
Shell is made of magnesium alloy material
|
||
|
Environmental characteristics |
Dust and water release
|
P68, can resist temporary immersion under 2 meters water, completely prevent dust from entering
|
||
|
|
Anti-fall
|
Resistance to natural drop of 3 meters
|
||
|
|
Operating temperature
|
-45℃~75℃
|
||
Packages
base and rover full set picture
