Quick Details
-
Brand Name:
-
FCTEL
-
Model Number:
-
FCM-G8B2
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-

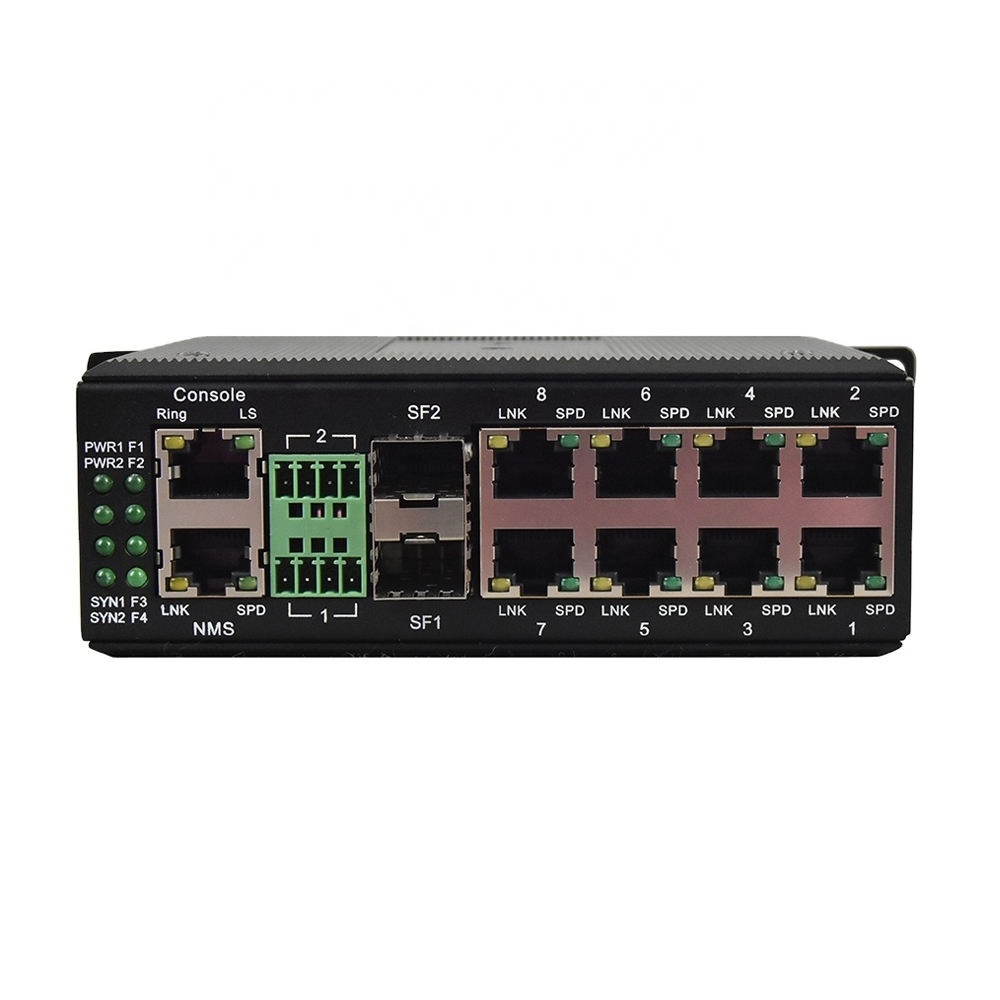

8*GE+2*RS232/422/485+2GE optic fiber ring network Industrial Switch
-
Weight:
-
1.1KG
-
Power supply:
-
DC9-48V
-
Size:
-
133*120*50mm(WXDXH)
-
Color:
-
Black
-
working Humidity:
-
0%~95 % (no condensation)
-
Working temperature:
-
-40°C ~ 85°C
-
Warranty:
-
5Years
-
Power consumption:
-
≤10W
-
optical port:
-
2
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
56g
-
Brand Name:
-
FCTEL
-
Model Number:
-
FCM-G8B2
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-
8*GE+2*RS232/422/485+2GE optic fiber ring network Industrial Switch
-
Weight:
-
1.1KG
-
Power supply:
-
DC9-48V
-
Size:
-
133*120*50mm(WXDXH)
-
Color:
-
Black
-
working Humidity:
-
0%~95 % (no condensation)
-
Working temperature:
-
-40°C ~ 85°C
-
Warranty:
-
5Years
-
Power consumption:
-
≤10W
-
optical port:
-
2
This series of products adopt the industrial redundant ring network design. Each equipment has two optical fiber ports used to form the ring network. The ring network topology structure is formed by the cascade mode of hand-in-hand. The industrial redundant ring network design is to realize the stability, reliability and real-time performance of data transmission in harsh environment. Its working principle is that the physical connection is in a ring structure, and the network signal is in a chain structure. Once a
certain node of the transmission optical cable is broken, the equipment will automatically switch to the standby line for transmission in a very short time. The redundant ring network structure not only reduces the risk of data signal transmission, but also simplifies the engineering installation and reduces the engineering cost.
This product provides: 2 Gigabit SMP Ethernet optical ports; 8 Gigabit Ethernet UTP interfaces; 2 RS232 / 422 / 485 serial ports. Two serial ports are designed independently. Each serial port is a master-slave design, one is a master control node, and the others are slave nodes.
|
Product number
|
FCMJ-G8R2
|
|
Product function description
|
8*10/100/1000M UTP optical Ethernet Ring network switch,SFP module,Industrial rail type or Wall mounted type
|
|
Service port description
|
8* GE UTP，2*RS232/422/485 Port，2* GE Ring network fiber
|
|
Power supply
|
Redundant dual power input DC9-48V/AC9-48V ,Consumption<10W
support Overload protection ; reverse protection; redundancy protection Access terminal: 4-core 5.08mm spacing plug-in terminal |
|
Product Size
|
(L×W×H) 133mm(L) x 120mm(W) x 50.0mm(H)（Industrial rail type）
|
|
Weight
|
1.1KG
|
|
Fiber optic
|
|
|
|
Optical port
|
|
|
|
Optical fiber
|
single fiber and dual fiber
|
|
|
Fiber Interface
|
FC/SC/ST/LC (SFP)
|
|
|
Wavelength
|
850nm/1310nm multimode, 1310nm/1550nm single mode
|
|
|
No relay transmission distance
|
20~120Km
|
|
|
Ethernet interface(10/100M/1000M)
|
|
|
|
Interface rate
|
10/100/1000M self-adaptive，Full / half duplex adaptive
|
|
|
Interface Standard
|
Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
|
|
|
MAC Address Capability
|
4096
|
|
|
Connector
|
RJ45, support Auto-MDIX（Cross / straight adaptive）
|
|
|
Working environment
|
|
|
|
Working temperature
|
-40℃-+85℃
|
|
|
Storage temperature
|
-40℃-+85℃
|
|
|
Working humidity
|
0%-95%(no condensation)
|
|
|
MTBF
|
>100,000 hours
|
|
* Industrial guideway design, specially designed for harsh industrial environment
*
The cache can reach 4Mbit, which can meet the smooth transmission of 4K video
*
Support IEEE802.3/802.3u/802.3ab/802.3z/802.3x storage and forwarding mode
*
Support 32g back-panel bandwidth and large switching cache to ensure line speed forwarding of all ports
*
Redundant network supports STP / RSTP / MSTP, EAPs and ERPs
* Multicast supports IGMP snooping V1 / V2 / V3 and GMRP
*
The VLAN supports IEEE 802.1Q 4K VLAN and QinQ
* The link aggregation supports manual aggregation and static / dynamic LACP protocol
* QoS supports cos, DSCP, 8 queues, WRR, SP, WFQ scheduling mode, and policy QoS
* Diagnosis and maintenance support port image, syslog, ping command, etc
* The management function supports cli, web and SNMP management mode
* Alarm management supports one way relay alarm, ROMn management and trap alarm
* Support DHCP snooping, option 82, 802.1x
* Support hierarchical user management, ACL access control list, DDoS and port based MAC filtering/binding
* Port management supports port startup and disable, rate setting, 802.3x flow control and port name modification
* The Ethernet interface and serial data are provided with lightning protection. The lightning protection meets the standard of GB / t17626.5 (iec61000-4-5) short circuit current wave of 8 / 20 μ s and open circuit peak output voltage of 6kV
* Provide 2-way RS232 / 485 / 422 with optional interface and three data interfaces. RS232 supports 3-wire RS232 (TXD, RXD, GND)
* RS232 / 485 / 422 channel can transmit asynchronous self-adaptive serial port data from 0-115200 baud rate
* The equipment has its own web management platform, which can be upgraded online, and the working state of each slave can be managed at the host end
* It supports wide range AC / DC input (9v-48v), internal isolation, redundant dual power input, overload protection and anti reverse connection protection
* Meet the requirements of industrial class IV electromagnetic compatibility
* Super lightning protection function: anti lightning, anti induction high voltage, anti surge, no fan, high efficiency heat dissipation, reduce repair time
* IP 40 shell protection grade, able to withstand the test of harsh environment, guide rail or wall mounted installation
* Wide temperature type: working temperature - 40 ℃ ~ + 85 ℃
