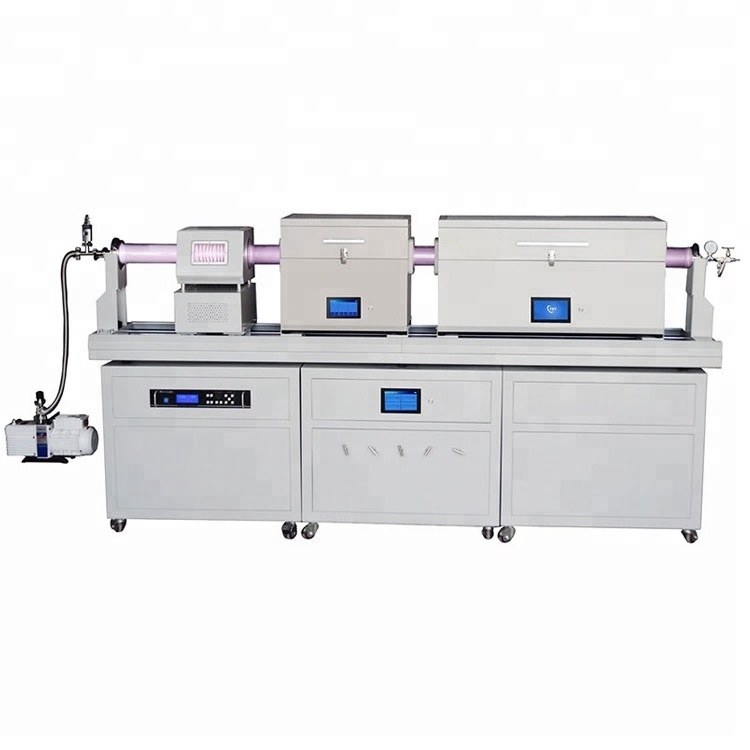

Nano diamond coating machine/PECVD system furnace hpht diamond pvd coating machine for sale
CY-OTF-1200X-5-III-D4 is a dual tube and three-zone tube furnace with max. working temperature of 1200°C for growing film on metallic foil by CVD, especially designed for make graphene and flexible electrode for solar or battery electrode.
Product specifications of diamond coating machine
| Features |
Dual quartz tube: 130 mm dia (5"), outside tube suspended by 101 mm dia (4") tube inside. Metallic foil will be wrapped inside tube surface for CVD reaction. Vacuum sealing flanges for dual tube, which allow reactive gas go through between two tube ( 20mm space ) for reaction, and Forced air can go though center tube for fast cooling. Max. Working Temperature: 1200°C Valve and vacuum gauge are included |
| Furnace structure |
Three heating zones: (900mm, 36" in total) Zone 1: 229mm (9") Zone 2: 457mm (18.0") Zone 3: 229 mm (9") Max. 25" (625 mm) long with +/- 1°C accuracy if set three zones at the same temperature. Three precision temperature controllers with 30 segment programmable and +/- 1° C accuracy. Max. Working Temperature: 1200°C Continuous Working Temperature: 1100°C Heating Rate: <= 20°C /min Constant Temperature Zone: 25" (625 mm) length (Three zones are heating at equal temperature simultaneously) |
| Power |
AC 208-240V Single Phase, 50/60 Hz (40A breaker required). 7 KW Max. Powder cord is included without plug. CE certified |
| Processing Tubes |
Two High purity Fused Quartz Tubes included Outside tube: 130mm O.D. x 122 mm I.D. x 1480 mm Inside tube: 102mm O.D. x 94 mm I.D. x 1540 mm |
| Vacuum sealed flanges |
One pair of flange made of SS304, which seals tightly between tubes by two high temperature O-rings (10-2 by mechanical pump and 10-5 by molecular pump). The flange is built with water cooling jacket. When working temperature > 900°C it is required to use cooling water. You may either use tap water or use our chillingwater circulation at picture below. One KF25 adapter is installed on left flange to connect a vacuum pump. One stainless steel needle valve is installed on right flange (please choose connector at picture below before order) Optional.You may consider to order a Compact Liquid Vaporization Systems for better CVD |
| Optional |
Copper Foil for Graphene Growth (150m length x 150mm width x 25um thickness) |
| Furnace Dimension | 1030 x 430 x 580 mm ( not included flange and tube ) |
| Net Weight | about 90 kg |
| Shipping package size after crating | 65x45x35 " |
| Warranty | One year limited warranty for electrical parts. (Consumable parts such as processing tubes, o-rings and heating elements are not covered by the warranty, please order the replacement at related products below.) |
| Compliance | CE Certified |
| Warning |
For the use of flammable gases such as H2 and CH4, please consult with technical team for safety measures. We strongly suggest that the furnace needs to be operated inside a fume hood with H 2 / CH 4 leaking detector installed. |
