Quick Details
-
Brand Name:
-
YIDAMA-TONGLE
-
Model Number:
-
TAJSC
-
Place of Origin:
-
Guangdong, China
-
Function:
-
USB Serial Cable
-
Product Name:
-
AJ TTL Serial Cable
-
Application:
-
Computer, Multimedia, MP3/MP4 Player, Video Game Player, Mobile Phone
-
Compatible:
-
USB 3.0 USB 2.0 USB 1.1
-
Cable Type:
-
USB Cable
-
Chip:
-
CP2102
-
Interface:
-
3.3V TTL
-
Connector A:
-
USB Male
-
Connector B:
-
AJ Plugs
-
System Support:
-
Win7/8/10/XP/Android/mac os/linux/vista/wince
Quick Details
-
USB Type:
-
Standard
-
Material:
-
PVC, Metal, Tinned Copper
-
Connector:
-
USB 2.0 Connector
-
Brand Name:
-
YIDAMA-TONGLE
-
Model Number:
-
TAJSC
-
Place of Origin:
-
Guangdong, China
-
Function:
-
USB Serial Cable
-
Product Name:
-
AJ TTL Serial Cable
-
Application:
-
Computer, Multimedia, MP3/MP4 Player, Video Game Player, Mobile Phone
-
Compatible:
-
USB 3.0 USB 2.0 USB 1.1
-
Cable Type:
-
USB Cable
-
Chip:
-
CP2102
-
Interface:
-
3.3V TTL
-
Connector A:
-
USB Male
-
Connector B:
-
AJ Plugs
-
System Support:
-
Win7/8/10/XP/Android/mac os/linux/vista/wince
Product Description

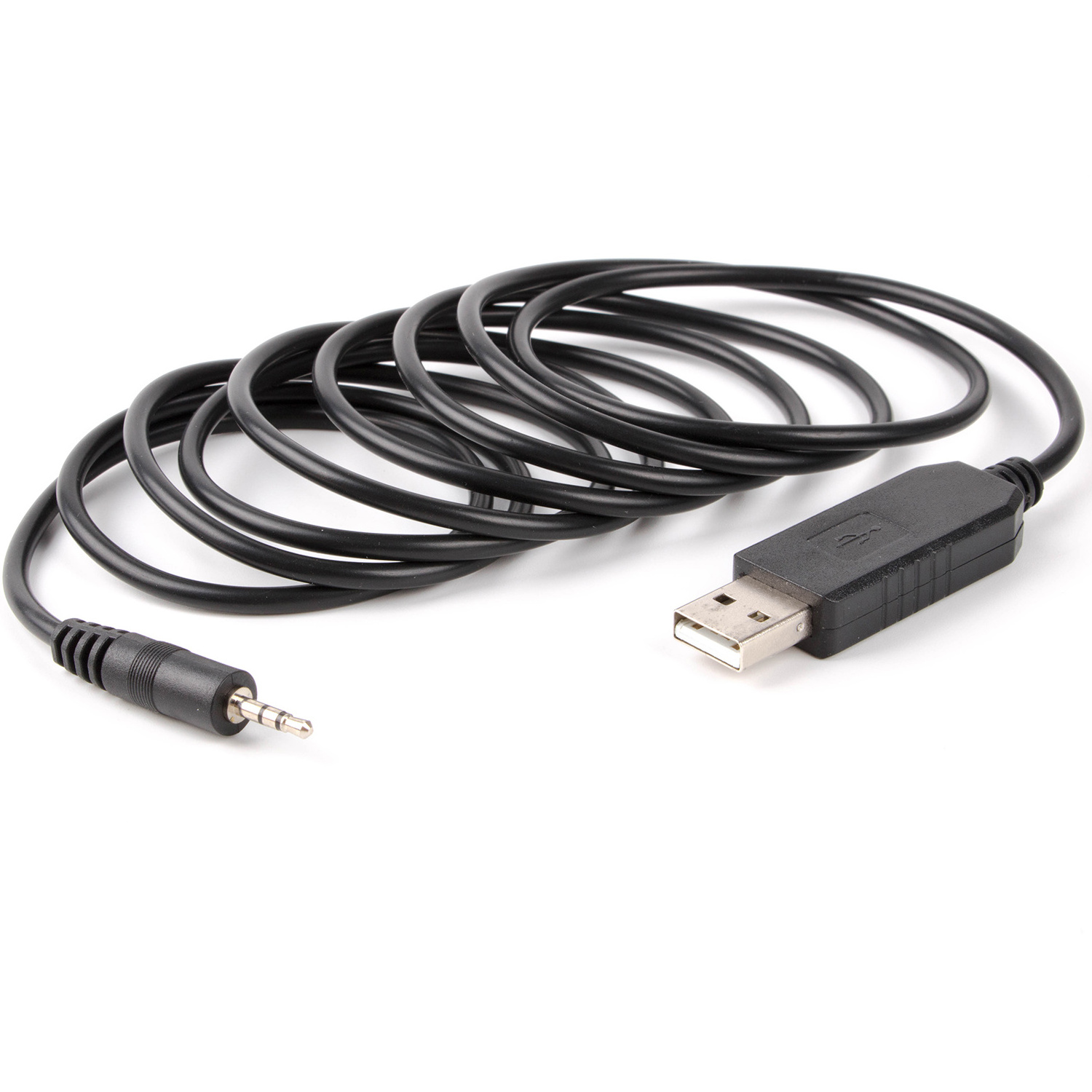

Wholesale CP2102 USB to UART TTL TRS 3.5mm 2.5mm Stereo Audio Jack Plug TTL 3.3V Serial Programming Cable
Product: USB
serial converter cable
Connector: USB 2.0 A Male / TRS 3.5mm 2.5mm Audio Jack
Chipset: Original USA Silicon Labs/CP2102 chip
Length: standard 1.8m or customized
Application: Computer, Multimedia , MP3 / MP4 Player,Video Game Player,Mobile Phone, etc
Logic level: 3.3V
Compatible with USB 3.0, USB 2.0, and USB 1.1 full speed 12 Mbps
Data transfer rate up to 230.4 Kb/s
Output signal for audio jack connectors : RXD,TXD,GND,VCC or customized
Tip-RX,Ring-TX,Sleeve-GND as standard pinout.
Connector: USB 2.0 A Male / TRS 3.5mm 2.5mm Audio Jack
Chipset: Original USA Silicon Labs/CP2102 chip
Length: standard 1.8m or customized
Application: Computer, Multimedia , MP3 / MP4 Player,Video Game Player,Mobile Phone, etc
Logic level: 3.3V
Compatible with USB 3.0, USB 2.0, and USB 1.1 full speed 12 Mbps
Data transfer rate up to 230.4 Kb/s
Output signal for audio jack connectors : RXD,TXD,GND,VCC or customized
Tip-RX,Ring-TX,Sleeve-GND as standard pinout.
We can also customize this pinout : Tip-TXD, Ring-RXD, Sleeve-GND
1.8m,OD=3.8mm,28*3C
USB serial transferring speed up to 1Mbps
Support Android, Win 7/8/10, XP, 2000, Linux, Mac OS,Vista
Support EEPROM, support Vendor ID re-write,support Mprog3.5
CE RoHS compliance
1.8m,OD=3.8mm,28*3C
USB serial transferring speed up to 1Mbps
Support Android, Win 7/8/10, XP, 2000, Linux, Mac OS,Vista
Support EEPROM, support Vendor ID re-write,support Mprog3.5
CE RoHS compliance
Supporting Operating System: Win 7/8/10, 2000, Linux, Mac OS,Android,Vista.
Drivers are available which allow USB devices to work with the following operating systems:
* For Windows 8 x32
* For Windows 8 x64
* For Windows Server 2008 R2 x64
* For Windows 7 x32
* For Windows 7 x64
* For Windows Server 2008
* For Windows Server 2008 x64
* For Windows Vista x32
* For Windows Vista x64
* For Windows Server 2003 x32
* For Windows Server 2003 x64
* For Windows XP x32
* For Windows XP x64
* For Windows ME
* For Windows 98
* For Linux
* For Mac OS X
* For Mac OS 9
* For Mac OS 8
* For Windows CE.NET (Version 4.2 and greater)
* For Android
* For windows 10
* For Windows 8 x32
* For Windows 8 x64
* For Windows Server 2008 R2 x64
* For Windows 7 x32
* For Windows 7 x64
* For Windows Server 2008
* For Windows Server 2008 x64
* For Windows Vista x32
* For Windows Vista x64
* For Windows Server 2003 x32
* For Windows Server 2003 x64
* For Windows XP x32
* For Windows XP x64
* For Windows ME
* For Windows 98
* For Linux
* For Mac OS X
* For Mac OS 9
* For Mac OS 8
* For Windows CE.NET (Version 4.2 and greater)
* For Android
* For windows 10
Driver Downloading:
https://www.silabs.com/products/development-tools/software/usb-to-uart-bridge-vcp-drivers
Specification
|
item
|
value
|
|
Type
|
USB Cable
|
|
Use
|
Computer, Multimedia, MP3 / MP4 Player,Video Game Player,Mobile Phone, etc
|
|
Brand Name
|
YIDAMA-TONGLE
|
|
Model Number
|
TAJSC
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
USB Type
|
Standard
|
|
Material
|
PVC, Tinned Copper
|
|
Connectors
|
USB 2.0 Connector
|
|
Jacket
|
PVC
|
|
Products Status
|
Stock
|
|
Shielding
|
Braid
|
|
Conductor
|
Tinned Copper
|
|
Function
|
Date Transmission
|
|
Color
|
Black
|
Packing & Delivery
For sample order, PE bag,then in box
For bulk order, PE bag, then in carton
