1BBL 200L 2BBL 250L 300L Nano Brewhouse Micro Beer Brewing System Turnkey Brewery Equipment with Conical Fermenters

1BBL 200L 2BBL 250L 300L Nano Brewhouse Micro Beer Brewing System Turnkey Brewery Equipment with Conical Fermenters

FOB Reference Price: Get Latest Price

≥1 Sets

US $6500

≥3 Sets

US $5000

≥5 Sets

US $4000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 25KW, 38KW, 56KW, ccordingly

Dimension(L*W*H):: 2850*1500*1805mm

Weight:: 650 KG

Marketing Type:: Hot Product 2023

Product name:: Brewery Equipment

Material:: 304 Stainless Steel

Capacity:: 100L~5000L

Control system:: PID

Heating way:: Steam Electric Heating Beer Brewing Equipment

Cooling way:: Dimple Jacket Plate

Cleaning way:: CIP Cleaning Ball

Thickness:: 2-3mm / Inside:3.0mm Outside:2mm

Key words:: Micro Brewery Plant

Function:: Brewing Beer Brewing Equipment

Quick Details

Place of Origin:: Shandong, China

Brand Name:: CARRY

Voltage:: 220V, 230V, 380V, 50HZ, 60HZ, accordingly

Power:: 25KW, 38KW, 56KW, ccordingly

Dimension(L*W*H):: 2850*1500*1805mm

Weight:: 650 KG

Marketing Type:: Hot Product 2023

Product name:: Brewery Equipment

Material:: 304 Stainless Steel

Capacity:: 100L~5000L

Control system:: PID

Heating way:: Steam Electric Heating Beer Brewing Equipment

Cooling way:: Dimple Jacket Plate

Cleaning way:: CIP Cleaning Ball

Thickness:: 2-3mm / Inside:3.0mm Outside:2mm

Key words:: Micro Brewery Plant

Function:: Brewing Beer Brewing Equipment

1BBL 200L 2BBL 250L 300L Nano Brewhouse Micro Beer Brewing System Turnkey Brewery Equipment with Conical Fermenters

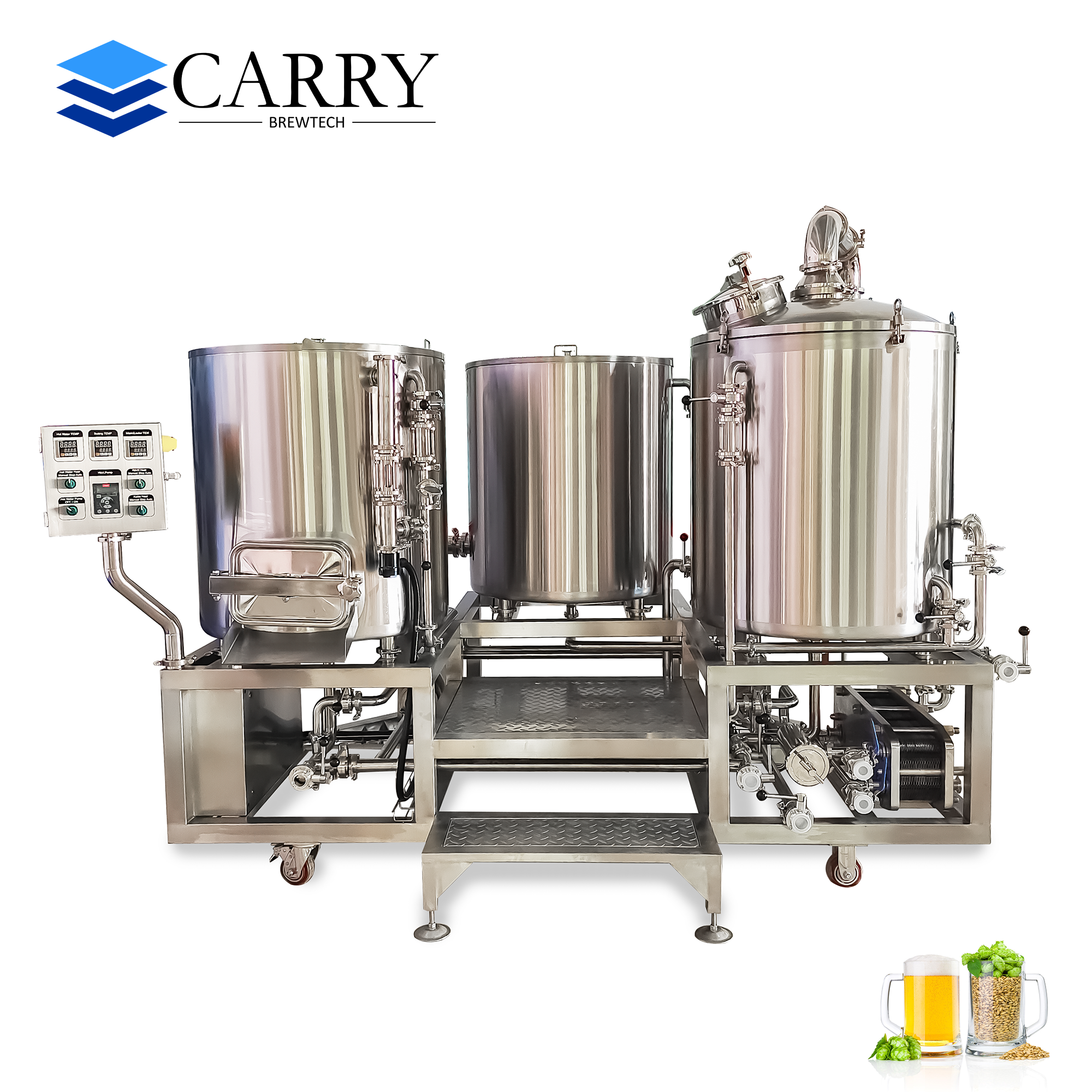

Mash+Lauter Tank+ Kettle+Whirlpool Tank+Hot Water Tank

The function of beer brewhouse is processing the grist and water into the wort which is ready for fermentation. We offers varying levels of automation and customization of two, three and four vessel brew house configurations. We focus on the design and structure of the brew house, which is the reason why we have to confirm all drawings of the equipment at the first beginning. All auxiliary equipment can be added or removed according to your requirements. Platform can be chosen.

Product Parameters

Beer Brewhouse	Combination	Two Vessel Brewhouse	Mash/Lauter , Boiling/Whirlpool Tun or Customized
				Three Vessel Brewhouse	Mash, Lauter, Boiling/Whirlpool Tun or Customized
				Four Vessel Brewhouse	Mash,Lauter, Boiling,Whirlpool Tun or Customized
		Material	SUS304, SUS316, etc
		Heating Method	Steam Heating Method	It can provide uniform heating and temperature is easy control, which will not scorch the wort. And it need extra steam boiler.
				Direct Fire Heating	It need change the structure of brewhouse and certain premises height is necessary. (Fire room install under the bottom of kettle tank)
				Electric Heating	Most economic way compare with other heating method, but there have a risk to scorch the wort
		Process	Do acid wahsing and passivation to 0.2~0.4μm
		Thickness	Interior Shell:3mm, Exterior Shell 2mm
		Basic Configuraton	Grain rake with spent grain dozer, stainless steel manhole, wort grant, full stainless steel heat exchanger, pumps and valves etc
Certificate	CE/ISO
Capacity	100L, 1BBL, 200L, 250, 300L, 3BBL, 500L, 5BBL, 800L, 1000L, 1500L, 2000L, etc.
Warranty	Three-year warranty

Brewhouse Parts

All the vessels we manufacture are 100% Argon Protecting Welded. We have the most experienced worker to manufacture all the equipment. The thickness of the vessels shell is depend on the volume, range from 2.0mm to 5.0mm. All interial surface is polished to 0.4μm to prevent the propagation of bacteria, and pickling passivated by our skilled workers. Really easy for maintaining and cleaning, no rusting is acceptable for our vessels. All welding seams are polished .

Beer fermenter tank

The needs of each customer are different. If you are interested, you can leave your email address, and we will provide more details as soon as possible.
