Quick Details
-
Model Number:
-
HIMS972
-
Place of Origin:
-
Jiangsu, China
-
Sample:
-
serum, plasma, whole blood, cerebrospinal fluid and dilute urine
-
Measuring speed:
-
≤25s
-
Analysis Method:
-
ion selective electrode (ISE)
-
Sample volume:
-
60-300ul (3 parameters to 11 parameters)
-
Sample position:
-
35 positions (including 1 QC)
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Brand Name:
-
Healicom
-
Model Number:
-
HIMS972
-
Place of Origin:
-
Jiangsu, China
-
Sample:
-
serum, plasma, whole blood, cerebrospinal fluid and dilute urine
-
Measuring speed:
-
≤25s
-
Analysis Method:
-
ion selective electrode (ISE)
-
Sample volume:
-
60-300ul (3 parameters to 11 parameters)
-
Sample position:
-
35 positions (including 1 QC)
Products Description

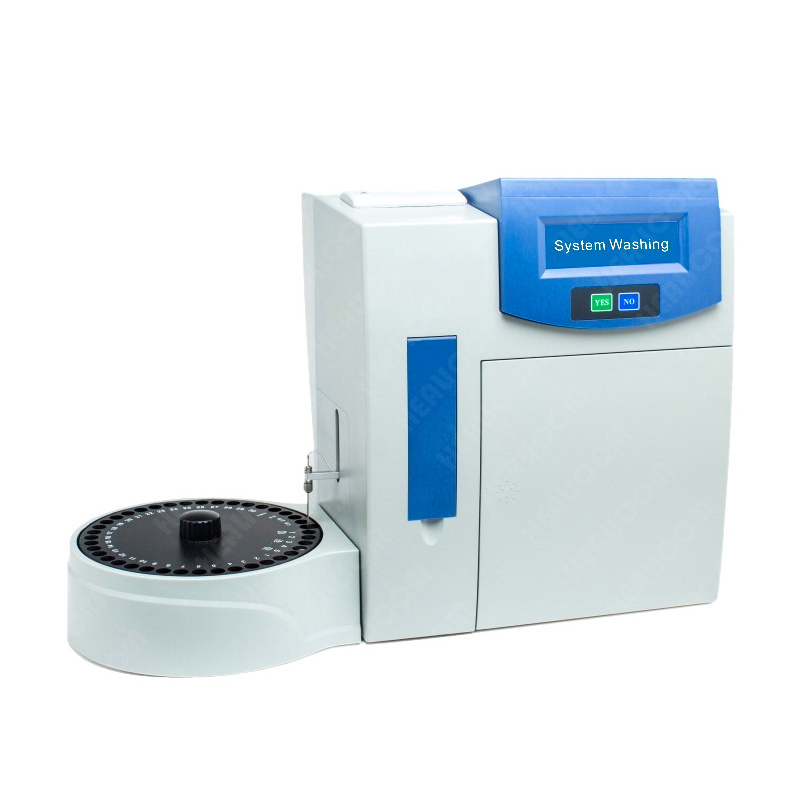

HIMS972 Portable Automatic Electrolyte Analyzer Machine
• Simple YES/NO prompted operation
• High accurate and long life electrode and TCO2 sensor
• Sleep mode to reduce reagent consumption
• Rapid test speed of 80 tests per hour
• Minimum sample volume is 60ul
• Individual reagent to avoid waste
• Option: Sample tray
Parameter configurations
1. K, Na, Cl
2. K, Na, Cl, TCO2
3. K, Na, Cl, iCa, nCa, TCa, pH
4. K, Na, Cl,iCa, nCa, TCa, pH, TCO2, AG
5. K, Na, Cl, Li
6. K, Na, Cl, iCa, nCa, TCa, pH, Li
7. K, Na, Cl,iCa, nCa, TCa, pH, Li, TCO2, AG
8. K, Na, Cl,iCa, nCa, TCa, pH, Mg, TCO2, AG
9. K, Na, Cl,iCa, nCa, TCa, pH, Li, Mg, TCO2, AG
|
Technical Specifications
|
|
|
|
Sample
|
serum, plasma, whole blood, cerebrospinal fluid and dilute urine
|
|
|
Measuring speed
|
≤25s
|
|
|
Analysis Method
|
ion selective electrode (ISE)
|
|
|
Sample volume
|
60-300ul (3 parameters to 11 parameters)
|
|
|
Sample position
|
35 positions (including 1 QC)
|
|
|
Storage
|
up to 10,000 test results
|
|
|
Printer
|
Internal thermal printer
|
|
|
Interface
|
RS232 port
|
|
|
Working environment
|
Temperature: 5-40℃
Relative Humidity: ≤ 80 %
Atmospheric pressure: (86~106) kPa
|
|
|
Power supply
|
220V±20V, 50-60Hz
|
|
|
Power
|
≤120W
|
|
|
Dimension
|
380mm*270mm*400mm
|
|
|
Net weight
|
8Kg
|
|
Main Features
• Automatic electric potential tracking and correcting software to ensure the stable performance.
• Automatically detect and filter tiny bubbles to avoid clog and ensure accurate measurement.
• Real-time diagnostic of system working status. Waste liquid automatic detection and alarming.
• Automatic calibration and two-point correction to adjust slope and intercept.
• Wave theory flushing method and direct flushing pipe method to avoid block and crossed contamination.
• Power failure protection to avoid data losing, data storage could be extended to more than 20,000.
• Available to power off any time, therefore reduce reagent consumption, suitable for any hospitals.
