Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
China
-
Brand Name:
-
Sanco cable
-
Model Number:
-
VV Series
-
Product name:
-
4Cores Fire-resistant Underground Armoured PVC Insulated Power Cable
-
Conductor:
-
Aluminum/Copper
-
Material:
-
Aluminum/Copper
-
Executive Standard:
-
GB/T12706-2008, GT/T19666-2005
-
Color:
-
As Requested, black, red, yellow
-
Insulation:
-
PVC insulation
-
Long term max. temperature:
-
No More Than 70 Degree
-
Armored:
-
Steel tape armored/ Steel wire armored
Quick Details
-
Insulation Material:
-
PVC
-
Application:
-
Underground
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
China
-
Brand Name:
-
Sanco cable
-
Model Number:
-
VV Series
-
Product name:
-
4Cores Fire-resistant Underground Armoured PVC Insulated Power Cable
-
Conductor:
-
Aluminum/Copper
-
Material:
-
Aluminum/Copper
-
Executive Standard:
-
GB/T12706-2008, GT/T19666-2005
-
Color:
-
As Requested, black, red, yellow
-
Insulation:
-
PVC insulation
-
Long term max. temperature:
-
No More Than 70 Degree
-
Armored:
-
Steel tape armored/ Steel wire armored

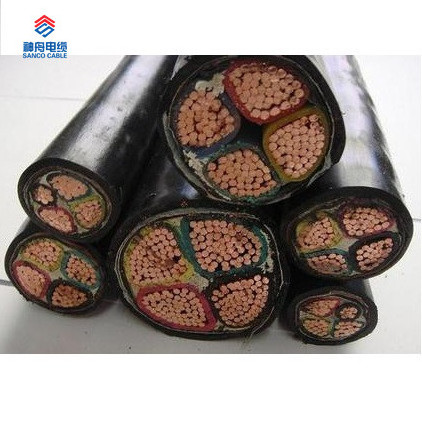

4Cores Fire-resistant Underground Armoured PVC Insulated Power Cable
Application: It is used to transmit and distribute power on the power line of AC rated voltage 0.6/1kv or less
Using Conditions:
1. Long-term Max Temperature is no more than 70 degree, temperature of cable conductor shall be no more than 160 degree during short circuit, the longest lasting time is no more than 5 seconds.
2. Environment temperature for installation is no less than 0 degree.
3.Allowed bending radius for installation see the fllowding table
| Item | Single core cable | Three core cable | Soft cable | |||
| Non-armored | Armored | Non-armored | Armored | Non-armored | ||
| Min.Bending radius for installation | 20D | 15D | 15D | 12D | 10D | |
|
Min.Bending radius of near connection box and terminal cable (bending cables to control carefully, use patterned guide plate) |
15D | 12D | 12D | 10D | 8D | |
Note :D is outer diameter of the cable
|
Type |
Name |
Application |
|
VV, VLV |
PVC insulated PVC sheathed power cable |
To be laid indoors, in tunnels and pipelines, the cable can not bear external pressure and mechanical force from outside |
|
ZC-VV, Z-VLV |
power cable with PVC insulation, PVC sheath, Flame Retardant Category C |
|
|
VVR |
PVC insulated PVC sheathed soft power cable |
To be laid fixedly on the soft occasion |
|
ZC-VVR |
power cable with PVC insulation, PVC sheath, Flame Retardant Category C |
|
|
VVV22, VLV22 |
PVC insulated steel tape armored PVC sheathed power cable |
To be laid indoors, in tunnels and pipelines, the cable can bear a certain external pressure and other force from outside |
|
ZC-VV22,ZC-VLV22 |
power cable with PVC insulation, PVC sheath, Flame Retardant Category C |
|
|
VV32, VLV32 |
PVC insulated thin steel wire armored PVC sheathed Power cable |
To be laid indoors, in mines and in water, the cable can bear considerable pulling force |
|
ZC-VV32, ZC-VLV32 |
power cable with PVC insulation, steel wire armoring, PVC sheath, Flame Retardant Category C |
|
|
VV42, VLV42 |
PVC insulated thick steel wire armored PVC sheathed Power cable |
To be laid in shafts and underwater and other vertical places, the cable can bear considerable radial pulling force. |
|
ZC-VV42, ZC-VLV42 |
power cable with PVC insulation, heavy steel wire armoring, PVC sheath, Flame Retardant Category C |
Noted :
1. single core armored cable is only use for D.C system, if for A.C system, non-magnetic material shall be adopted as armored layer or using magnetic isolation
2. We also product five cores cable with round conductor structure of fan-shaped structure according to the requirement of the customer.
