- Product Details
- {{item.text}}
Quick Details
-
Power:
-
4KW
-
Table Size:
-
2400*1170
-
Overall Dimensions:
-
2700*1170*1580
-
Weight:
-
2000 kg
-
Min. Lifting Height:
-
6m
-
platform height max.:
-
15m
-
Certificate:
-
CE ISO
-
Maximum number of passengers:
-
2
-
Lifting speed:
-
6-9m/min
-
Turning radius:
-
0.15/2.85
-
wheelbase:
-
2.26m
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hengwang, Hengwang
-
Power:
-
4KW
-
Table Size:
-
2400*1170
-
Overall Dimensions:
-
2700*1170*1580
-
Weight:
-
2000 kg
-
Min. Lifting Height:
-
6m
-
platform height max.:
-
15m
-
Certificate:
-
CE ISO
-
Maximum number of passengers:
-
2
-
Lifting speed:
-
6-9m/min
-
Turning radius:
-
0.15/2.85
-
wheelbase:
-
2.26m

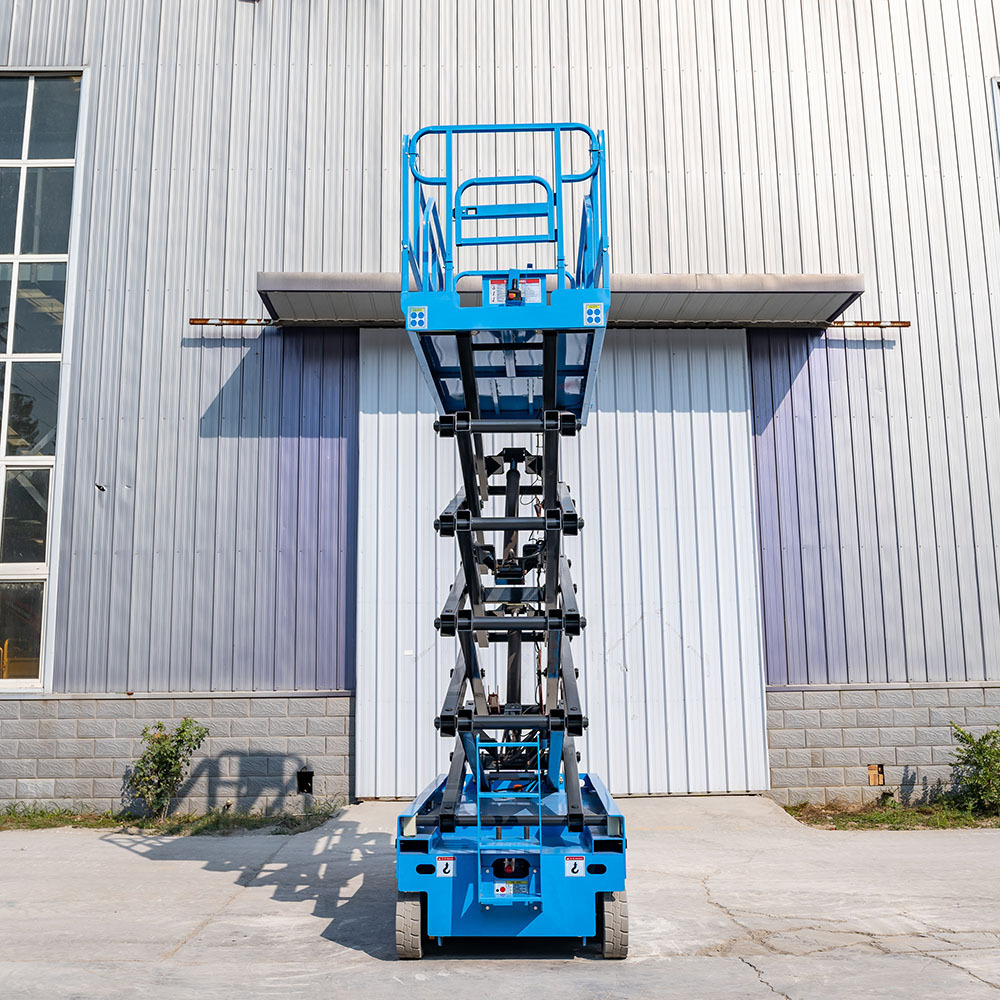

Hengwang Group New Arrival 6m 8m 10m 12m Self-propelled Mobile Overhead Hydraulic Jack Lift Table for Working at Height
|
Lift Mechanism
|
Scissor Lift
|
|
Lift Drive / Actuation
|
Hydraulic / Electric
|
|
Power
|
1kw-4kw
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Marketing Type
|
New Product 2024
|
|
Warranty of core components
|
18 months
|
|
Core Components
|
Pressure vessel, Bearing, Engine, PLC
|
|
Usage
|
Aerial Maintenance
|
|
Model
|
Working height(m)
|
Platform height(m)
|
Platform size(mm)
|
Load weight
|
Overall Dimension
(L*W*H) |
Power(kw)
|
Weight
(kg)
|
|
SJYZ0.3-6
|
6m
|
4m
|
2400*1170
|
320kg
|
2600*1170*1580
|
4.0
|
2000
|
|
SJYZ0.3-8
|
8m
|
6m
|
2400*1170
|
320kg
|
2600*1170*1700
|
4.0
|
2200
|
|
SJYZ0.3-10
|
10m
|
8m
|
2400*1170
|
320kg
|
2600*1170*1820
|
4.0
|
2400
|
|
SJYZ0.3-12
|
12m
|
10m
|
2400*1170
|
320kg
|
2600*1170*1940
|
4.0
|
2600
|
|
SJYZ0.3-14
|
14m
|
12m
|
2400*1170
|
320kg
|
3000*1400*1940
|
4.0
|
3400
|
