Quick Details
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Roof/Ground Mounting
-
Certificate:
-
CE/TUV/VDE/EN50549
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
BLUESUN
-
Model Number:
-
BSM15KH3-HY
-
Output Voltage (V):
-
230/400V 3 phase
-
Output Frequency:
-
50/60HZ
-
Work Time (h):
-
24hours
-
Product name:
-
solar system with lithium battery
-
Daily power generation:
-
75kwh (PSH=5hrs)
-
Required roof space:
-
50m2
-
Solar panel:
-
15kw mono solar panel
-
Inverter:
-
15kW hybrid Inverter
-
Battery:
-
48V 100Ah stacked LiFePo4
-
Battery capacity:
-
≥30kwh
-
Monitoring:
-
WIFI/RS232/RS485/CAN
-
Service:
-
Installation Guiding Support
-
Keyword:
-
all in one energy storage system
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lithium Ion
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Roof/Ground Mounting
-
Certificate:
-
CE/TUV/VDE/EN50549
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
BLUESUN
-
Model Number:
-
BSM15KH3-HY
-
Output Voltage (V):
-
230/400V 3 phase
-
Output Frequency:
-
50/60HZ
-
Work Time (h):
-
24hours
-
Product name:
-
solar system with lithium battery
-
Daily power generation:
-
75kwh (PSH=5hrs)
-
Required roof space:
-
50m2
-
Solar panel:
-
15kw mono solar panel
-
Inverter:
-
15kW hybrid Inverter
-
Battery:
-
48V 100Ah stacked LiFePo4
-
Battery capacity:
-
≥30kwh
-
Monitoring:
-
WIFI/RS232/RS485/CAN
-
Service:
-
Installation Guiding Support
-
Keyword:
-
all in one energy storage system
Product Description
|

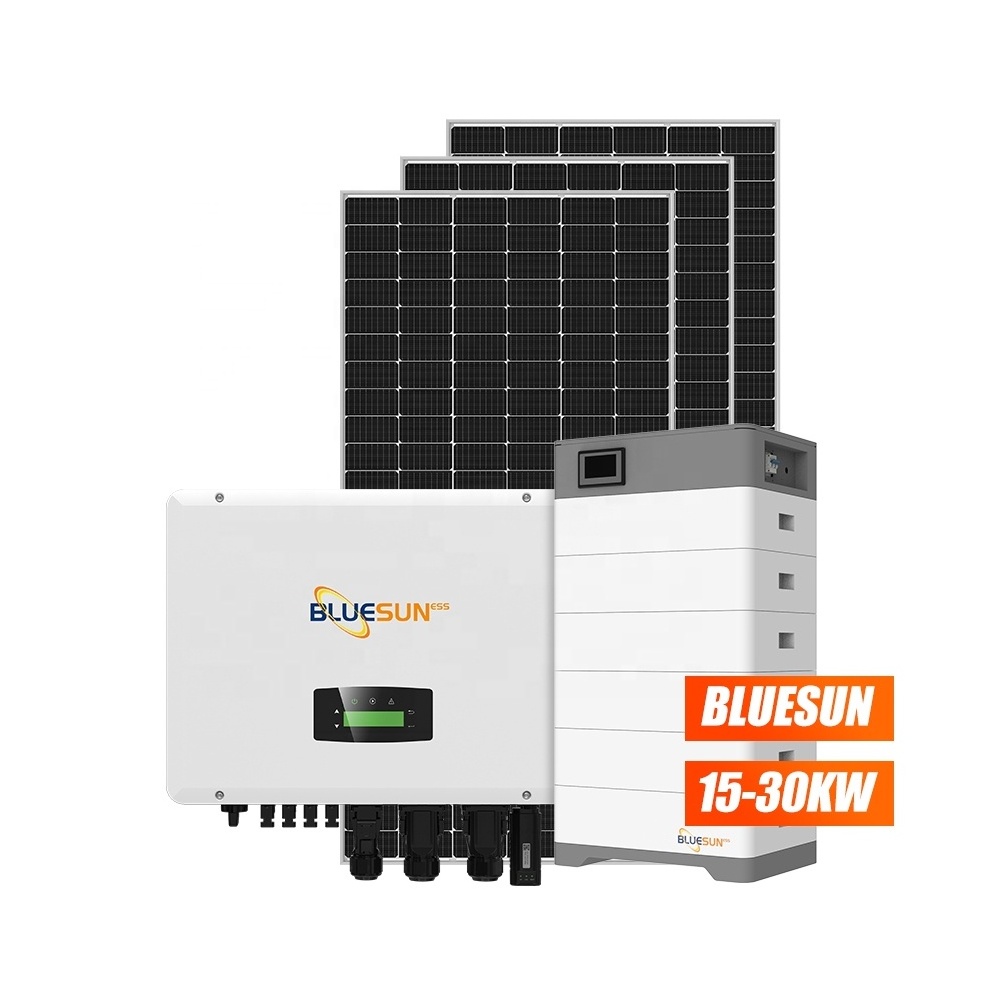

15KW Hybrid Solar Power System Configuration
|
|
|
|
|||
|
Item
|
Model
|
Description
|
Quantity
|
|||
|
1
|
Solar Panel
|
Half cut mono solar panel 560w
|
26 pcs
|
|||
|
2
|
Combiner Box
|
Optional
|
1 pc
|
|||
|
3
|
Lithium Battery or Lead Acid Battery
|
21.7kWh Stacked Battery
|
1 pcs
|
|||
|
4
|
Hybrid Inverter
|
15kva
|
1pc
|
|||
|
5
|
Mounting Support
|
Roof/Ground
|
1 set
|
|||
|
6
|
Cable
|
4mm² PV cable
|
200m
|
|||
|
7
|
Connector
|
Solar Connector
|
8 pairs
|
|||
|
8
|
Tools Bag
|
Solar Installation tools
|
1 set
|
|||
|
20KW Hybrid Solar Power System Configuration
|
|
|
|
|||
|
Item
|
Model
|
Description
|
Quantity
|
|||
|
1
|
Solar Panel
|
Half cut mono solar panel 560w
|
42 pcs
|
|||
|
2
|
Combiner Box
|
Optional
|
1 pc
|
|||
|
3
|
Lithium Battery or Lead Acid Battery
|
21.7kWh Stacked Battery
|
1pc
|
|||
|
4
|
Hybrid Inverter
|
20kva
|
1pc
|
|||
|
5
|
Mounting Support
|
Roof/Ground
|
1 set
|
|||
|
6
|
Cable
|
4mm² PV cable
|
200m
|
|||
|
7
|
Connector
|
Solar Connector
|
10 pairs
|
|||
|
8
|
Tools Bag
|
Solar Installation tools
|
1 set
|
|||
|
30KW Hybrid Solar Power System Configuration
|
|
|
|
|||
|
Item
|
Model
|
Description
|
Quantity
|
|||
|
1
|
Solar Panel
|
Half cut mono solar panel 560w
|
58 pcs
|
|||
|
2
|
Combiner Box
|
Optional
|
1 pc
|
|||
|
3
|
Lithium Battery or Lead Acid Battery
|
32.56kWh Stacked Battery
|
1pc
|
|||
|
4
|
Hybrid Inverter
|
30kva
|
1pc
|
|||
|
5
|
Mounting Support
|
Roof/Ground
|
1 set
|
|||
|
6
|
Cable
|
4mm² PV cable
|
300m
|
|||
|
7
|
Connector
|
Solar Connector
|
12 pairs
|
|||
|
8
|
Tools Bag
|
Solar Installation tools
|
1 set
|
|||
|
Kindly Reminder: The Above System Configuration For Initial Designing, The System Configuration Are Subject to Changing Depends on Your Final Installation Conditions and Requirements.
More Details Please Send Inquiry to Us
|
|
|
|
|||
Configuration Details
Mono Solar Panel
>BSM560M10-72HPH >Size:2278*1134*35mm >Application Class: A>IEC 61215 / IEC 61730 /CE
>25 Years Warranty
PV Combiner Box
>Cross Section: 4mm2, 6mm2 Optional
>Rated Voltage:600VDC/1000VDC(TUV)
>Rated Current: 55A,70A
>Colors: Black For STD, Red Optional.
Hybrid Solar Inverter
> 15/20/30KW grid hybrid inverter
> 380v 50Hz three phase
> With WIFI+CT
> Built in MPPT controlle
Stackable Lithium Battery
> BSM48106HP
> 51.2V 106AH
>Battery cables + BMS high voltage box + base.
>Battery cables + BMS high voltage box + base.
PV Mounting System
> Residential Roof(Pitched Roof)
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system
PV Tools
>Disassembly Tool
Bluesun Factory
Bluesun Solar---is one of the solar power solution leading companies in China. Specializing in research and development of solar panel, lithium battery and BMS. Bluesun product has exported to more than 185 countries and regions since 2022. We devote ourselves to provide excellent solar solution.
