Quick Details
-
Dimension(L*W*H):
-
2000*1200*1800mm
-
Weight (KG):
-
470
-
Product Name:
-
wood crusher making sawdust grinding machine
-
Raw material:
-
wood,branch,tree log,etc
-
Keywords:
-
wood crusher machine
-
Capacity:
-
500kg/h-5000kg/h
-
After Warranty Service:
-
Online Support Video Technical Support
-
Color:
-
Customized Color
-
Sawdust size:
-
1mm to 20mm
-
Package:
-
standard wooden case
-
Engine:
-
electricity or diesel engine
Quick Details
-
Place of Origin:
-
Henan, China
-
Voltage:
-
380v/customized
-
Power:
-
18.5kw
-
Dimension(L*W*H):
-
2000*1200*1800mm
-
Weight (KG):
-
470
-
Product Name:
-
wood crusher making sawdust grinding machine
-
Raw material:
-
wood,branch,tree log,etc
-
Keywords:
-
wood crusher machine
-
Capacity:
-
500kg/h-5000kg/h
-
After Warranty Service:
-
Online Support Video Technical Support
-
Color:
-
Customized Color
-
Sawdust size:
-
1mm to 20mm
-
Package:
-
standard wooden case
-
Engine:
-
electricity or diesel engine
Product Overview
Industrial wood sawdust crusher is the special and highly efficient wood processing equipment which can process logs, wood sticks, tree branches and waste wood material into sawdust one time. The size of sawdust can be adjusted in range 1-10mm by changing screen. It is the necessary wood processing equipment for small and medium-sized enterprises and individual household.
Technical parameter
|
Model
|
HS600
|
HS700
|
HS800
|
|
Blades
|
4
|
6
|
8
|
|
Capacity
|
1t/h
|
2t/h
|
3t/h
|
|
Main rotor speed
|
550r/min
|
550r/min
|
600r/min
|
|
Power
|
18.5kw
|
30kw
|
37kw
|
|
Weight
|
515kg
|
715kg
|
1130kg
|
|
Size (mm)
|
2000*1200*1800
|
2100*1400*2000
|
2200*1500*2100
|
Details Images

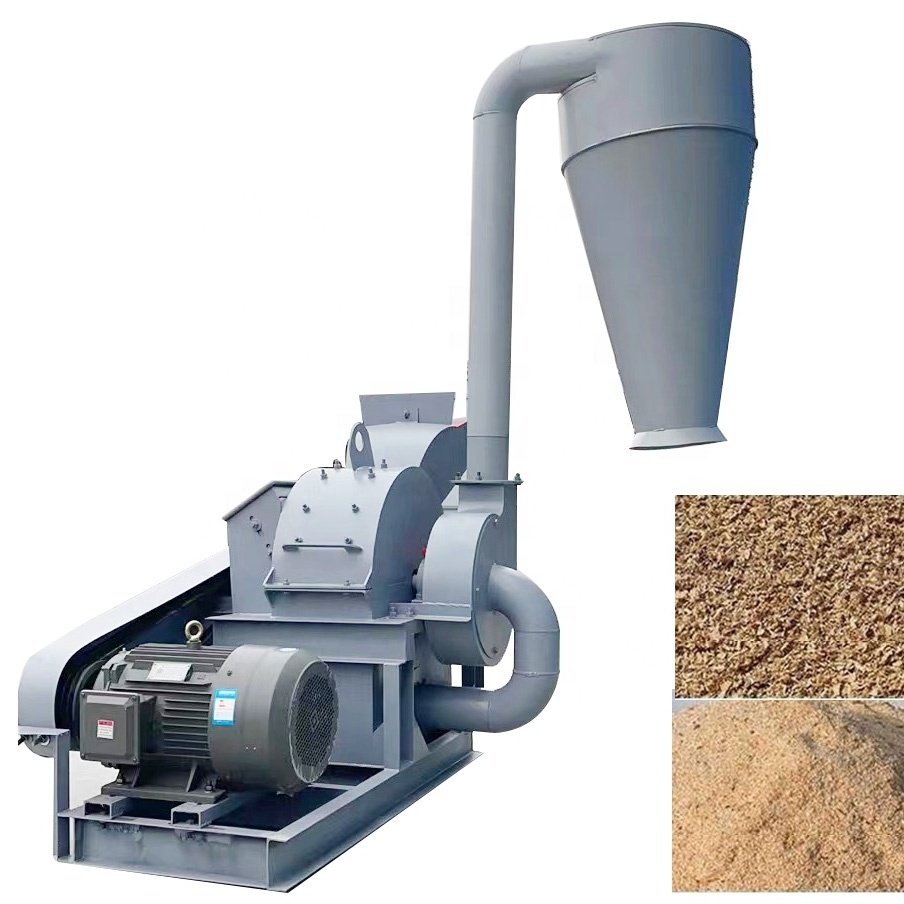

Wood crusher machine with cyclone
Features
1.Compact structure and considerable layout;
2.Easy to install,operate and maintain;
3.Product good quality sawdust and the size can be adjusted in range 1-10mm by changing screen(sieve);
4.Can Install the wheels, Cyclone and make other customized designs for customers;
5.Can use electrical motor/diesel motor according to customer's needs;
6.Small size , less space occupying,high production efficiency,low investment,high profit return.
Wood sawdust crusher machine without cyclone
Inside structures
Blades
Screen
The final sawdust can be used to make mushroom cultivation,biomass pellet, paper, pet net, and so on, so the wood crusher machine is widely used in many field, such as charcoal factory, biological power plant factory, sawmill incense factory, feed farms,mushrooms,edible fungus base, landscaping engineering, chemical engineering, etc
Packing & Shipping
Package
*For the small machine,they will packaged into standard wooden case
*For the large quantity and large machine,we will load it into 20ft container or 40ft container
*For the large quantity and large machine,we will load it into 20ft container or 40ft container
Delivery
*Delivery by sea
*Delivery by express
*Delivery to your agents' warehouse in China,then will offer you tracking number
*Delivery by express
*Delivery to your agents' warehouse in China,then will offer you tracking number
