Quick Details
-
Model Number:
-
BM-25
-
Place of Origin:
-
China
-
size:
-
345 x 60 x 135 mm
-
Material:
-
40 Chrome Steel Made Clamp
-
Operate Way:
-
Manual
-
Tonnage:
-
6 T
-
Throat Depth:
-
2.76" / 70 mm
-
Punching Capability:
-
Iron Plate 0.06" /1.5 mm
-
Configuration:
-
0.63"/16mm
-
Weight:
-
3.7 kg /8.16 lbs
-
Product Size:
-
13.58" x 2.36" x 5.31
-
Package Content:
-
1xHydraulic Hole Punch
Quick Details
-
No. of Holes:
-
More Holes
-
Type:
-
Heavy Duty Punch
-
Brand Name:
-
BAYM
-
Model Number:
-
BM-25
-
Place of Origin:
-
China
-
size:
-
345 x 60 x 135 mm
-
Material:
-
40 Chrome Steel Made Clamp
-
Operate Way:
-
Manual
-
Tonnage:
-
6 T
-
Throat Depth:
-
2.76" / 70 mm
-
Punching Capability:
-
Iron Plate 0.06" /1.5 mm
-
Configuration:
-
0.63"/16mm
-
Weight:
-
3.7 kg /8.16 lbs
-
Product Size:
-
13.58" x 2.36" x 5.31
-
Package Content:
-
1xHydraulic Hole Punch
* Punching Capacity:
The maximum pressure of the hydraulic hole punching machine can reach 6 tons. It can easily open holes on the iron plate within 0.06" / 1.5 mm and the stainless steel plate within 0.04" / 1 mm. Punched holes are smooth without burr.
* Complete Accessories: In order to meet different operating needs, the manual hole digger punch is equipped with 5 kinds of dies: 0.63" / 16 mm, 0.71" / 18 mm, 0.79" / 20 mm, 0.87" / 22 mm, 0.98" / 25 mm. One seal ring and hex wrench are included.
* Trouble-Free Usage: The 2.76" throat depth of the hydraulic punch greatly expands the range of distance, and the oil return bolt achieves fast pressure relief. Meanwhile, the ergonomic handle and auxiliary return rubber make the operation simple and labor-saving.
* Conveniently Carried: The hydraulic punching tool is integrally formed and super easy to carry. The weight is relatively light, only 8.16 lbs / 3.7 kg. You can take it easily regardless of site and location restrictions.
* Wide Application: Our manual hydraulic punch could be used for power construction, shipbuilding, road bridges, construction sites, and other industries to install and maintain the openings of wires, pipes, instrument switches, etc. It is suitable for multiple situations.
* Complete Accessories: In order to meet different operating needs, the manual hole digger punch is equipped with 5 kinds of dies: 0.63" / 16 mm, 0.71" / 18 mm, 0.79" / 20 mm, 0.87" / 22 mm, 0.98" / 25 mm. One seal ring and hex wrench are included.
* Trouble-Free Usage: The 2.76" throat depth of the hydraulic punch greatly expands the range of distance, and the oil return bolt achieves fast pressure relief. Meanwhile, the ergonomic handle and auxiliary return rubber make the operation simple and labor-saving.
* Conveniently Carried: The hydraulic punching tool is integrally formed and super easy to carry. The weight is relatively light, only 8.16 lbs / 3.7 kg. You can take it easily regardless of site and location restrictions.
* Wide Application: Our manual hydraulic punch could be used for power construction, shipbuilding, road bridges, construction sites, and other industries to install and maintain the openings of wires, pipes, instrument switches, etc. It is suitable for multiple situations.

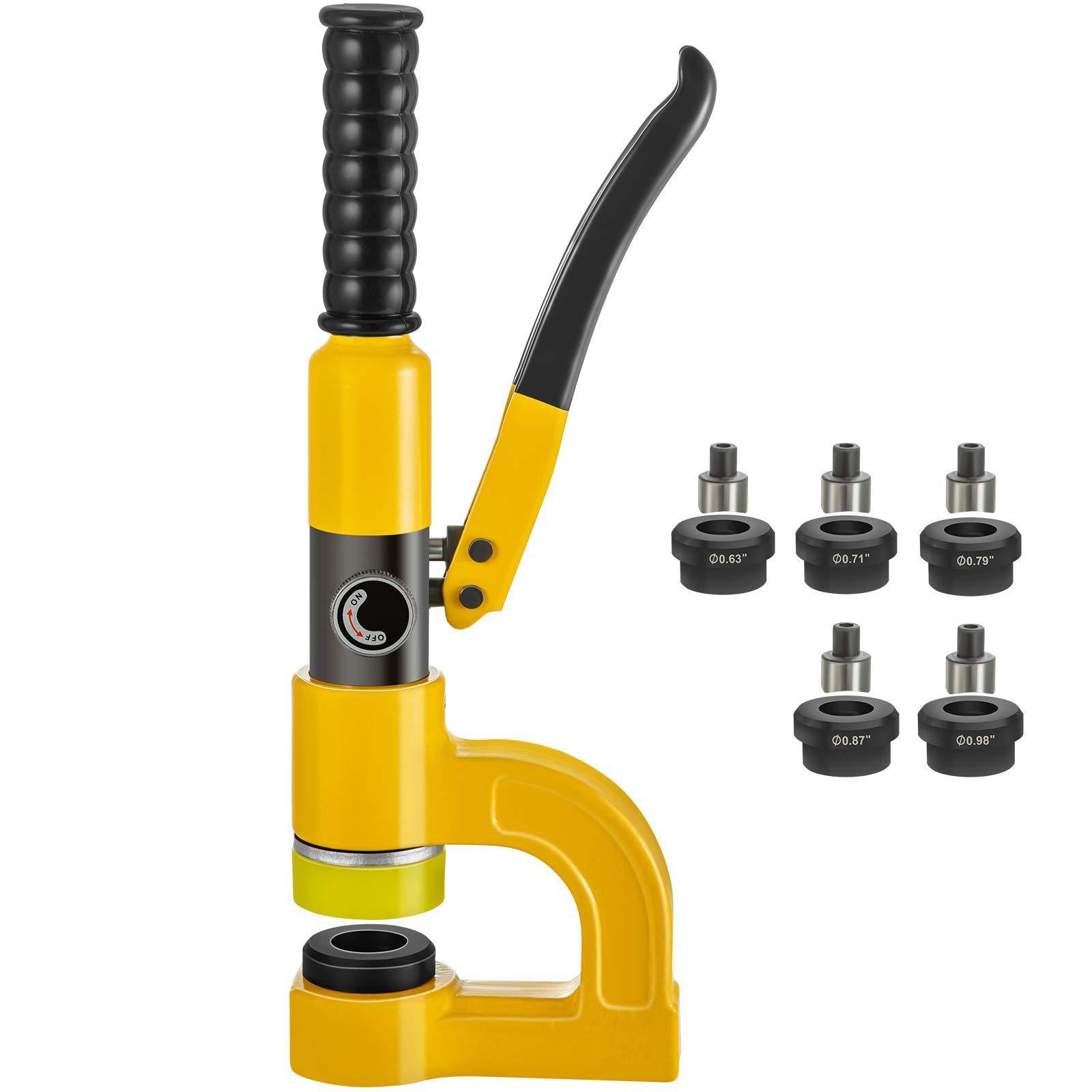

Hydraulic Hole Punching Machine
6 Tonnage & 5 Dies & Compact Design
With sufficient tonnage and artificial design, the hydraulic hole opener we offered is easy to operate, labor-saving, and fast.
Fit for iron plate within 0.06" and stainless steel plate within 0.04", it can be used for metallurgy, chemical, electronics,
shipbuilding, machinery, and other industries to punch holes in steel plates, iron plates, wires, pipes, instrument switches, etc.The processing surfaces are smooth and clean.
With sufficient tonnage and artificial design, the hydraulic hole opener we offered is easy to operate, labor-saving, and fast.
Fit for iron plate within 0.06" and stainless steel plate within 0.04", it can be used for metallurgy, chemical, electronics,
shipbuilding, machinery, and other industries to punch holes in steel plates, iron plates, wires, pipes, instrument switches, etc.The processing surfaces are smooth and clean.
Max Pressure 6 Ton
With sufficient tonnage, this hydraulic hole opener can easily open holes on the thickest 0.06" / 1.5 mm iron plate and the thickest 0.04" / 1 mm stainless steel plate.
5 PCS Punching Dies
The diameters of the 5 kinds of dies are 0.63" / 16 mm, 0.71" / 18 mm, 0.79" / 20 mm, 0.87" / 22 mm, 0.98" / 25mm. You can exchange dies and improve work efficiency significantly.
Simple Punching Process
The drilling position is at most 2.76" / 70 mm from the edge, mainly expanding the usable range. The oil return bolt adopts the lever principle, and the pressure can be relieved by pressing the switch quickly.
Humanized Design
The ring-shaped rubber handle increases the friction of the handgrip, and the upper die will automatically return to its original position under the action of rubber and piston, which is user-friendly.
Compact Structure
The hydraulic hole opener is compact in structure and small in size. The length of our product is only 13.58" / 135 mm, and the weight is merely 8.16 lbs / 3.7 kg, convenient to take and carry.
Wide Application
Our product is mainly applied to the stainless steel washbasins, power transmission panels, electric power boxes, steel plates, iron plates, and bridge plates to dig holes.
Q: Is OEM available?
A: Yes, OEM and customization are available. Also, we can provide label printing service.
Q: Are samples available?
A: Free samples are available while freight is chargeable.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after recieving the advance payment;
For the customized product, 15-30 days after receiving the advance payment.
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
