Quick Details
-
Piling Speed:
-
6-12m/min
-
Turning Angle:
-
360 degree
-
Suitable excavator:
-
20-35 Tons
-
Service:
-
OEM/ODM
-
Color:
-
Blue,Red, Yellow or as customers' request
-
Centrifugal Force:
-
300kn
-
Depth:
-
3-15m
-
Diameter:
-
0-300mm
-
Material:
-
45# Steel
Quick Details
-
Place of Origin:
-
China
-
Weight:
-
3800 kg
-
Product Name:
-
Hydraulic Pile Driver
-
Piling Speed:
-
6-12m/min
-
Turning Angle:
-
360 degree
-
Suitable excavator:
-
20-35 Tons
-
Service:
-
OEM/ODM
-
Color:
-
Blue,Red, Yellow or as customers' request
-
Centrifugal Force:
-
300kn
-
Depth:
-
3-15m
-
Diameter:
-
0-300mm
-
Material:
-
45# Steel

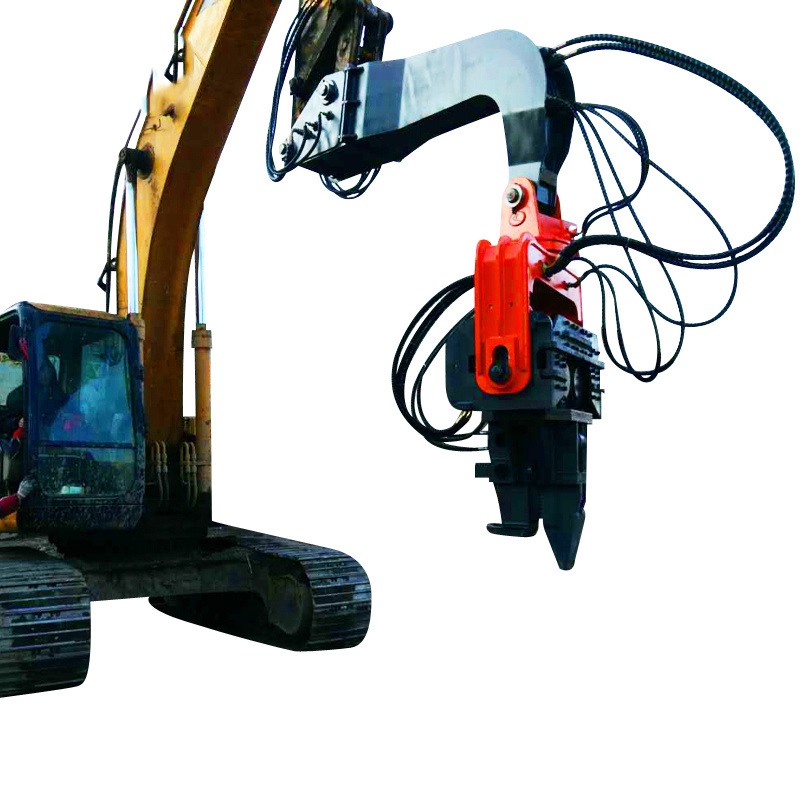

Excavator vibro hammers used hydraulic mini excavator pile driver
YG hydraulic pile driver/Hydraulic Vibro Hammer generate high-frequency vibrations of more than 2600-2800 times per minute, which can genetrate deep soil in an instant, and the strength is more than 20-45 tons.
Hydraulic pile driver is using its high frequency vibration to vibrate pile body with high acceleration to pass the
vertical vibration of mechanical produce to pile which leading to changes in the soil structure around the pile,
strength decrease. Soil around the piles become liquefaction to reduce frictional resistance between side of the
pile and the soil. Then using the excavator down force, vibrating pile hammer and pile body weight to sink pile
into the soil. When extracting piles, in the condition of vibration to pull out the pile by using excavator lift force.
Excitation force needed by pile driving machinery are comprehensive determined by site soil, soil condition,
moisture content and type of pile, construction.
Our vibratory hammer for excavator have been approved by ISO authority.It have four superior functions:easy operation and maintenance,Environment-friendly product,high efficiency of driving piles, long lifespan. it can be used for river-bank maintenance and marshland working wherever onshore and offshore piling job.
| Model | YG-VS250 | YG-VS330 | YG-VS400 | YG-VS450 | YG-VS500 |
| Vibration Frequency(Rpm) | 3000 | 3000 | 3000 | 3000 | 3000 |
| Vibrating Force(T) | 46.2 | 56.5 | 61.8 | 69.5 | 77 |
| Hydraulic System Operating Pressure(Bar) | 315 | 315 | 315 | 315 | 315 |
| Hydraulic System Flow Demand(Lpm) | 189 | 240 | 270 | 324 | 324 |
| Main Body Weight(T) | 1.7 | 1.8 | 2.15 | 2.2 | 2.3 |
| Apply to Excavator Weight(T) | 20-25 | 27-32 | 33-40 | 40-48 | 50-70 |
| Clip Mouth Weight(kg) | C17:520KG C19:550KG C30B:455KG C35E:530KG | ||||
| Assistance Arm Weight(kg) | A200C:750KG A200CK:755KG A250C:850KG A300C:950KG | ||||
Main feature of mini excavator mounted vibratory hammer
1) 360 degree rotation of the middle bracket
2) Various pile driving, sheet pile, pipe pile, H-beam, steel plate, etc.
3) Excellent mobility in narrow places compared with cranes
4) The high shear load of the heavy-duty elastomer cushion prevents vibration from being transmitted to the excavator.
5) Easy installation and control. Suitable for all kinds of workplaces, congested areas, under bridges, narrow roads, minimal noise in urban renewal.
Advantages of mini excavator mounted vibratory hammer
1. The hydraulic swing motor and gear are built in, which can effectively avoid oil pollution and collision, easy
gear replacement, tight fit, stable and durable.
2. The box body adopts an open structure to ensure the pressure balance inside the box and stabilize the heat
removal.
3, the use of high-performance imported damping rubber blocks, stable quality and long life.
4, the original imported hydraulic motor, stable performance, superior quality.
5. The nozzle cylinder is strong in thrust and pressure-maintaining, stable and reliable, ensuring that the pile body
is not loose and ensuring construction safety.
6. The material of the nozzle is made of imported wear plate, which has stable performance and long service life.
