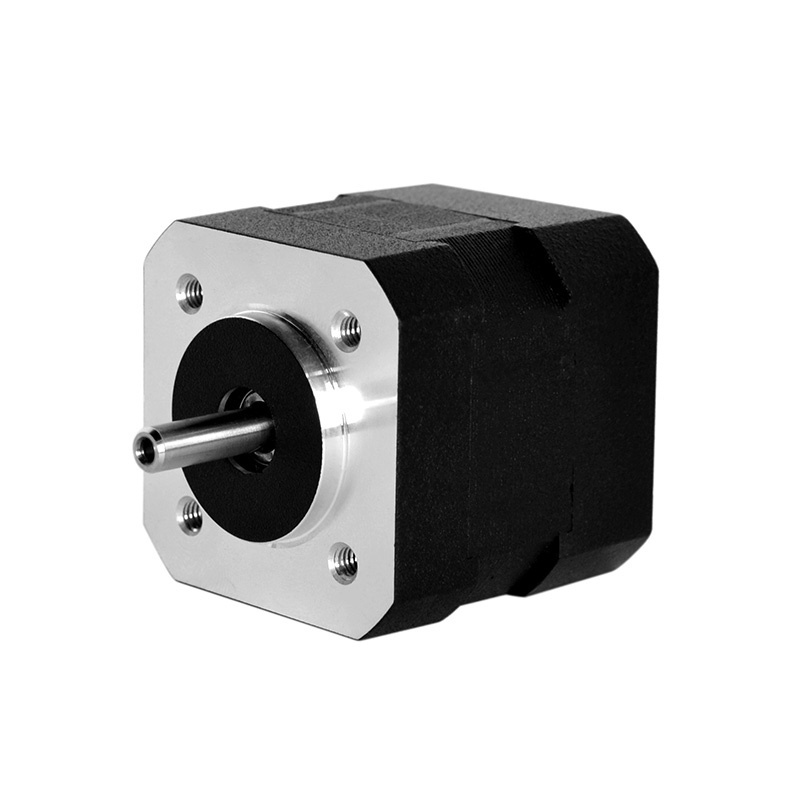

Factory Made 42mm Sensor Bldc Motor Speed Controller 4000rpm High Speeds Motor For 3d Printer And Robot

FOB Reference Price: Get Latest Price

≥2 Pieces

US $15

≥100 Pieces

US $11

≥1000 Pieces

US $9

Free Inquiry

Customized Request

Quick Details

Product Description

Brushless Dc Motor
Model					42BSA045B030X-00	42BSA060B030X-00	42BSA060C030X-00	42BSA075B030X-00	42BSA075D030X-00
Serial Number	parameter	unit	numerical value	numerical value	numerical value	numerical value	numerical value
1	Base size	mm	42	42	42	42	42
2	Phase number		3	3	3	3	3
3	Number of poles		8	8	8	8	8
4	Rated voltage	VDC	24	24	36	24	48
5	Rated torque	N.m	0.08	0.16	0.16	0.24	0.24
6	Rated speed	RPM	3000	3000	3000	3000	3000
7	Rated power	W	25	50	50	75	75
8	Rated current	A	1.5	3	2.1	4.8	2.4
9	Maximum speed	RPM	4000	4000	4000	4000	4000
10	Peak torque	N.m	0.16	0.32	0.32	0.48	0.48
11	Peak current	A	3.3	6.5	4.3	9.7	4.8
12	Back electromotive force	V/KRPM	4.5	4.3	6	4.4	8
13	Torque constant	Nm/A	0.06	0.06	0.06	0.03	0.03
14	Moment of inertia	gcm²	24	48	48	72	72
15	Motor length	mm	46	62	62	78	78
16	Front axle extension length	mm	24	24	24	24	24
17	Front axle extension diameter	mm	5	5	5	5	5
18	Insulation level		B（130℃）	B（130℃）	B（130℃）	B（130℃）	B（130℃）
19	Protection level		IP40	IP40	IP40	IP40	IP40
20	Weight	Kg	0.35	0.4	0.4	0.54	0.54

Specification

item	value
Warranty	3months-1year
Place of Origin	China
	Jiangsu
Brand Name	Moerte
Model Number	42BSA
Usage	BOAT, Car, Electric Bicycle, FAN, Home Appliance, Engraving machine
Type	Brushless Motor
Speed(RPM)	4000 RPM BLDC MOTOR
Continuous Current(A)	0.45A
Efficiency	IE 1
