Quick Details
-
Memory Type:
-
DDR4, Other
-
Graphics Card Type:
-
ARM Mali-G610 MP4 quad-core GPU
-
Brand Name:
-
Highpraise
-
Place of Origin:
-
Guangdong
-
CPU:
-
ROCKCHIP Rk3588
-
GPU:
-
Quad Core GPU Mail-T764
-
Memory 1:
-
Onboard 4G High-speed DDR4 (8G optional)
-
Memory 2:
-
8G EMMC, Maxium 32G
-
Size:
-
150mm*115mm
Quick Details
-
Maximum Ram Capacity:
-
32GB
-
Application:
-
Multi display, AI
-
Form Factor:
-
ARM
-
Memory Type:
-
DDR4, Other
-
Graphics Card Type:
-
ARM Mali-G610 MP4 quad-core GPU
-
Brand Name:
-
Highpraise
-
Place of Origin:
-
Guangdong
-
CPU:
-
ROCKCHIP Rk3588
-
GPU:
-
Quad Core GPU Mail-T764
-
Memory 1:
-
Onboard 4G High-speed DDR4 (8G optional)
-
Memory 2:
-
8G EMMC, Maxium 32G
-
Size:
-
150mm*115mm
Product Features

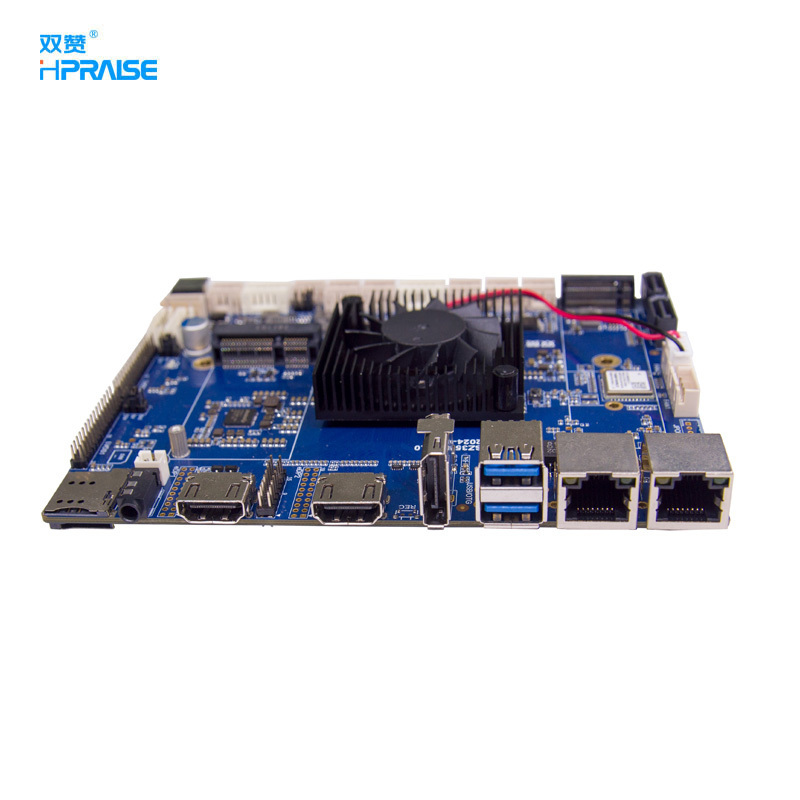

SZ3588 motherboard embedded Android 12 system, Rockchip 3588 octo-core 64 bit processor,
main frequency maximum to 2.4GHz, support 8K display. Support 4G 5G LTE module.
On board 4G 8G 16G 32G memory ,64G,128G,256G,512G EMMC optional
Dual LAN, Dual HDM I, HDM I-IN, support multi display.
Rich interface,support developing many industrial device machine equipment.
Like AI kiosk、8K advertising display、Cash register、IoT、Medical equipment etc.
|
Size
|
|
135mm×102mm
|
|
|
|||
|
CPU
|
|
Rockchip RK3588 Octa-core 64-bit (4×Cortex-A76+4×Cortex-A55),
8nm advanced process, Max 2.4GHz
|
|
|
|||
|
GPU
|
|
ARM Mali-G610 MP4 quad-core GPU
Supports OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS |
|
|
|||
|
Memory
|
|
On-board 4G LPDDR4 dual-channel high-speed memory
(optional 8G/16G/32G)）
|
|
|
|||
|
Built-in Storage
|
|
On-board 32G EMMC 5.1 high-speed storage (optional MAX.128G)
1 TF card slot, Support MAX.128G TF card |
|
|
|||
|
Display screen
interface
|
|
2 Lvds connector pin（single double way，6bit，8bit）
1 DP output（8K@60fps or 4K@120fps ） 2 HDMI output（4K@60fps, 2 way EDP output optional） 1 HDMI-IN input connector（4K@60fps) Support multi-screen display asynchronously and simultaneously |
|
|
|||
|
OS
|
|
Android 12 (optional Ubuntu/Debian11/Buildroot)
|
|
|
|||
|
Network
support
|
|
1 or 2 1000M ethernet，Support double frequency WiFi 2.4G/5G，BT5.0
With Mini-PCIE slot supports 4G Module,with SIM card slot on board |
|
|
|||
|
Touchscreen
|
|
On board I2C port（Support Multipoint capacitance touchscreen）
USB Port（Support multipoint infrared touch，Multipoint touch，Multipoint resistance touch，Multipoint nano-membrane touch，Multipoint sound wave，Multipoint optics touch） |
|
|
|||
|
Video display
|
|
Support wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4 etc.
|
|
|
|||
|
Picture format
|
|
Support BMP、JPEG、PNG、GIF etc.
|
|
|
|||
|
USB
|
|
2 USB3.0-A ports(one of USB is OTG which supports ADB debug)
4 USB PH2.0-4P socket(which can expand more USB) |
|
|
|||
|
COM
|
|
2 RS232（TTL optional），2 TTL（RS232/RS485 optional)
|
|
|
|||
|
GPIO
|
|
4*IO (optional output or input)
|
|
|
|||
|
Audio output
|
|
1*3.5mm headphone output
1*PH2.0-2P MIC input socket 1*PH2.0-4P socket, built-in 8R/6W×2 amplifier left and right channel output |
|
|
|||
|
Special function
|
|
Built-in RTC real-time clock，support timing turn-on/off
|
|
|
|||
|
Temperature
|
|
Working Temperature：-10℃～50℃
Storage Temperature：-40℃～85℃ |
|
|
|||
|
Working Humidity
|
|
0%-90% (relative humidity, non-condensing)
|
|
|
|||
Product Category
Production Process
Packing Details :
20pcs/carton
Carton Size: 50*49*20 CM
