- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ONV
-
Model Number:
-
ONV-POE33064P
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
6 port poe switch
-
PoE Standard:
-
IEEE802.3 Af/at
-
Product size:
-
118*89*25mm(L*W*H)
-
Network distance:
-
100 meters
-
Transmission Method:
-
store-and-forward
-
Operating temperature:
-
-20°~ 55°C
-
Power pin:
-
12/36(45/78 optional)
-
Warranty:
-
3year
-
Brand:
-
Accept OEM
-
Delivery time:
-
5-7 Working Days
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
16G
-
Brand Name:
-
ONV
-
Model Number:
-
ONV-POE33064P
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
6 port poe switch
-
PoE Standard:
-
IEEE802.3 Af/at
-
Product size:
-
118*89*25mm(L*W*H)
-
Network distance:
-
100 meters
-
Transmission Method:
-
store-and-forward
-
Operating temperature:
-
-20°~ 55°C
-
Power pin:
-
12/36(45/78 optional)
-
Warranty:
-
3year
-
Brand:
-
Accept OEM
-
Delivery time:
-
5-7 Working Days

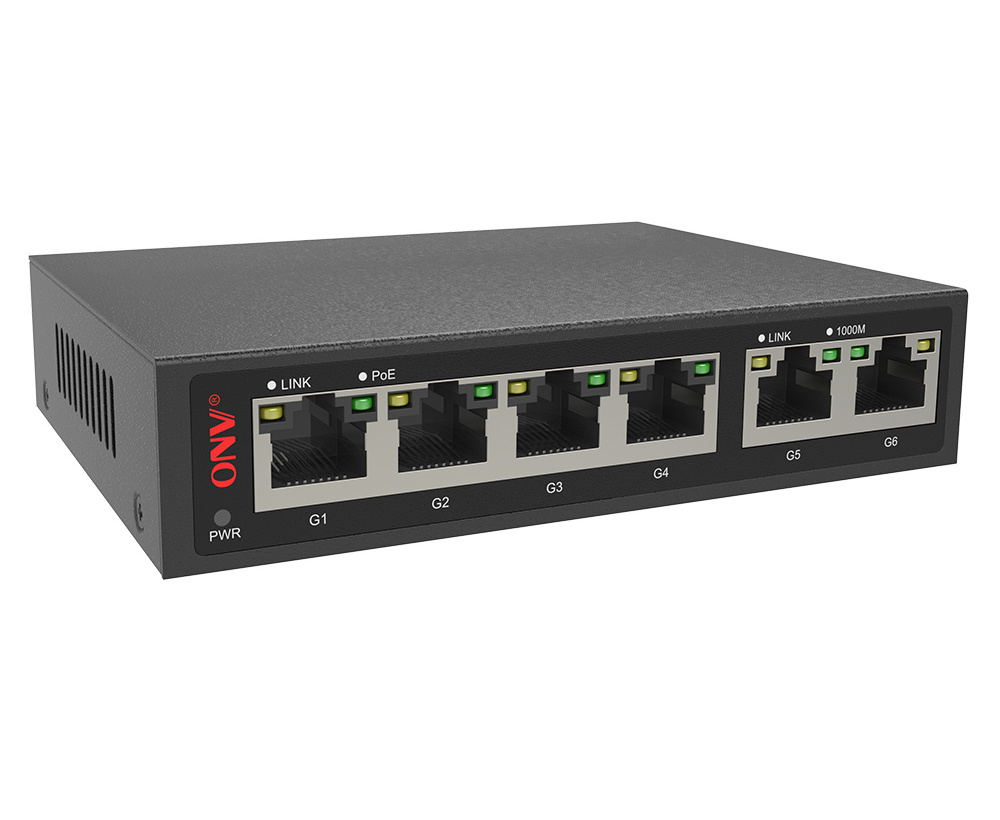

ONV 10/100/1000M 6 port poe switch with 4 gigabit poe port and 2 gigabit uplink ethernet unmanaged smart switch
Product Description
| Product Name | 6 Ports PoE Switch with 2 Gigabit Uplink Ports and 4 Gigabit PoE Ports |
| Product Model | ONV-POE33064P |
| Connector Type | 4x 10/100/1000M copper cable RJ45 PoE ports(All ports support MDI/MDIX automatic adjustment), 2x 10/100/1000M Uplink Ports |
| Forwarding Mode | Store-and-forward architecture, |
| Network Medium | 10BASE-T: Cat3, 4, 5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or more UTP(≤100 meter) | |
| 1000BASE-TX: Cat5 or more UTP(≤100 meter) | |
| Performance Specifications | Bandwidth: 1.6Gbps (non-blocking) |
| Network Latency (100 to 100M bps): Maximum delay less than 20μs | |
| Packet Buffer Memory: 2M | |
| Address Database Size: 8K | |
| MTBF: 100,000 hours | |
| Network Protocols and Standards | IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; |
| IEEE 802.3x Flow Control; | |
| IEEE 802.3af DTE Power via MDI | |
| IEEE 802.3af | |
| LED Indicator Status | System: Power |
| Every Port: connection status, PoE working status | |
| Power | IEEE 802.3af international standard, each PoE port power is 15.4W, the whole PoE power is 65W(Port3 to Port6) |
| Dimension | 118 x 89 x 25mm |
| Working Environment | Operating Temperature: -20 ° ~ 55 ° C |
| Storage Temperature: -20 ° ~ 75 ° C | |
| Humidity: 10% ~ 90%, non-condensing | |
| Storage Humidity: 10% ~ 95%, non-condensing | |
| Working Altitude: 3000 m (10,000 ft) | |
| Storage Altitude: 3,000 m (10,000 ft) | |
| Radiation | CE mark, commercial |
| FCC Part 15 Class B | |
| VCCI Class B | |
| EN 55022 (CISPR 22), Class B | |
| Safety | CE Mark ,commercial |
| CE/LVD EN60950 | |
| Warranty | 3 year warranty |
