Quick Details
-
Weight:
-
4500 KG
-
Dimension(L*W*H):
-
2430*2245*2100mm
-
Capacity:
-
240-260kg/batch
-
Volume:
-
330L
-
Rated power:
-
80.6kW
-
Cutting knife qty:
-
6pcs
-
Cutting knife speed:
-
300-3600rpm
-
Discharge plate speed:
-
83rpm
-
Host machine size:
-
2430*2245*2100mm
-
Installation size:
-
Sc4500*3500*3500mmhneider
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZOYO
-
Voltage:
-
380V 50Hz
-
Weight:
-
4500 KG
-
Dimension(L*W*H):
-
2430*2245*2100mm
-
Capacity:
-
240-260kg/batch
-
Volume:
-
330L
-
Rated power:
-
80.6kW
-
Cutting knife qty:
-
6pcs
-
Cutting knife speed:
-
300-3600rpm
-
Discharge plate speed:
-
83rpm
-
Host machine size:
-
2430*2245*2100mm
-
Installation size:
-
Sc4500*3500*3500mmhneider

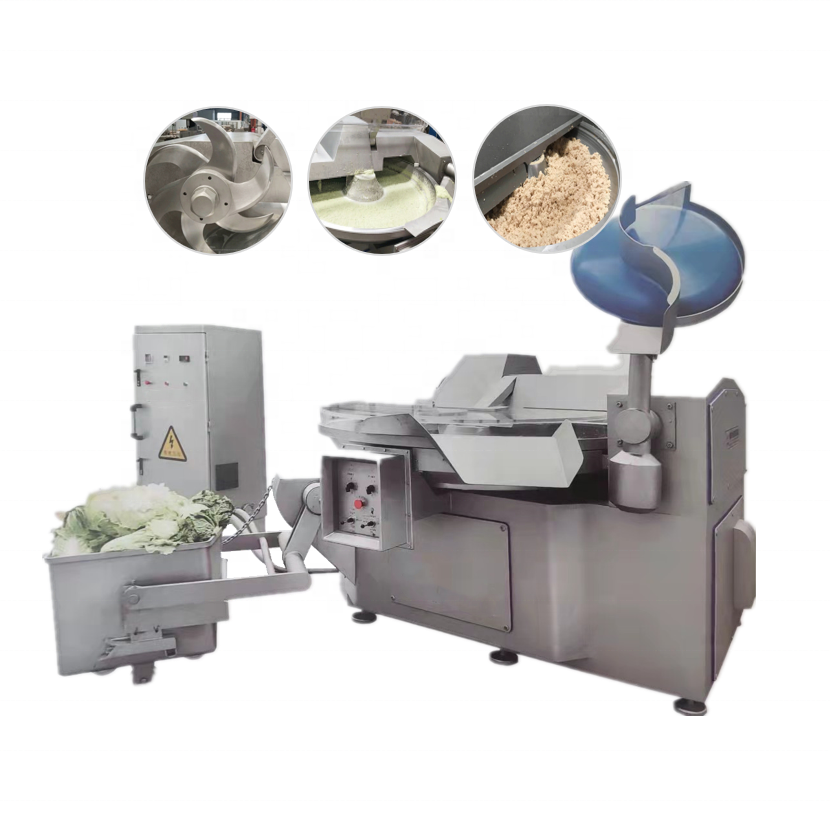

Meat Bowl Cutter Vegetable Chopper Machine
Introduction
This machine adopts national standard copper wire frequency conversion motor, customized Tianjin cutting knife, French Schneider Electric appliance, Sweden SKF bearings, mold anti-skidding feet, external frequency converter and electric components, which reduce the machine failure rate.
The shaft of the knife is partially sealed and three layers waterproof.
Add the retaining plate to ensure no material leaking from the back and the side when loading to the maximum of the machine.
The knife speed can reach 4500rpm, good emulsifying effect.
Application: It is used to produce sausages, Chiba tofu, QQ beans, fish tofu, meat balls, vegetables, and hot pot products.
Product Description
Details Images
Electric appliance
French Schneider electric appliance, Siemens sensor, Omron sensory switch.
Bearing, tools
SKF bearing, Customized Tianjin tools, Siemens frequency conversion converter.
Temperature control system
Omron temperature control system to monitor the material temperature timely.
Cutting tools
Stainless steel anti-wear cutting chopper from Tianjin, 4Cr13, 6pcs.
Machine body
SS304 stainless steel machine body, stable and reliable, easy to clean.
Low failure rate
External built frequency converter and electric appliance, water-proof and moist-proof, easy to clean and maintain.
Water-prood strip
No material out leaking when chopping and no water leaking when washing, preventing oil entering into the pot.
Tool shaft rotation speed
3600/3000/2500/2000/1500/500/150rpm, frequency conversion speed adjustable, tool tip linear speed: max 120m/s.
Rotation plate speed adjustable
The discharge plate is controlled by the hydraulic pump, speed adjustable, the maximum rotation speed is 100rpm, the rotation plate is forged of 1Cr18Ni9 steel, speed adjustable.
Specification
|
Model
|
ZYZB-330
|
|
Capacity
|
240-260kg/time
|
|
Volume
|
330L
|
|
Rated power
|
80.6kW
|
|
Cutting knife qty
|
6pcs
|
|
Cutting knife speed
|
300-3600rpm frequency conversion speed adjustable
|
|
Chopper plate speed
|
8-12rpm frequency conversion speed adjustable
|
|
Discharge plate speed
|
83rpm
|
|
Host machine size
|
2430*2245*2100mm
|
|
Installation size
|
4500*3500*3500mm
|
|
Weight
|
About 4500kg
|
Small frequency conversion high speed meat and vegetable chopper specifications as below:
Packing & Delivery
Inner plastic films
Outer plywood package
