Quick Details
-
encoding:
-
MPEG2 HD/SD, H.264 HD/SD
-
modulation:
-
QPSK, 8PSK DVB-S2
-
Input interface:
-
HD SDI, HDMI, YPbPr, CVBS, ASI
-
RF output:
-
950~2150MHz
-
product:
-
DVB-S2 HD encoder modulator
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
DEXIN
-
Model Number:
-
NDS3543C
-
encoding:
-
MPEG2 HD/SD, H.264 HD/SD
-
modulation:
-
QPSK, 8PSK DVB-S2
-
Input interface:
-
HD SDI, HDMI, YPbPr, CVBS, ASI
-
RF output:
-
950~2150MHz
-
product:
-
DVB-S2 HD encoder modulator

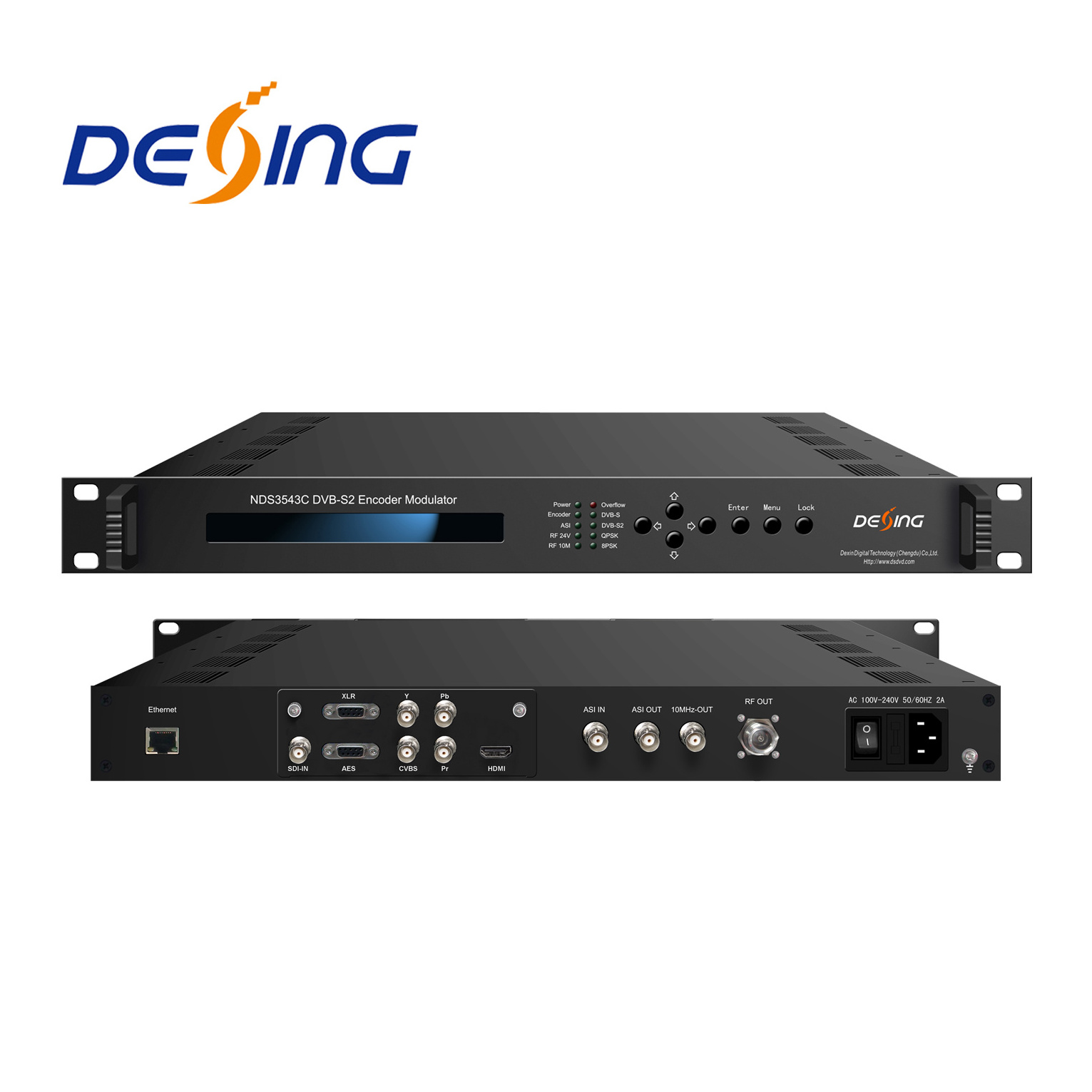

NDS3543 HDMI/YPbPr/CVBS/ SDI to DVB-S2 Encoder Modulator
dvb-s2 8psk uplink modulator,hdmi modulator
Product Overview
NDS3543C DVB-S/S2 Encoder & Modulator is an integrated device with multifunction. Its pluggable design makes it convenient to change encoding module (CVBS/SDI/HDMI/YPbPr…) as needed. It is also equipped with 1 channel ASI input for pass through or TS MUX. It outputs ASI and DVB-S/S2 RF.
The signal source could be from CCTV cameras, Blue-ray players and etc. It adopts user-friendly web-based operation interface to effectively manage the device and carefully protect your content with its BISS function. Featured with its high performance and low cost, NDS3543C is especially adequate for the TV station or DSNG system to encode SD/HD programs and output to uplink.
Key Features
n MPEG2 SD/HD and MPEG4 SD/HD Encoding Module optional
n CVBS/SDI/HDMI/YPbPr…signals in & 1*ASI in
n Support DVB-S/S2 RF output and ASI output
n Output Frequency: 950-2150MHz ( IF: 50-200MHz -----NDS3543A )
n Symbol Rate: 0.05-20Msps
n Support Low latency
n Support BISS fucntion
n Support RF 24V power output
n Support 10MHz reference clock output
n Support Web NMS and front panel LCD & Keyboard control
n Upgrade device through web NMS
Principle Chart
System Connection Sample
Technical Specifications
HDMI/SDI/YPbPr/CVBS/XLR/AES Encoding Input
|
Encoding |
MPEG-2 HD/SD or MPEG-4 AVC/H.264 HD/SD |
||
|
Input |
HDMI/SDI//YPbPr/CVBS |
||
|
Resolution |
Input |
Output |
Interface Applicable |
|
1920×1080i_60 |
1920×1080, 1440×1080, 1280×1080i, 960×1080i |
HDMI SDI YPbPr |
|
|
1920×1080i _ 59.94 |
|||
|
1920×1080i _ 50 |
|||
|
1280×720p _ 60 |
1280×720, 960×720p, 640×720p |
HDMI SDI YPbPr |
|
|
1280×720p _ 59.94 |
|||
|
1280×720p _ 50 |
|||
|
720×576i _ 50 |
720×576, 704×576, 640×576, 544×576, 528×576, 480×576, 352×576 |
SDI, CVBS
HDMI
|
|
|
720×480i _ 59.94 |
720×480, 704×480, 640×480, 544×480, 528×480, 352×480 |
SDI CVBS HDMI |
|
|
Bit rate |
0.5 – 60.00 Mbps |
||
|
Rate Control |
CBR |
||
|
GOP Structure |
Auto, IP, IPB, IPBB, IPBBB |
||
|
Aspect Ratio
|
4:3, 14:9, 16:9 (for SD video) 16:9 (for HD video) |
||
|
Chroma |
4:2:0, 4:2:2 |
||
|
Advanced Pretreatment |
De-interlacing, noise reduction, sharpening |
||
|
|
|
||
Audio
|
encoding |
MPEG-1 Layer II, HE-AAC (v1&v2), LC-AAC, DD AC3 (2.0, 5.1 available); DD AC3 passthrough (for SDI in) |
|
Input |
2×XLR, 4×AES, 1×HDMI, 1×SDI (support maximum 4 stereos synchronous processing or one DD 5.1 CH processing) |
|
Sample rate |
48KHz |
|
Bit rate |
32Kbps~640Kbps |
|
Low delay options |
150ms, 200ms, 350ms, 650ms |
Single SDI Encoding Input
Video
|
Encoding |
MPEG2; MPEG4 AVC/H.264 |
|
Input |
1*HD SDI |
|
Bitrate |
1-19.5 Mbps |
|
AspectRatio |
4:3 16:9 |
|
Resolution |
1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i
|
Audio
|
encoding |
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC DD AC3(optional, as per your order) |
|
Sample rate |
48KHz |
|
Bit rate |
64kbps, 96kbps, 128kbps, 192kbps, 256kbps, 320kbps |
Dual SDI Encoding Input
Video
|
Encoding |
H.264/AVC High Profile Level 4.0 (HD) |
|
Input |
2*SDI |
|
Resolution
|
1920*1080_60P, 1920*1080_50P, 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i |
Audio
|
encoding |
MPEG1 Layer II, AAC, AC3(Optional) |
|
Sample rate |
48KHz |
|
Bit rate |
64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |
Video
|
Input |
1*HDMI (1 for backup) |
|
Encoding |
MPEG2; MPEG4 AVC/H.264 |
|
Bitrate |
1-19.5Mbps |
|
AspectRatio |
Auto, 4:3, 16:9 |
|
GOP |
B≤3, P≤6 |
|
Input Resolution |
1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i |
|
Output Resolution |
Auto, 1920*1080_60i, 1920*1080_50i, 1440*1080_60i, 1440*1080_50i, 1280*720_60P, 1280*720_50P, 720*480_60i, 720*576_50i |
Audio
|
encoding |
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, AC3(optional as per order) |
|
Dialog Normalization |
(-31~1 dB) Applicable on AC3 encoding |
|
Sample rate |
48KHz |
|
Bit rate |
64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |
HDMI/YPbPr/CVBS 3-in-1 Encoding Input
Video (HDMI)
|
Interface |
1*HDMI |
|
Encoding |
MPEG2; MPEG4 AVC/H.264 |
|
Bitrate |
1-19.5Mbps |
|
Resolution |
1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P |
|
Encoding |
MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC |
|
Interface |
1*HDMI |
|
Sample rate |
48KHz |
|
Bit rate |
64/96/128/192/256/320kbps |
Video (YPbPr/CVBS)
|
Interface |
1*YPbPr/1*CVBS |
|
Encoding |
MPEG2; MPEG4 AVC/H.264 |
|
Bitrate |
1-19.5Mbps |
|
Resolution |
CVBS: 720x576_50i (PAL); 720x480_60i (NTSC) YPbPr: 1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P |
Audio (L/R)
|
Encoding |
MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC |
|
Interface |
1*Stereo/2*mono |
|
Sample rate |
48KHz |
|
Bit rate |
64/96/128/ 192/256/320kbps |
2*(S-Video + YPbPr + CVBS) Encoding Input
|
Encoding |
Option 1: MPEG-2 MP@ML(4:2:0) Option 2: MPEG-2 & MPEG-4 AVC/H.264 (4:2:0) |
|
Input |
2*S-Video/YPbPr/CVBS (RCA Type) |
|
Resolution |
720*576 (PAL); 720*480 (NTSC) |
|
Bit rate |
Option 1: 1~19.50 Mbps Option 2: 1~10.00 Mbps |
Audio
|
encoding |
Option 1: MPEG1 Layer II Option 2: MPEG1 Layer II; LC-AAC; HE-AAC and Dolby Digital AC3 2.0( Optional) |
|
Input |
2 Stereo/Mono |
|
Sample rate |
48KHz |
|
Bit rate |
64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |
|
Input Interface |
|
1/2*CVBS /1*SDI /1*HDMI/1*(HDMI+YPbPr+CVBS 3-in-1) optional |
|
1×ASI input, BNC interface |
|
Output |
|
DVB-S/S2 RF output; (IF Output----NDS3543A) ASI output |
|
DVB-S/S2 Modulation Section |
|
DVB-S QPSK: FEC 1/2,2/3,3/4,5/6,7/8 |
|
DVB-S2 QPSK:FEC 1/2,3/5,2/3,3/4,4/5,5/6,8/9,9/10 |
|
DVB-S2 8PSK FEC 3/5,2/3,3/4,5/6,8/9,9/10 |
|
RF output : 950.00-2150.00 MHz, 10Khz step IF output: 50-200MHz |
|
BISS scrambling: Mode1, ModeE |
|
Symbol rate: 0.5-20.0Msps |
|
Roll Off: 0.35, 0.25, 0.2 |
|
Output level: -10dBm~-41.5dBm |
System
|
Local Control |
LCD + control buttons |
|
Remote Control |
Web NMS |
|
Low Latency Mode |
Normal, Mode 1, Mode 2 |
|
Language |
English |
Physical Specification
|
Demission |
410×460×44mm (W*L*H) |
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
|
Power Supply |
AC 100-240V 50/60Hz 2A |
