Quick Details
-
Dimension(L*W*H):
-
820*840*1200 mm
-
Weight:
-
0.142t
-
Product name:
-

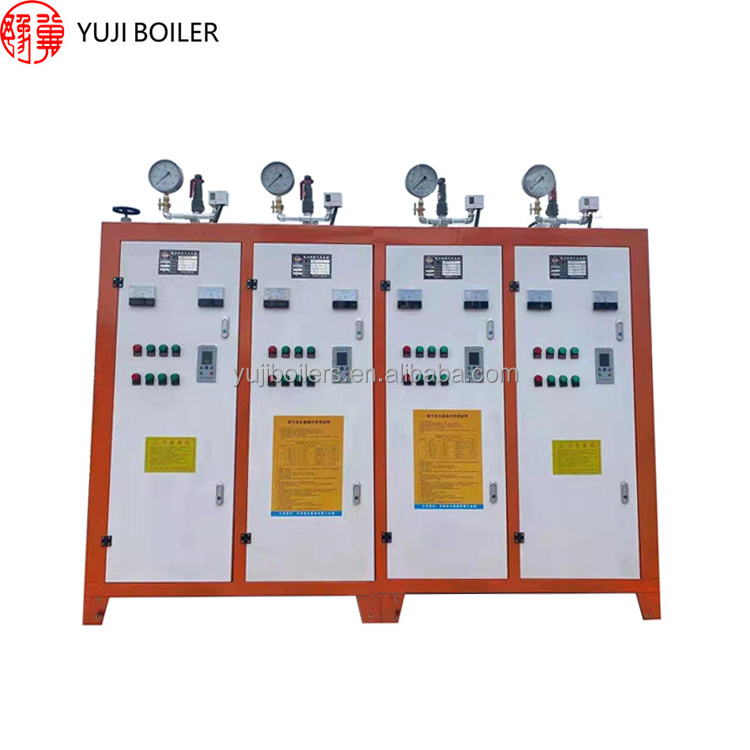

Yuji LDR Food Industry Automatic Electric Steam Generator
-
Steam evaporation:
-
50 Kg~1000kg
-
Working pressure:
-
0.4 mpa / 0.7 mpa
-
Thermal efficiency:
-
99%
-
Power:
-
220 V, 380 V
-
Application:
-
Sauna room, food industry, home
-
Steam temperature:
-
150℃ , 170 ℃
-
Packing:
-
In wood box with dust bag
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
ISO 9001, CE,
Quick Details
-
Steam Production:
-
50kg~1000kg / h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yuji
-
Dimension(L*W*H):
-
820*840*1200 mm
-
Weight:
-
0.142t
-
Product name:
-
Yuji LDR Food Industry Automatic Electric Steam Generator
-
Steam evaporation:
-
50 Kg~1000kg
-
Working pressure:
-
0.4 mpa / 0.7 mpa
-
Thermal efficiency:
-
99%
-
Power:
-
220 V, 380 V
-
Application:
-
Sauna room, food industry, home
-
Steam temperature:
-
150℃ , 170 ℃
-
Packing:
-
In wood box with dust bag
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
ISO 9001, CE,
Industrial Automatic laboratory LDR 92 kw 110V 235Kg Electric Steam Generator Boiler With Water Level Controller
|
Model |
Rated evaporation capacity (kg/h) |
Rated steam pressure (Mpa) |
Rated electric power (kw) |
Thermal efficiency (%) |
Steam temperature(°C) |
Dimension (m) |
Weight (t) |
|
LDR0.008-0.4 |
8 |
0.4 |
6 |
≥99 |
151 |
0.82×0.84×0.8 |
0.12 |
|
LDR0.012-0.4 |
12 |
0.4 |
9 |
≥99 |
151 |
0.82×0.84×0.8 |
0.123 |
|
LDR0.016-0.4 |
16 |
0.4 |
12 |
≥99 |
151 |
0.82×0.84×1 |
0.139 |
|
LDR0.024-0.4 |
24 |
0.4 |
18 |
≥99 |
151 |
0.82×0.84×1 |
0.14 |
|
LDR0.032-0.4 |
32 |
0.4 |
24 |
≥99 |
151 |
0.82×0.84×1.2 |
0.142 |
|
LDR0.065-0.4 |
65 |
0.4 |
48 |
≥99 |
151 |
0.82×0.84×1.4 |
0.146 |
|
LDR0.075-0.4 |
75 |
0.4 |
54 |
≥99 |
151 |
0.82×0.84×1.4 |
0.15 |
|
LDR0.1-0.4 |
100 |
0.4 |
72 |
≥99 |
151 |
0.82×0.84×1.68 |
0.155 |
|
LDR0.13-0.4 |
130 |
0.4 |
96 |
≥99 |
151 |
0.82×0.84×1.68 |
0.165 |
|
LDR0.2-0.4 |
200 |
0.4 |
144 |
≥99 |
151 |
0.82×0.84×2.1 |
0.206 |
|
LDR0.24-0.4/0.7 |
240 |
0.4/0.7 |
174 |
≥99 |
151/170 |
0.82×0.84×1.7 |
0.267 |
|
LDR0.28-0.4/0.7 |
280 |
0.4/0.7 |
203 |
≥99 |
151/170 |
0.82×0.84×1.9 |
0.302 |
|
LDR0.32-0.4/0.7 |
320 |
0.4/0.7 |
232 |
≥99 |
151/170 |
0.82×0.84×1.9 |
0.327 |
|
LDR0.36-0.4/0.7 |
360 |
0.4/0.7 |
261 |
≥99 |
151/170 |
0.82×0.84×2.1 |
0.342 |
|
LDR0.4-0.4/0.7 |
400 |
0.4/0.7 |
290 |
≥99 |
151/170 |
0.82×0.84×2.1 |
0.357 |
