Quick Details
-
Brand Name:
-
VLIFT
-
Fork Length:
-
1070mm
-
Fork Width:
-
120mm
-
Overall Dimensions:
-
2610x1150x2130mm
-
Weight (KG):
-
3680 kg
-
Power type:
-
Diesel Forklift
-
Loading Capacity:
-
2000kg
-
Lifting height:
-
3000mm
-
Engine:
-
Xinchai
-
Fork Max Spacing:
-
712mm
-
Carriage Width:
-
815mm
-
Effective Thickness:
-
128mm
-
Horizontal Center of Gravity:
-
68mm
-
Available Forklift:
-
1.5 ton-2 ton
-
Certification:
-
CE ISO
Quick Details
-
Min. Lifting Height:
-
120mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
VLIFT
-
Fork Length:
-
1070mm
-
Fork Width:
-
120mm
-
Overall Dimensions:
-
2610x1150x2130mm
-
Weight (KG):
-
3680 kg
-
Power type:
-
Diesel Forklift
-
Loading Capacity:
-
2000kg
-
Lifting height:
-
3000mm
-
Engine:
-
Xinchai
-
Fork Max Spacing:
-
712mm
-
Carriage Width:
-
815mm
-
Effective Thickness:
-
128mm
-
Horizontal Center of Gravity:
-
68mm
-
Available Forklift:
-
1.5 ton-2 ton
-
Certification:
-
CE ISO

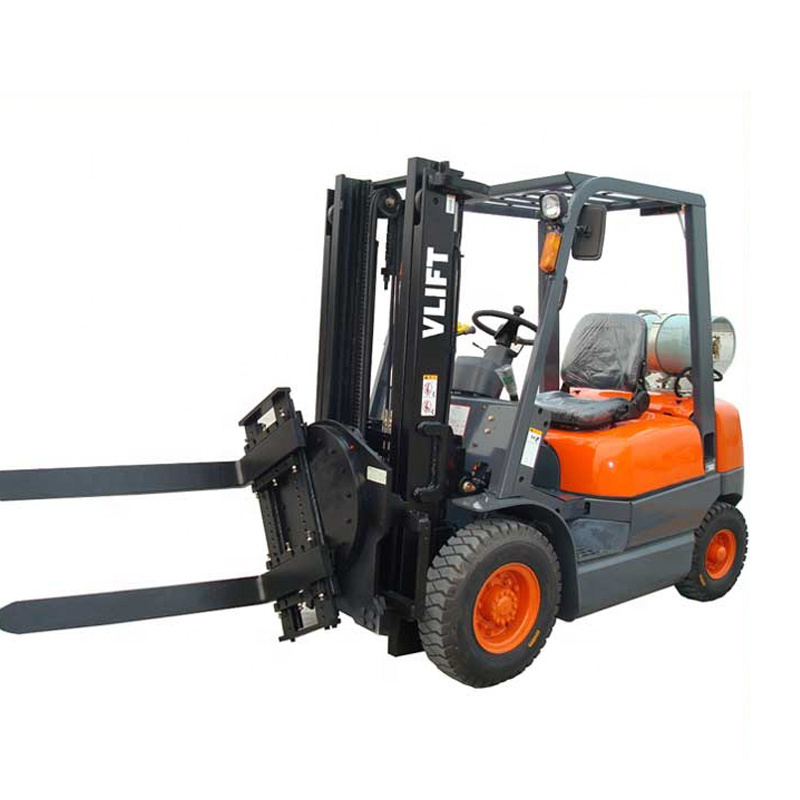

2 ton forklift 360 degree rotator
forklift rotator specification
| Model |
Capacity Load Centre
kg/mm |
Overall width
D(mm) |
Carriage Width
C(mm) |
Fork Max Spacing
OTO(mm) |
Mounting Class |
Effective Thickness
ET(mm) |
Horizontal Center of Gravity
CGH(mm) |
Weight
(kg) |
Vertical Center of Gravity
CGV(mm) |
Available Forklift |
| VFS20-210B71 | 1700/500 | 840 | 815 | 712 | Ⅱ/Ⅱ | 128 | 68 | 180 | 260 | 1.5-2.5t |
| Certificate | CE and ISO9002 | |||||||||
| Color | White/Black/Yellow/Red/Grey or any other customized color | |||||||||
| Packing | Fumigation of wooden packaging | |||||||||
| Delivery | Within 25 days after receipt of your order | |||||||||
| Payment | 30% T/T deposit before production,balance paid before shipment. | |||||||||
| Warranty | Within 12 months after shipment and within the warranty time,we will supply with necessary technical supports free of charge. | |||||||||
forklift specifcation
| Specification | 1 | Model | CPCD20 | ||||
| 2 | Operator type | Diesel | |||||
| 3 | Load capacity | Kg | 2000 | ||||
| 4 | Load center | mm | 500 | ||||
| Dimensions | 5 | Max.lifing height | mm | 3000 | |||
| 6 | Free lift | mm | 120 | ||||
| 7 | Fork size | L×W×T | mm | 1070×120×40 | |||
| 8 | Tilt angle | front/rear | deg | 6\12 | |||
| 9 | Front overhang | mm | 476 | ||||
| 10 | Rear overhang | mm | 485 | ||||
| 11 | Size | Overall length(without fork) | mm | 2610 | |||
| 12 | Overall width | mm | 1150 | ||||
| 13 | Mast height(fork lowering) | mm | 2160 | ||||
| 14 | Mast height(fork raised) | mm | 4370 | ||||
| 15 | Height of head guard | mm | 2130 | ||||
| 16 | Turning raduis | mm | 2170 | ||||
| 17 | width of minimum intersecting aisle | mm | 2680 | ||||
| Performance | 18 | Speed | Travelling (no load) | Km/h | 20 | ||
| 19 | Lifting (full load) | mm/sec | 450 | ||||
| 20 | Lowering (full load) | mm/sec | 450 | ||||
| 21 | Max.drawbar pull | N | 17500 | ||||
| 22 | Max.gradeabillty | % | 20 | ||||
| Chassis | 23 | Tires | front | mm | 7.00-12-12PR | ||
| 24 | rear | mm | 6.00-9-10PR | ||||
| 25 | Track | front | mm | 970 | |||
| 26 | rear | mm | 970 | ||||
| 27 | wheelbase | mm | 1600 | ||||
| 28 | Ground clearence | At lowest point(mast) | 120 | ||||
| 29 | Framer | 145 | |||||
| Weights | 30 | Self weight | Kg | 3680 | |||
| 31 | weight distribution | Full load | front | 4856 | |||
| 32 | rear | 724 | |||||
| 33 | No load | front | 1428 | ||||
| 34 | rear | 2142 | |||||
| Drive | 35 | Battery | Voltage / capacity | V/AH | 12/80 | ||
| 36 | Engine | Model | Xinchai | ||||
| 37 | Origin | China | |||||
| 38 | Rated power | kw/rpm | 34.3/2500 | ||||
| 39 | Rated torque | N.m/rpm | 138/1800 | ||||
| 40 | Numberof cylinder | 4 | |||||
| 41 | Bore and Stroke | mm | 90×105 | ||||
| 42 | Displacement | L | 2.369 | ||||
| 43 | Fule tank capacity | L | 60 | ||||
| 44 | Transmission | Origin | CHINA | ||||
| 45 | Type | Powershift (Manual) | |||||
| 46 | Gear | Speed forward/Backward | 1/1(2/2) | ||||
| 47 | Operatiing pressure | Mpa | 17.5 | ||||
