Quick Details
-
Model Number:
-
sb81 sb70
-
Condition:
-
NEW
-
Applicable Industries:
-
Construction
-
Weight:
-
2100 kg
-
Suitable Excavator(ton):
-
20-26 Ton
-
Product name:
-
Excavator Part Hydraulic Rock Breaker
-
Type:
-
Open
-
Material:
-
20CrMo,42CrMo
-
Color:
-
Yellow or Customer Required
-
Chisel Diameter:
-
140mm
-
System:
-
Hydraulic-gas System
-
Compatible carrier:
-
20-26ton
-
Certification:
-
ISO CE
-
MOQ:
-
1
-
Value Assy Position:
-
Internal
Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Pterosaur
-
Model Number:
-
sb81 sb70
-
Condition:
-
NEW
-
Applicable Industries:
-
Construction
-
Weight:
-
2100 kg
-
Suitable Excavator(ton):
-
20-26 Ton
-
Product name:
-
Excavator Part Hydraulic Rock Breaker
-
Type:
-
Open
-
Material:
-
20CrMo,42CrMo
-
Color:
-
Yellow or Customer Required
-
Chisel Diameter:
-
140mm
-
System:
-
Hydraulic-gas System
-
Compatible carrier:
-
20-26ton
-
Certification:
-
ISO CE
-
MOQ:
-
1
-
Value Assy Position:
-
Internal
hb20g 30G
hydraulic breaker
Product Description
|
Description
|
Operating Weight
|
Required Oil Flow
|
Impact Rate
|
Working Pressure
|
Rod Diameter
|
Applicable Carrier
|
|
Unit
|
KG
|
L/min
|
bmp
|
Kg/cm²
|
mm
|
ton
|
|
YLB530
|
152
|
25-50
|
550-1000
|
90-120
|
53
|
2.5-4.5
|
|
YLB680
|
320
|
40-70
|
500-800
|
100-140
|
68
|
4-7
|
|
YLB750
|
400
|
50-90
|
450-800
|
120-150
|
75
|
6-9
|
|
YLB1000
|
820
|
80-120
|
350-700
|
160-180
|
100
|
11-16
|
|

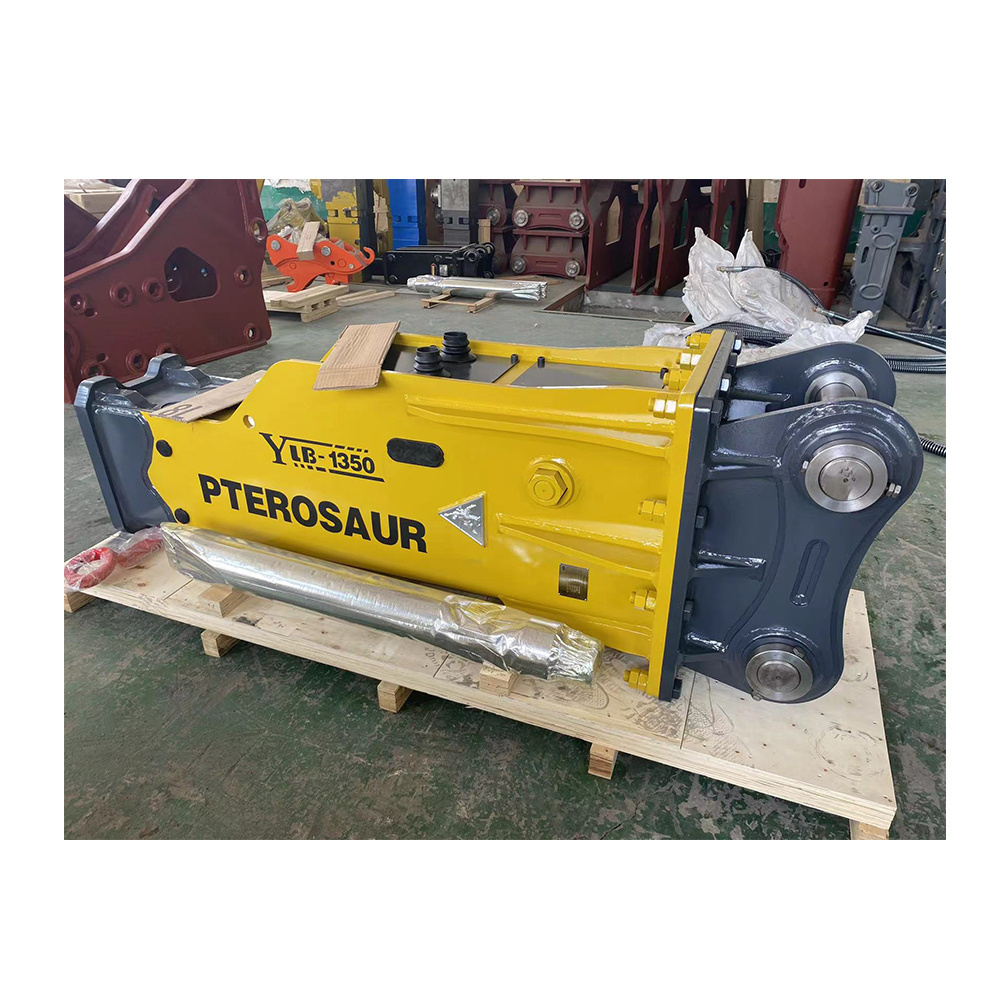

YLB1350
|
1720
|
100-150
|
350-600
|
180-210
|
135
|
18-21
|
|
YLB1400
|
1720
|
130-170
|
350-500
|
190-220
|
140
|
20-26
|
|
YLB1500
|
2230
|
150-210
|
300-450
|
210-230
|
150
|
25-30
|
|
YLB1550
|
2780
|
170-220
|
300-450
|
220-240
|
155
|
28-35
|
|
YLB1650
|
3350
|
200-260
|
250-400
|
230-250
|
165
|
30-40
|
|
YLB1750
|
3850
|
210-260
|
250-350
|
240-260
|
175
|
40-55
|
Our products are based at unique and deep engineering developments which were stared at 1995. Our chief engineer is the orginal developer from Korea.Our R&D team are all Korean engineers.For the past 20 years ,we have constantly developed future oriented hydraulic breakers to meet changing market requirements.We are the only factory that can produce chisel size more than 210mm breakers in China.
WHY CHOOSE US!!!
We are a professional manufacturer for producing hydraulic breakers.Now our factory mainly produces Soosan System hydraulic breakers,Furukawa System hydraulic breaker and spare parts in China.Choose our hydraulic breakers as your partner for a huge range of tasks.
Suitable for a wide range of carriers like wheeled and carwler excavators will get the job done-quickly and economically!
We can supply Box/Silence type,Top type,Side type hydraulic breakers,whatever you need we can supply for you!
Advantages
☻Selected raw material - high quality heavy duty wear resistant steel
☻ Hydraulic-gas system, increase stability
☻ High-quality and durable wear parts
☻ Advanced manufacturing facilities, introduced from South Korea
☻ High energy and impact frequency (high performance)
☻ High-performance optimized hydraulic unit
☻ Low maintenance, less breakdown, long using life
Spare Parts
→
Through bolts
: Longer service life by to applied heat treatment.
→
Back head
: Material: 20CrMo, impact energy is accumulated due to charged nitrogen gas in the block.
→
Front Head
: Using 20CrMo material, high quality with long life using.
→
Valve
: We adopt production process by grinding machine, with high precision.
→
Cylinder body
: Material: 20CrMo, it is best quality material.
→
Piston
: Longer service life by optimized design and high quality special steel.
→
Front Head
: Using 20CrMo raw material, which are provided by domestic famous manufacturer, forging again and again to make internal organization more tight and increasing the hydraulic breaker wear-resistance.
→
Chisel
: The specially heat treated chisel is directly applied to break rocks. There are four types for choosing: Moil, Blunt,
Flat, Conical Point. The material is 42Crmo.
→
Main Body
: Including Front head, cylinder and back head. Ensure your breaker will be in best performance
→
Seal Kit
: We can supply both Parker and NOK seal kit which are most famous brand in the business line.
Products Procedure
Packing & Delivery
Package
◇ Inner package hydraulic breakers were packed in stretch film
◇ Outside package with export wooden case
◇ Hydraulic breaker Package can be as per customer's request
Delivery
☆Delivery time: Usually 3-7days (1-5sets) after receiving the payment
☆We can arrange hydraulic breaker shipment by ocean or air transportation according to your request from any port of China.
Contact Information
Certicification
Exhibition Show
Our Service
Pre-Sales Service.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory..
After-Sales Service.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ
1. Are you a manufacturer?
Yes, our factory was established in 2004
2. Can you produce according to customers' design?
Sure, OEM / ODM service available. We are professional manufacturer for nearly 14 years.
3. What's the MOQ and payment terms?
MOQ is 1 set. Payment via T/T, L/C, Western Union accepted, other terms can be negotiated.
4. How about delivery time?
3-7 working days after receiving the payment.
5. After-sale Service
12 months warranty
for hydraulic breakers. Detailed warranty for each spare parts of hydraulic breaker as per our warranty policy.
6. Impact Test
Every hydraulic breaker will do impact test before shipment.
