Quick Details
-
Output Speed:
-
0-3300rpm
-
Weight (KG):
-
2 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
G+ Gigager
-
Rated Output Torque:
-
22N.m
-
Maxi Output Torque:
-
3 Times Rated Output Torque
-
Rated Input Speed:
-
5000rpm
-
Mani Input Speed:
-
10000rpm
-
Backlash:
-
≤5arcmin
-
Torsional Rigidity:
-
7Nm/arcmin
-
IP Grade:
-
IP65
-
Temperature:
-
-10℃~+90℃
-
Installation Direction:
-
Any Direction
-
Noise Value:
-
≤56dB
Quick Details
-
Gearing Arrangement:
-
Bevel / Miter
-
Output Torque:
-
0-22Nm
-
Input Speed:
-
0-10000Rpm
-
Output Speed:
-
0-3300rpm
-
Weight (KG):
-
2 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
G+ Gigager
-
Rated Output Torque:
-
22N.m
-
Maxi Output Torque:
-
3 Times Rated Output Torque
-
Rated Input Speed:
-
5000rpm
-
Mani Input Speed:
-
10000rpm
-
Backlash:
-
≤5arcmin
-
Torsional Rigidity:
-
7Nm/arcmin
-
IP Grade:
-
IP65
-
Temperature:
-
-10℃~+90℃
-
Installation Direction:
-
Any Direction
-
Noise Value:
-
≤56dB

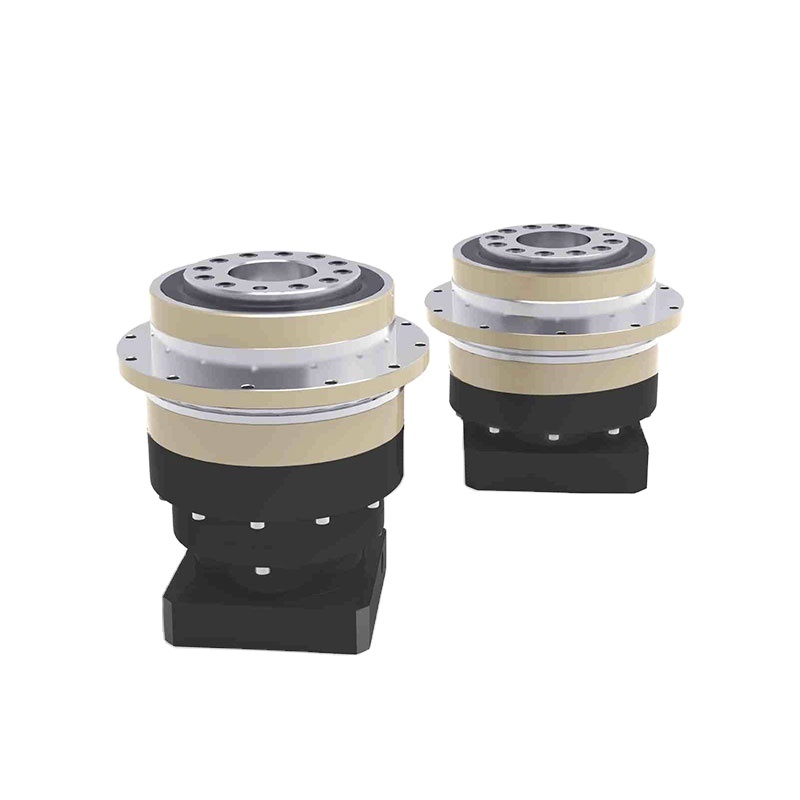

Planetary Gear Box Easy and convenient installation For Medical Orthopedic Equipments Drill GPD047-L1
1.Sending the order code like GPD047-L1
2. Provide Motor model / drawing and output torque
Planetary Reducer
As a professional speed reducer manufacturer, GIGAGER is specialized in producing planetary gearhead reducer for more than 10 years. All of GIGAGER planetary gearboxes are designed with integral structure with large span of the front and rear bearings distributed inside the box body, forming a stable integrated structure to ensure transferring the largest torque in the most compact form.
1. What is the Planetary Reducer?
Planetary gear system is a type of epicyclic gear system used in precise and high-efficiency transmissions.
We have abundant of experience in manufacturing planetary gearbox and gear components such as sun gear, planet carrier, and ring gear in China. We employ the most advanced equipment and technology in manufacturing our planetary gear sets.
We offer a wide range of planetary gearbox for your gear reduction projects.
2. What is the Product Features?
• Low backlash to meet users’ precision transmission requirement.
• High efficiency of output ensure the excellent working performance of user’s equipment.
• High quality with free maintenance.
• Helical transmission, more stable, more loading
• Special designed integral structure makes bigger radial and axial load
• Low noise and small volume
• Multiple model and gear ratio options
Image Detail
GIGAGER planetary gearbox are widely used in servo applications, such as:
• In a robot to increase the torque
• In a printing press to reduce the speed of the rollers
• For precise positioning
• In a packaging machine for a reproducible products
• Robotic arm industries
• CNC manufacturing industries
• Spring mechanism industries
• Textile machinery field
• Laser machinery field
• Automatic production line
• Printing machines
