factory use 5T (5000KG) super heavy duty caster red wear-resistant PU wheel with cast rion center twin wheel extra load castor

factory use 5T (5000KG) super heavy duty caster red wear-resistant PU wheel with cast rion center twin wheel extra load castor

FOB Reference Price: Get Latest Price

≥50 Pieces

US $304.62

≥100 Pieces

US $282.05

≥200 Pieces

US $268.62

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Hubei, China

Wheel color:: Red

Wheel material:: PU

Housing material:: steel

Wheel dia.:: 200mm 250mm 350mm 400mm

Wheel width:: 80/80/100/100mm

Load capacity:: 3000/4000/5000/6000kg

Mounting height:: 315/365/415/510mm

Plate size:: 270x250x20mm

Housing thickness:: 12/15/15/15

Bearing:: Double ball bearing

Quick Details

Material:: POLYURETHANE, Steel, PU

Type:: Plate Casters

Model Number:: P772-46F300X100

Place of Origin:: Hubei, China

Wheel color:: Red

Wheel material:: PU

Housing material:: steel

Wheel dia.:: 200mm 250mm 350mm 400mm

Wheel width:: 80/80/100/100mm

Load capacity:: 3000/4000/5000/6000kg

Mounting height:: 315/365/415/510mm

Plate size:: 270x250x20mm

Housing thickness:: 12/15/15/15

Bearing:: Double ball bearing

Products Descriptipon

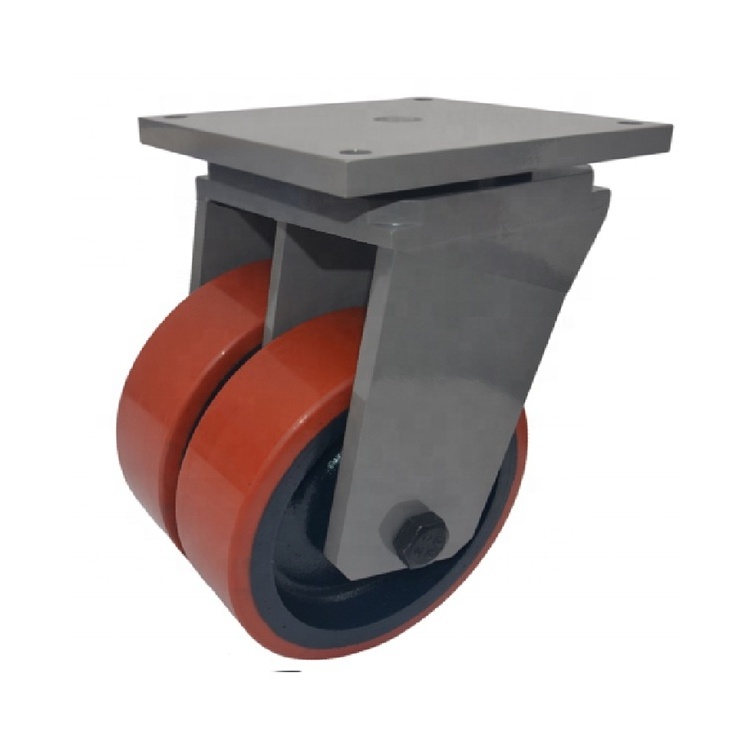

factory use 5T (5000KG) super heavy duty caster red wear-resistant PU wheel with cast rion center twin wheel extra load castor

We can supply 3D drawings, Please contact our sales manager to obtain it

Brand	Double Rhombus	Series	Super heavy duty Caster
Model No.	P772-46F300X100D	Load Capacity(kgs)	5 TON /5000kgs
Wheel diameter(mm)	300mm	Width of Tread(mm)	100mm
Offset(mm)	80mm	Hole size(mm)	17mm
Overall height(mm)	415mm	Size of plate(mm)	270x250x20mm
Bearing	double ball bearing	Bolt hole spacing(mm)	230x210mm

The havey caster pass various professional tests during the production process

Walking Performance Test

we have professional Experimental equipment, The super heavy duty caster test with 5tons / 5000 kgs load capacity, after professional testing, the sample no abrasive wear, the wheel is qualified.

We have various professional Experimental equipment

PU/Nylon Abrasion Tester

Vacuum Oven

PU Elasticity Tester

PU Hardnerss Tester

PU Tension Tester

12-15mm super u ltra thick fork , 20mm top plate, refined finishsurface treatment

Durable PU wheel : code No.46F Wear-resistant MC nylon wheel:code No. 20F

Corrosion resistant surface treatment Precision d ouble ball bearings

The 772 series super heavy duty twin wheel caster can optional: Rigid and swivel version,12-15mm super thickness fork with 200/250/300/400mm size, wheel material can choose PU,MC Nylon.

80-100mm super widen PU/Nylon twin wheels extra heavy duty durable caster
