Quick Details
-
Input Power:
-
6-7.8w
-
Control:
-
Remote/WiFi control
-
Sensor:
-
CO2/Humidity control
-
Airflow (L/M/H):
-
20/40/50
-
Regeneration Efficiency:
-
≤ 97 %
-
Installation:
-
Wall Mounted
-
Name:
-

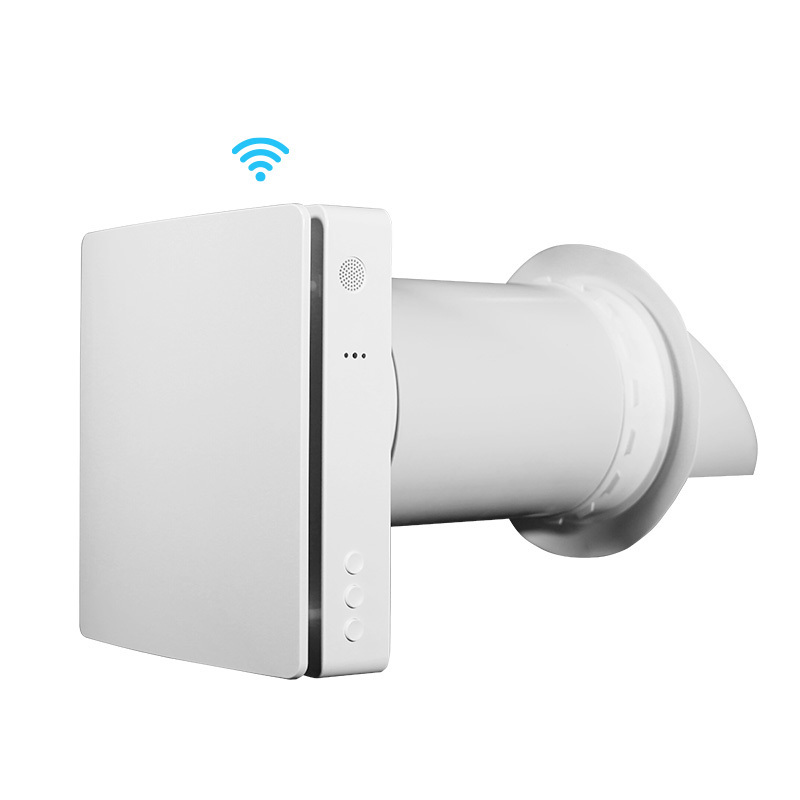

Single Rooms Heat Recovery Ventilators
-
Certification:
-
CE/CB/UKCA/RoSH
-
Noise:
-
32dB(A)
-
Waterproof:
-
IPX4
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
ODM
-
Model Number:
-
AV-TTW5-W
-
Input Power:
-
6-7.8w
-
Control:
-
Remote/WiFi control
-
Sensor:
-
CO2/Humidity control
-
Airflow (L/M/H):
-
20/40/50
-
Regeneration Efficiency:
-
≤ 97 %
-
Installation:
-
Wall Mounted
-
Name:
-
Single Rooms Heat Recovery Ventilators
-
Certification:
-
CE/CB/UKCA/RoSH
-
Noise:
-
32dB(A)
-
Waterproof:
-
IPX4
Product Description
WIRELESS OPERATION INPAIR TO ENSURE BALANCED VENTILATION
Wireless connection of master and slave unit, no wiring or dialing needed, 30 meters ultra long distance transmission.
* 30 meters was tested without barrier and interference. In practical application, it is recommended to install within 8-15 meters. Please avoid the strong interference sources and shielding objects (e.g. iron frames, aluminum ceiling).
Wireless connection of master and slave unit, no wiring or dialing needed, 30 meters ultra long distance transmission.
* 30 meters was tested without barrier and interference. In practical application, it is recommended to install within 8-15 meters. Please avoid the strong interference sources and shielding objects (e.g. iron frames, aluminum ceiling).
WIFI FUNCTION
•On/off setting
• Fan speed control• Working mode selection
• LED lights on/off
• 7*24 hours timer setting
• Error display
• Online/offline display
• Linkage status display
• Smart control according to local weather
• Linkage control with other appliances with Tuya IoT
•On/off setting
• Fan speed control• Working mode selection
• LED lights on/off
• 7*24 hours timer setting
• Error display
• Online/offline display
• Linkage status display
• Smart control according to local weather
• Linkage control with other appliances with Tuya IoT
New Contorl Panel
•Using radio signal for communication.
•Longer distances communication up to 15m without barrier.
•Wider control area, multiple devices can be controlled at the same time.
•Accurate control to avoid controlling the wrong device.
•Using radio signal for communication.
•Longer distances communication up to 15m without barrier.
•Wider control area, multiple devices can be controlled at the same time.
•Accurate control to avoid controlling the wrong device.
Product Structure
CERAMIC ENERGY REGENERATOR
The high-tech ceramic energy accumulator with regeneration efficiency up to 97 % ensures extract air heat recovery for warming of supply air flow. Due to the cellular structure the unique regenerator has a large air contact surface and high heat-conducting and heat-accumulating properties.
The ceramic regenerator is treated with an antibacterial composition which prevents bacteria growth inside of the energy regenerator. The antibacterial properties last for 10 years.
AIR FILTERS
The two integrated air filters with total filtration rate G3 provide supply and extract air filtration. The filters prevent ingress of dust and insects into the supply air and contamination of the ventilator parts. The filters also have antibacterial treatment.
The filter cleaning is done with a vacuum cleaner or water flushing. The antibacterial solution is not removed. F8 filter is available as a specially ordered accessory, but when installed, it reduces the air flow down to 40 m 3 /h.
REVERSIBLE EC-Fan
The reversible axial fan with a EC motor. Due to the applied EC technology the fan is featured with low power consumption and silen operation. The fan motor has integrated thermal overheating protection and ball bearings for long service life
The high-tech ceramic energy accumulator with regeneration efficiency up to 97 % ensures extract air heat recovery for warming of supply air flow. Due to the cellular structure the unique regenerator has a large air contact surface and high heat-conducting and heat-accumulating properties.
The ceramic regenerator is treated with an antibacterial composition which prevents bacteria growth inside of the energy regenerator. The antibacterial properties last for 10 years.
AIR FILTERS
The two integrated air filters with total filtration rate G3 provide supply and extract air filtration. The filters prevent ingress of dust and insects into the supply air and contamination of the ventilator parts. The filters also have antibacterial treatment.
The filter cleaning is done with a vacuum cleaner or water flushing. The antibacterial solution is not removed. F8 filter is available as a specially ordered accessory, but when installed, it reduces the air flow down to 40 m 3 /h.
REVERSIBLE EC-Fan
The reversible axial fan with a EC motor. Due to the applied EC technology the fan is featured with low power consumption and silen operation. The fan motor has integrated thermal overheating protection and ball bearings for long service life
Operation In Different Mode
Regeneration Mode
Under regeneration model, the ventilators work in pair, one will extract air and the other will supply air. The fans rotate in different direction.
Supply Mode
Under supply mode, two ventilators will run simultaneously to supply air to the room
Exhaust Mode
Under exhaust mode, two ventilators will exhaust air simultaneously
Regeneration Mode
Under regeneration model, the ventilators work in pair, one will extract air and the other will supply air. The fans rotate in different direction.
Supply Mode
Under supply mode, two ventilators will run simultaneously to supply air to the room
Exhaust Mode
Under exhaust mode, two ventilators will exhaust air simultaneously
ENERGY SAVING
The ventilator operates in the heat recovery mode with two cycles can save energy by over 30% compared with the normal exhaust fan. The heat recovery efficiency is up to 97% when the air first entering the heat regenerator. It can recover the energy in the room and reduce the load on the heating system in winter.
The ventilator operates in the heat recovery mode with two cycles can save energy by over 30% compared with the normal exhaust fan. The heat recovery efficiency is up to 97% when the air first entering the heat regenerator. It can recover the energy in the room and reduce the load on the heating system in winter.
The ventilator operates in the heat recovery mode with two cycles. Two units intake/exhaust air alternately at the same time to achieve balance ventilation. It will increase the indoor comfort and make ventilation more effective. The heat and humidity in the room can be recovered during ventilating and the load on cooling system can be reduced in summer.
Specification
|
Model No.
|
AV-TTW5-W
|
|
|
||
|
Voltage
|
100V~240V AC /50-60Hz
|
|
|
||
|
Power [W]
|
6
|
7
|
7.8
|
||
|
Current [A]
|
0.04
|
0.05
|
0.06
|
||
|
Air flow in regeneration mode [m3/h]
|
20
|
40
|
50
|
||
|
Sound pressure level [dBA] 32.7
|
32.7
|
|
|
||
|
SEC
|
Class A
|
|
|
||
|
Transported air temperature [°C]
|
-20~50
|
|
|
||
|
Ingress Protection Rating
|
IP22
|
|
|
||
|
RPM
|
2000 (max)
|
|
|
||
|
Diameter of duct [mm|
|
158mm
|
|
|
||
|
Type of installation
|
Wall mounting
|
|
|
||
|
Net Weight
|
4.2kg
|
|
|
||
