Quick Details
-
Brand Name:
-
HENZE Or OEM
-
Name:
-
Self Closing Ball Valve
-
Operating Temperature:
-
-20 Deg. C~120 Deg. C
-
Operating Pressure:
-
Class150, PN10, PN16, 200WOG, 400WOG, 600WOG
-
Main Materials:
-
Brass
-
Seat/Seal Materials:
-
PTFE, RPTFE
-
Gasket:
-
PTFE
-
Design standard:
-
ASME B16.34, ISO STD
-
Structural length:
-
ANSI and Manufacture Standard
-
Connect Ends:
-
Male NPT, Female NPT, Male BSP, Femal BSP
-
Ends Standard:
-
ASME B1.20.1, ISO STD
Quick Details
-
Port Size:
-
1/2"~2"(DN15~DN50)
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
BV11F
-
Brand Name:
-
HENZE Or OEM
-
Name:
-
Self Closing Ball Valve
-
Operating Temperature:
-
-20 Deg. C~120 Deg. C
-
Operating Pressure:
-
Class150, PN10, PN16, 200WOG, 400WOG, 600WOG
-
Main Materials:
-
Brass
-
Seat/Seal Materials:
-
PTFE, RPTFE
-
Gasket:
-
PTFE
-
Design standard:
-
ASME B16.34, ISO STD
-
Structural length:
-
ANSI and Manufacture Standard
-
Connect Ends:
-
Male NPT, Female NPT, Male BSP, Femal BSP
-
Ends Standard:
-
ASME B1.20.1, ISO STD
Technical Parameters & Characteristics

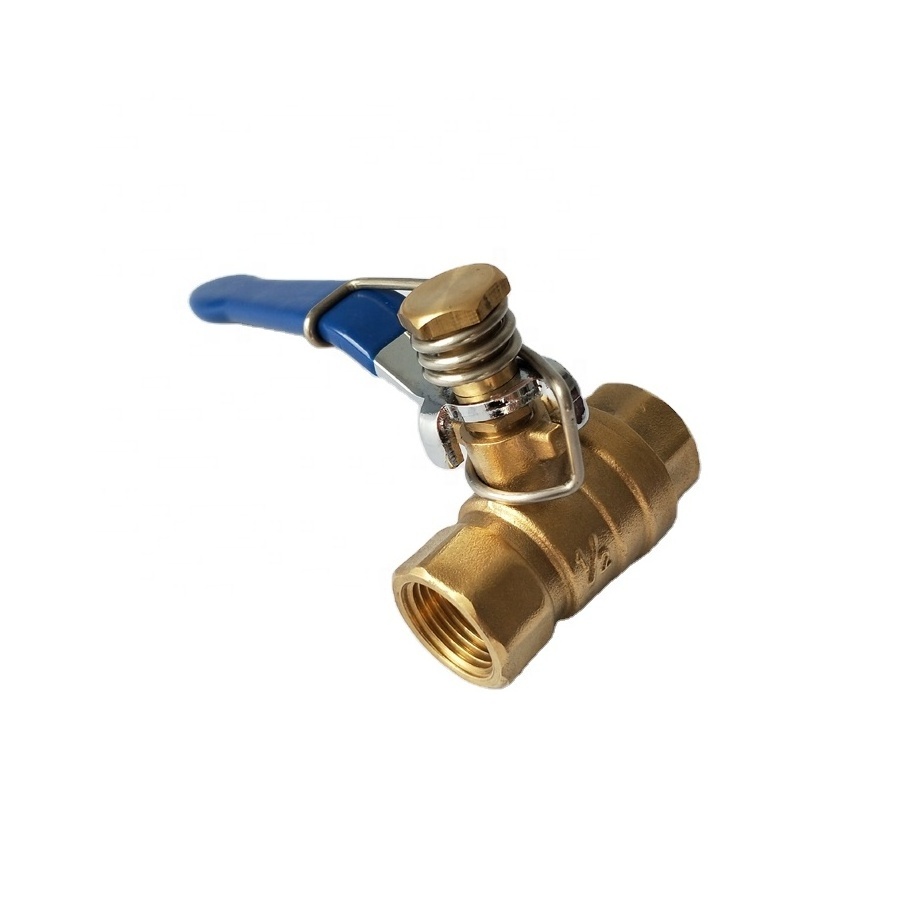

| Product Description | Brass Spring Return ball Valve Self Closing Ball Valve with deadman handle |
| Nominal Diameter | 1/2"~2"(DN15~DN50) |
| Operating Temperature | -20 Deg. C~120 Deg. C(the range of service temperature may vary for different materials) |
| Operating Pressure | Class150, PN10, PN16, 200WOG, 400WOG, 600WOG |
| Main Materials | Brass |
| Seat/Seal Materials | PTFE, RPTFE |
| Gasket | PTFE |
| Design standard | ASME B16.34, ISO STD |
| Structural length | ANSI and Manufacture Standard |
| Connect Ends | Male NPT, Female NPT, Male BSP, Femal BSP |
| Ends Standard | ASME B1.20.1, ISO STD |
| Test standard | ISO5208 |
| Operation method | Lever |
| Application | Cold/hot Water, Oil, Gas |
| Other Features 1 | Easy of Maintenances |
| Other Features 2 | Small Operating Torque |
| Other Features 3 | Renewable Seat and Ball |
| Other Features 4 | Stock is available |
| Other Features 5 | Two Piece |
Workshop Show
Machining
Testing and Inspection
Finished Products
Packing and Shipping
Service
