Forestry Machinery Firewood Processor Tree Cutting Machine / Drum Wood Chipper Equipment Wooden Chipping Machine

Forestry Machinery Firewood Processor Tree Cutting Machine / Drum Wood Chipper Equipment Wooden Chipping Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $13500

≥5 Sets

US $11900

≥10 Sets

US $9888

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 1650x580x1350mm

Weight:: 15600 KG, 8000 KG

Keywords:: Wood Chipper Making Machine

Usage:: Make Wood Chipps

Chips size:: 30*30*5mm

Raw material:: wood logs, branches, bamboo, waste wood

Product name:: Industrial Drum Wood Chipper Machine Price

Key Selling Points:: High Efficiency with large feeding size

Quick Details

Use:: Forestry machinery

Place of Origin:: henan

Brand Name:: yibao

Dimension(L*W*H):: 1650x580x1350mm

Weight:: 15600 KG, 8000 KG

Keywords:: Wood Chipper Making Machine

Usage:: Make Wood Chipps

Chips size:: 30*30*5mm

Raw material:: wood logs, branches, bamboo, waste wood

Product name:: Industrial Drum Wood Chipper Machine Price

Key Selling Points:: High Efficiency with large feeding size

Product Description

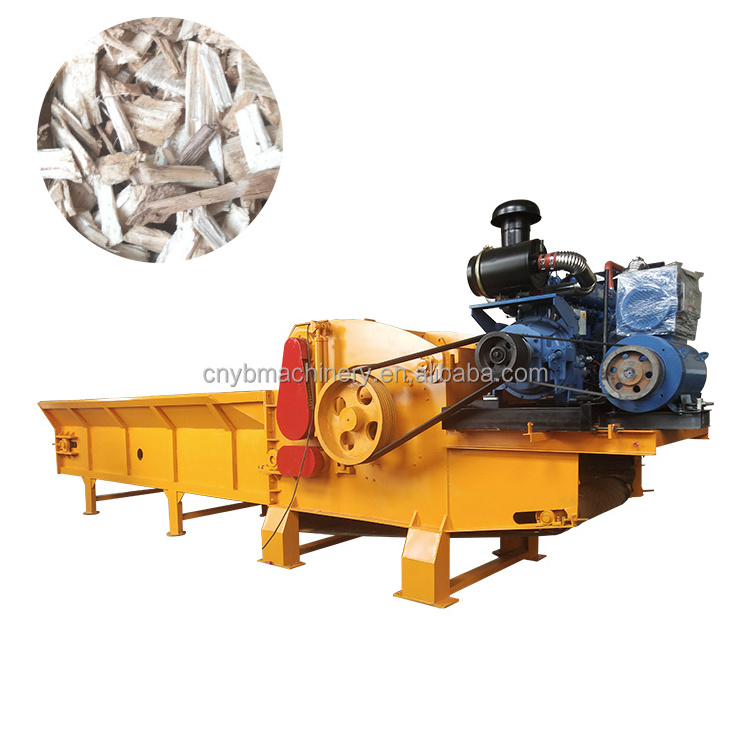

Industrial Drum Wood Chipper Machine Price

Industrial Drum Wood Chipper Machine Price is a new style and widely applied machine.
It is composed of a machine base, a knife roll, an upper and lower feeding system, a feeding system and a hydraulic buffering
system, and is mainly used for crushing materials such as logs, small-diameter wood, branches, boards, slats, and bamboo.
The crushing material can be used in paper mill, power plant, pellet factory, boiler factory...

Usage Scenarios

Crushing effect

Strong body of Industrial Drum Wood Chipper Machine Price .

trong structure ensure wood chipper run steadily without ground foundation. and the blade material is H13, anti-wearing,
prolonging service life, which can cut hard wood.
Large inlet size, applied to a variety of materials. feeding method adopts feeding chain plate(YB1600 steel plate material), feeding
material smoothly and evenly.

Feeding system---Belt Conveyor .

Normally, Yi Bao Machinery adopts two Feeding System: feeding blet conveyor or feeding chain conveyor (according to different
material) For large capacity wood chipper wood crusher , it usually adopts chain conveyor, for small model wood chipper, it
usually adopts belt conveyor.

Feed roller of Industrial Drum Wood Chipper Machine Price .

Feed roller adopts 45# Mn steel, with strong abrasion and precise bite force, the strength and performance higher than welded
parts.

Spare Parts---Rotary Knife .

65# manganese steel, anti-wearing, prolonging service life, which can cut hard wood.

Blade thickness 20mm, thin 1mm per grinding. Lifetime:4-6 months

Hammer type .

For our heavy duty wood crusher, there is hammer rotor for your raw material. It can crush the construction waste, pallet etc..

Specification

model	600	800	1000	1300	1600
Cutter roller diameter	600mm	800mm	1000mm	1300mm	1600mm
Cutter roller speed	650r/min	650r/min	650r/min	650r/min	650r/min
throughput	6-8T	8-10T	10-12T	15-20T	20-25T
Number of tools	3	3	3	3	3
Number of hooks	12	16	20	24	28
Tool material	65Mn	65Mn	65Mn	65Mn	65Mn
Host power	55kw-4	90kw-4	110kw	132kw-6	160kw-4
Finished product particle size	≤100mm（Adjustable）	≤100mm（Adjustable）	≤100mm（Adjustable）	≤100mm（Adjustable）	≤100mm（Adjustable）
screen mesh	70*70mm	70*70mm	70*70mm	70*70mm	70*70mm
