- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
BK-GPM
-
Thickness:
-
6-300mm
-
Size:
-
4*8 inch, 4x8(1220x2440x12.7mm)
-
Color:
-
white,black,yellow,red,blue and more
-
Raw material:
-
100% Virgin HDPE
-
Application:
-
Construction, civil engineering, drilling ,landscaping
-
Feature:
-
Waterproof,light, portable,easy to use, sample to install
-
Certificate:
-
ISO9001:2008
-
Shape:
-
Sheet\board\rod\plate\rod\bar\strips\shaped Parts
-
Density:
-
0.93-0.98g/cm3; temporary road mat
-
Abrasion:
-
80,steel=100 ; ground mat
-
Breaking Elongation:
-
>300% ; road mat
Quick Details
-
Processing Service:
-
Cutting, Moulding
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Beckwell
-
Model Number:
-
BK-GPM
-
Thickness:
-
6-300mm
-
Size:
-
4*8 inch, 4x8(1220x2440x12.7mm)
-
Color:
-
white,black,yellow,red,blue and more
-
Raw material:
-
100% Virgin HDPE
-
Application:
-
Construction, civil engineering, drilling ,landscaping
-
Feature:
-
Waterproof,light, portable,easy to use, sample to install
-
Certificate:
-
ISO9001:2008
-
Shape:
-
Sheet\board\rod\plate\rod\bar\strips\shaped Parts
-
Density:
-
0.93-0.98g/cm3; temporary road mat
-
Abrasion:
-
80,steel=100 ; ground mat
-
Breaking Elongation:
-
>300% ; road mat
Product Description

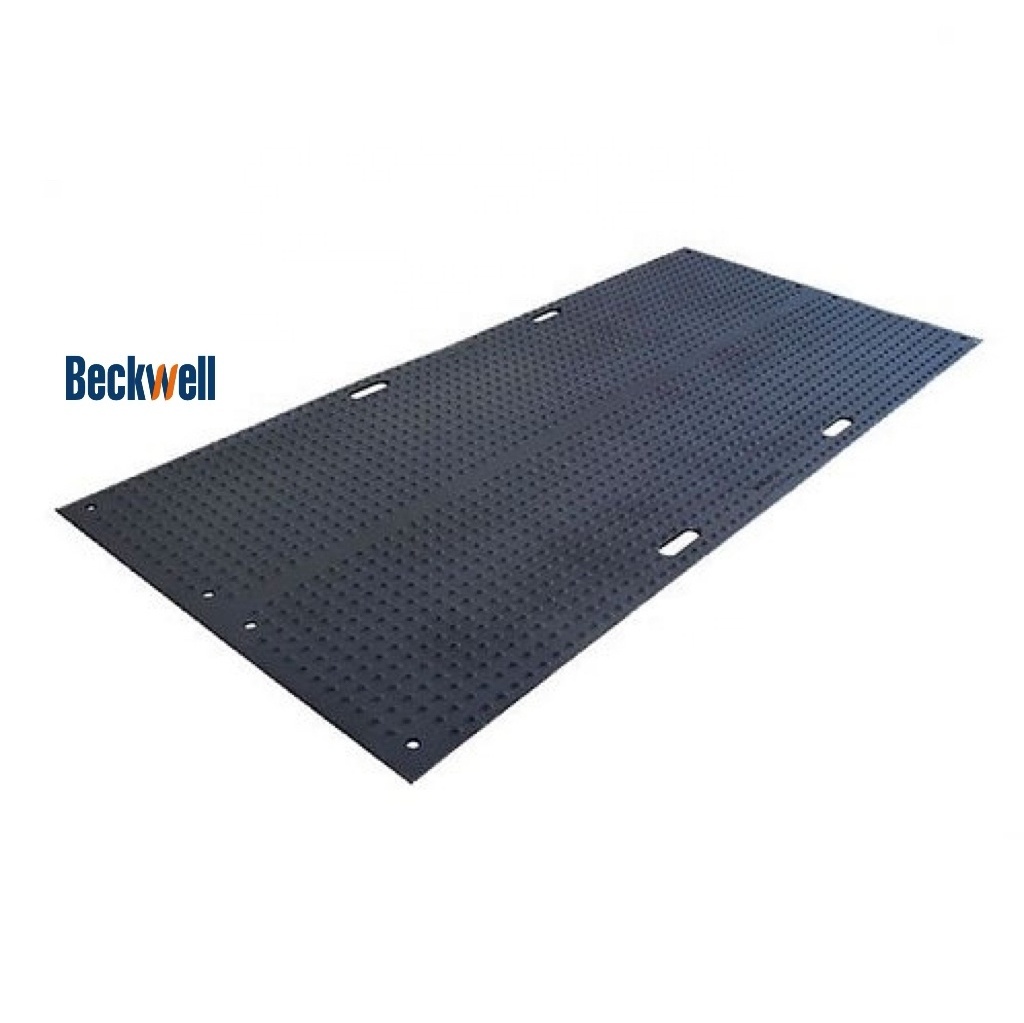

Ground protection mat (4x8) is a durable matting system that provides a protective support base for vehicles and equipment. Mats are simply laid in place over the existing ground surface, providing a solid surface for access or a temporary roadway for a variety of applications.
IDEAL FOR:
Use over grass, mud, gravel, sand and more
Ground protection mats can be interconnected using our tip and lock Connector Links, which requires no tools for installation.
The Connector Links consists of a welded flat metal link with curved ends that slot into the pre-drilled connector holes on each mat, such that when the adjacent mat is dropped into place it "locks" the sections together. To remove mats and links, simply tip the link back at a 90 degree angle and remove from the connector hole in each mat
Specification
|
Physical properties
|
|
|
|
|||
|
Properties
|
Test Method
|
Unit
|
Value
|
|||
|
Density at 23°C
|
ASTM D 1505
|
g / cm3
|
0.96-0.98
|
|||
|
Hardness
|
ASTM D 2240
|
Shore D
|
65-70
|
|||
|
Tensile Strength at Yield
|
ASTM D 638
|
MPa
|
21
|
|||
|
Tensile Strength at Break
|
ASTM D 638
|
MPa
|
35
|
|||
|
Elongation at Break
|
ASTM D 638
|
%
|
>1000
|
|||
|
Flexural Modulus
|
ASTM D 790
|
MPa
|
850
|
|||
|
Izod Impact Strength
|
ASTM D 256
|
J/m
|
>500
|
|||
|
Vicat Softening Point
|
ASTM D 1525
|
°C
|
150
|
|||
|
Water absorption
|
ASTM D570
|
/
|
Nil
|
|||
|
Size
|
Thickness
|
Color
|
|
1220x2440mm(4'x8')
|
10mm-50mm
|
Black, Green, Blue, Yellow
Customizable
|
|
910x2440mm(3'x8')
|
|
|
|
610x2440mm(2'x8')
|
|
|
|
910x1830mm(3'x6')
|
|
|
|
610x1830mm(2'x6')
|
|
|
|
610x1220mm(2'x4')
|
|
|
|
Customized
|
|
|
Finished products
Our advantages
Company profile
Beckwell & plastic Co.,Ltd is an OEM manufacturer of high-quality HDPE (high-density polyethylene), PP (polypropylene) and UHMW PE (ultra-high molecular weight polyethylene) sheets and their finished products.
The reliable and durable will be provided to protecting the client's cargo during shipping according to the condition of the
goods, which is include Plywood, Pallet, Strapping etc. Huarun's vision is to become a global leader in plastic sheet
manufacturing and a trusted partner for customers worldwide.
Founded in 2013 with 30000 square meters production area, Beckwell has grown to become one of the leading suppliers of plastic sheets in China. The products are made from high-quality raw materials sourced from reliable suppliers. Such as Ground protection mat, Ice rink tiles, Outrigger pad, CNC machined parts, Marine fender facing pad, Chain guide rail, Hopper liner, Chute liner, Borated polyethylene sheet, PP tank, and more.
Beckwell has advanced equipment and technology to ensure consistent quality and performance. Such as 6 units of extrusion lines, 13 units of hydraulic machines, 24 units of CNC milling machines, 10 units of drilling machines and 1 lab. Regarding the certificate, the ISO 9001 certification has been obtained for its quality management system. Beckwell has also won several awards for its innovation and excellence in plastic sheet manufacturing.
The reliable and durable will be provided to protecting the client's cargo during shipping according to the condition of the
goods, which is include Plywood, Pallet, Strapping etc. Huarun's vision is to become a global leader in plastic sheet
manufacturing and a trusted partner for customers worldwide.
Applications
Our Workshop
The company has rich experience, strong strength and participated inmany high-end exhibitions;Many partners from other countries are visiting
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
