Quick Details
-
Brand Name:
-
Nairy
-
Dimension(L*W*H):
-
3265*2750*3395mm
-
Weight:
-
16130 KG
-
Marketing Type:
-
New Product
-
Applicaton:
-
Mining Quarry
-
Certification:
-
ISO
-
Features:
-
High Efficiency Low Cost
-
Inlet size(mm):
-
1540*930
-
Maximum feed particle size (mm):
-
400
-
Rotor diameter (mm):
-
1300
-
Rotor width (mm):
-
1500
Quick Details
-
Application:
-
Mining, Quarry
-
Capacity(t/h):
-
200-320
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Nairy
-
Dimension(L*W*H):
-
3265*2750*3395mm
-
Weight:
-
16130 KG
-
Marketing Type:
-
New Product
-
Applicaton:
-
Mining Quarry
-
Certification:
-
ISO
-
Features:
-
High Efficiency Low Cost
-
Inlet size(mm):
-
1540*930
-
Maximum feed particle size (mm):
-
400
-
Rotor diameter (mm):
-
1300
-
Rotor width (mm):
-
1500
Product Overview
Introduction Of

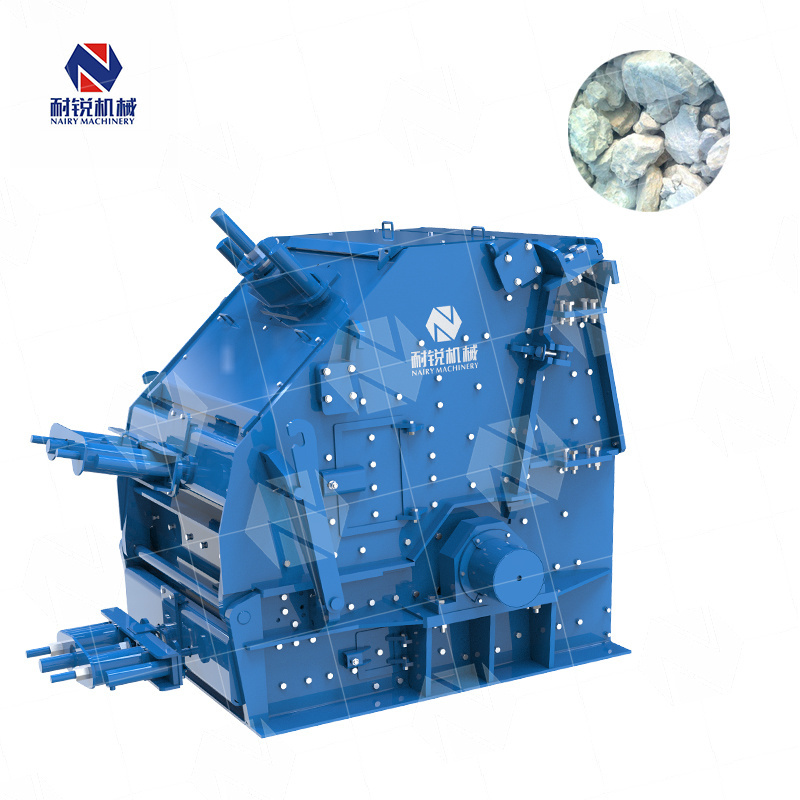

Large Mouth Hydraulic Impact Crusher
Impact Crusher can crush large, medium and small sized materials (granite, limestone, concrete ,etc.) It is widely used in metallurgy, mine, cement, chemical engineering, fire resistant materials, ceramics and other industrial sectors, as well as in the expressway construction, water conservancy project, building crushed stone, and machine-made sand process fields, etc.
The equipment for crushing particle size includes jaw crusher, impact crusher, cone crusher, hammer crusher, and other crushing equipments. At present, through practice, its comprehensive performance is better than that of cone crusher and hammer crusher. Traditional crushing equipment has many models and large output and it is the first choice for mine crushing.
Application Of
Large Mouth Hydraulic Impact Crusher
The main crushed materials are river pebbles, granite, basalt, iron ore, limestone, quartz stone and diabase, etc.
Large Mouth Hydraulic Impact Crusher
Working Principle
Impact crushers use impact energy to crush materials. When operating, driven by the motor, the rotor rotates at a high speed. When the material enters the action area of the blow bar, it collides with the blow bar on the rotor and breaks, and then is thrown to the impact device to be crushed again, and then bounces back from the impact liner. Re-crushing in the action area of the blow bar, this process is repeated, the material enters the first, the second, and the third counter-attack chambers from large to small and repeats crushing until the material is crushed to the required particle size and discharged from the discharge port. Adjusting the gap between the impact frame and the rotor can achieve the purpose of changing the material discharge granularity and material shape.
Features of
Large Mouth Hydraulic Impact Crusher
1) A novel structure, unique, stable operation, multi cavity uniform broken,suitable for crushing hard rock.
2) Low energy consumption, high yield and high crushing ratio for the size of crushed materials from 10-20 mm up to 50-60 mm and other sizes.
3) With the shaping function, product is cubic shape, high packing density, adjustable discharge size, simplified crushing process.
4) All the whole plate structure to discharge is small size and cubic, no inner crack.
5) Feeding port is low and big, easy to arrange production line and increase the feed size.
6) Impact crusher uses new resistant materials, so the plate hammer, impact plate and lining board has longer service life.
7) Easy to use and repair; it can be used as selective crushing.
8) Unique tooth type, impact lining board, especially suitable for crushing hard rock, high efficiency and energy saving.
Product Specifications
|
Model
|
|
Power
|
Feeding port size（mm）
|
Max feed particle size (mm)
|
Capacity（t/h）
|
Dimension(mm)
|
Weight（kg）
|
|
|
Coarse crushing series
|
NIC1313
|
200
|
1320*1225
|
700
|
200-250
|
3396*2560*3765
|
17800
|
|
|
|
NIC1415
|
250
|
1540*1320
|
800
|
250-400
|
3395*3790*4000
|
21815
|
|
|
|
NIC1620
|
400
|
2040*1634
|
1000
|
600-800
|
3935*3600*4950
|
40500
|
|
|
|
NIC2023
|
1000
|
2310*1986
|
1200
|
800-1200
|
5731*4424*6000
|
74230
|
|
|
Medium crushing series
|
NIC1110
|
160
|
1020*820
|
300
|
80-150
|
2826*2106*3055
|
9250
|
|
|
|
NIC1213
|
200
|
1320*879
|
300
|
180-280
|
3170*2529*3145
|
12780
|
|
|
|
NIC1315
|
250
|
1540*930
|
400
|
200-320
|
3265*2750*3395
|
16130
|
|
|
|
NIC1520
|
400
|
2040*995
|
400
|
350-600
|
3818*3400*3950
|
27100
|
|
Important Reminders
1. The technical parameters are for reference only.
2. The product quotation is for reference only, based on the purchased model and configuration.
3. For more information, please give us a call or consult customer service.
