Quick Details
-
Formaldehyde Emission Standards:
-
E1
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
chanta
-
Model Number:
-
F17 film faced plywood
-
Product name:
-
AS 6669 STANDARD F17 Formwork film faced plywood for Australia
-
Keywords:
-
f17 film faced plywood
-
Core:
-
Poplar Hardwood Combi
-
Size:
-
1220mm*2440mm
-
Thickness:
-
18mm
-
Glue:
-
WBP Phenolic
-
Face/back:
-
dynea brown film/red film /black film
-
Certification:
-
CE ISO9001 FSC CARB
-
Use:
-
Constructon
-
Density:
-
500-630kg/m3
Quick Details
-
Warranty:
-
1 Year
-
Project Solution Capability:
-
graphic design
-
Application:
-
Outdoor
-
Formaldehyde Emission Standards:
-
E1
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
chanta
-
Model Number:
-
F17 film faced plywood
-
Product name:
-
AS 6669 STANDARD F17 Formwork film faced plywood for Australia
-
Keywords:
-
f17 film faced plywood
-
Core:
-
Poplar Hardwood Combi
-
Size:
-
1220mm*2440mm
-
Thickness:
-
18mm
-
Glue:
-
WBP Phenolic
-
Face/back:
-
dynea brown film/red film /black film
-
Certification:
-
CE ISO9001 FSC CARB
-
Use:
-
Constructon
-
Density:
-
500-630kg/m3
|
Product
|

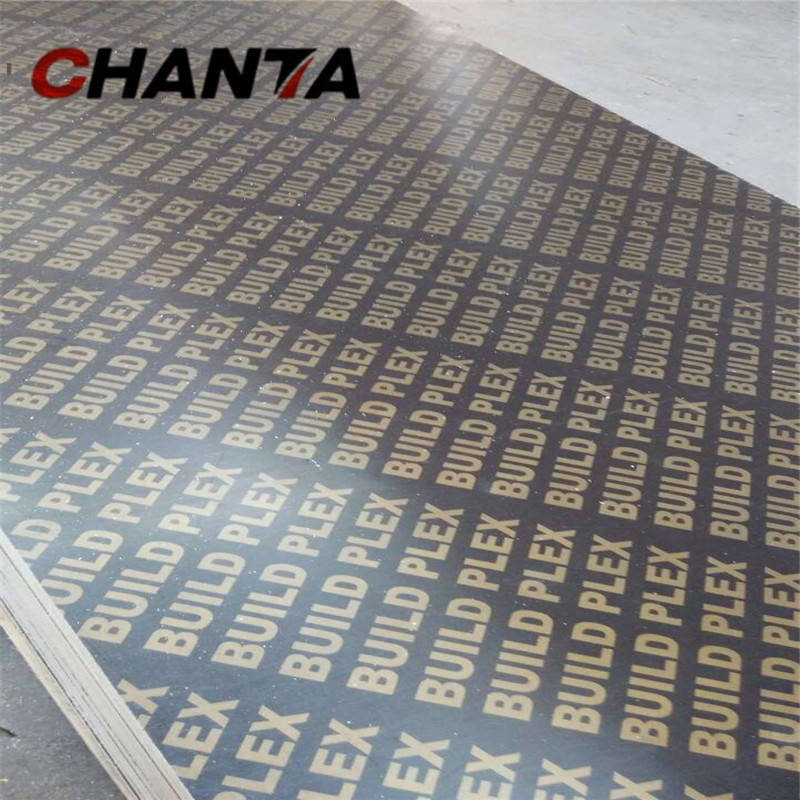

Film faced plywood
|
Species
|
Hardwood
|
|
|||
|
Size
|
18mm*1220*2440 or customize
|
Glue
|
WBP Phenolic
|
|
|||
|
Film
|
Dynea Brown
|
Grammage
|
120g/㎡
|
|
|||
|
Moisture Content
|
8%-10%
|
|
|
|
|||
|
Density
|
630kg/cbm
|
|
|
|
|||
|
Bonding Quality
|
Bonding Quality
|
Max：1.90Mpa
Min: 0.85Mpa
|
|
|
|||
|
|
Damage Rate
|
70%
|
|
|
|||
|
Bending Modules of Elasticty
|
Longitudinal
|
9500Mpa
|
|
|
|||
|
|
Lateral
|
7500Mpa
|
|
|
|||
|
Bending Strength N/mm
|
Longitudinal
|
85.1Mpa
|
|
|
|||
|
|
Lateral
|
68.3Mpa
|
|
|
|||
|
Cycle Life
|
About 20-30 repeated using times according to formwork application projects.
|
|
|
|
|||
