Quick Details
-
Model Number:
-
AZ-5208
-
Protection Level:
-
65
-
Operating Temperature:
-
-10°C~+80°C
-
Max. Current:
-
10A
Quick Details
-
Max. Voltage:
-
300V
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
AP, Auspicious
-
Model Number:
-
AZ-5208
-
Protection Level:
-
65
-
Operating Temperature:
-
-10°C~+80°C
-
Max. Current:
-
10A

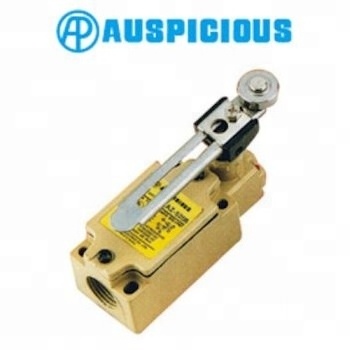

AZ-5208 LIMIT SWITCH
|
FEATURES
|
|
CHARACTERISTICS
| Operating Speed | 1mm to 2m/sec. |
| Operating Frequency |
Mechanically: 120 operations/min. Electrically: 30 operations/min. |
| Contact Resistance | 15m Ω max. (initial) |
| Insulation Resistance | 100m Ω min. (at 500VDC) |
| Dielectric Strength |
1,000VAC, 50/60HZ for 1 minute between non-continuous terminals. 2,200VAC, 50/60HZ for 1 minute between each terminal and non-current-carrying metal part and between each terminal and ground. |
| Vibration | Malfunction durability: 10 to 55HZ 1.5mm double amplitude |
| Shock |
Mechanical durability: Approx. 1,000m/sec2 (approx. 100G's) Malfunction durability: Approx. 300m/sec2 (approx. 30G's) |
| Ambient Operating |
Operating: -10°C to +80°C
|
| Temperature | |
| Humidity |
95% RH max. |
| Service Life |
Mechanically: 15,000,000 operations min. Electrically: 500,000 operations min. |
| Degree of Protection |
IEC 529 class IP67 |
Please visit www.auspicious.com.tw for more detail information.
