Hot Sales QT4-15 Fully Automatic Concrete Machine with Cement Block Brick Making Machine by Hollow Brick Making Machinery
Hot Sales QT4-15 Fully Automatic Concrete Machine with Cement Block Brick Making Machine by Hollow Brick Making Machinery
Hot Sales QT4-15 Fully Automatic Concrete Machine with Cement Block Brick Making Machine by Hollow Brick Making Machinery
Hot Sales QT4-15 Fully Automatic Concrete Machine with Cement Block Brick Making Machine by Hollow Brick Making Machinery
Hot Sales QT4-15 Fully Automatic Concrete Machine with Cement Block Brick Making Machine by Hollow Brick Making Machinery
Hot Sales QT4-15 Fully Automatic Concrete Machine with Cement Block Brick Making Machine by Hollow Brick Making Machinery
Hot Sales QT4-15 Fully Automatic Concrete Machine with Cement Block Brick Making Machine by Hollow Brick Making Machinery
Hot Sales QT4-15 Fully Automatic Concrete Machine with Cement Block Brick Making Machine by Hollow Brick Making Machinery

Hot Sales QT4-15 Fully Automatic Concrete Machine with Cement Block Brick Making Machine by Hollow Brick Making Machinery

FOB Reference Price: Get Latest Price
≥1 Sets
US $4800
≥5 Sets
US $3800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brick size:
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
Place of Origin:
shandong,china
Brand Name:
shiyue
Voltage:
380v,50HZ
Dimension(L*W*H):
7100*1600*2610mm
Marketing Type:
New Product 2022
Weight (KG):
5000 kg
Raw material:
cement 8%-10%,sand 30%-40% ,stone:50%-60%
color:
according to customer need
Hydraulic pressure:
yes
Function:
make brick ,paving,curbstone

Quick Details

Type:
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
Brick Raw Material:
Cement,Concrete,Sand,Crushed Stone
Production Capacity (Pieces/8 hours):
4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours
Brick size:
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
Place of Origin:
shandong,china
Brand Name:
shiyue
Voltage:
380v,50HZ
Dimension(L*W*H):
7100*1600*2610mm
Marketing Type:
New Product 2022
Weight (KG):
5000 kg
Raw material:
cement 8%-10%,sand 30%-40% ,stone:50%-60%
color:
according to customer need
Hydraulic pressure:
yes
Function:
make brick ,paving,curbstone
Products Description

Introduction of hot sales construction machines QT4-15 concrete block manufacturing machine price


1.Equipped with color face material feeding device,it could make various color face bricks,through-body Environmental protection bricks,road curb rocks,hydraulic blocks and sod bricks and so on.
2.It produces various bricks/blocks including color-face bricks(layered material feeding), through-body tiles,lock linkage
blocks,road curb bricks,hydraulic blocks,hollow blocks, perforated bricks,and standard bricks etc.
3.It is a compact machine with electric and hydraulic system,each procedure action locks with each other to guarantee the machine operate safely,easily and dependablely.

Parameter of hot sales construction machines QT4-15 concrete block manufacturing machine price

Machine Dimensions
7100*1600*2160mm
Total weight
5500KGS
Main Vibration
platform vibration
Pallet size
900*500mm
Overall power
27.5KW
Vibration frequency
4600r/min
Molds
As customer’s requirement
Rated pressure
21MPA hydraulic pressure
Finished blocks
hollow blocks, paver,solid blocks, curbstone,porous blocks,stander bricks etc

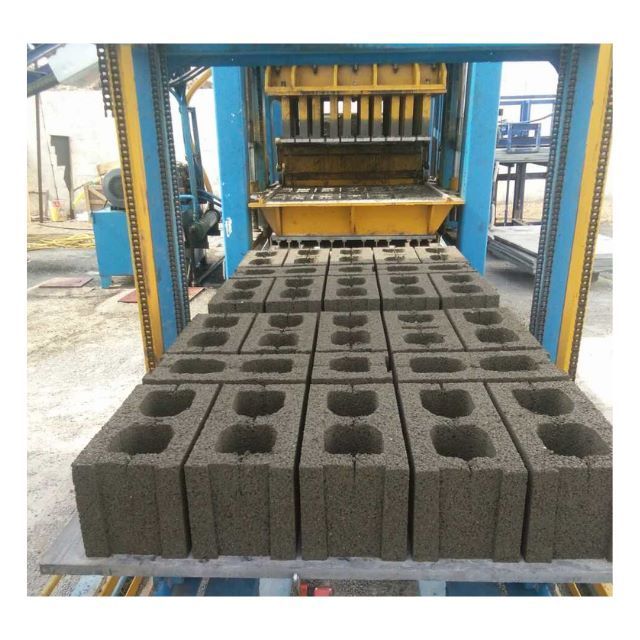

Block Machine Pictures

Hydraulic station

1.Guarantee the blocks with good quality, smooth appearance, high density 2.automatically adjust the oil flow and pressure

Carburized mould

1.`improve the using lifetime of machine by 50%2.Hardness reached up to HRC 52

Siemens motor

1.Our vibration system adopt Siemens brand motors, vibration evently strong and quickly2.It is more stable, can update the
production perimeters

Optional equipment

1.According to your budget, efficiency and labor requirements, you can choose the configuration you need. The higher the degree of automation, the faster the efficiency.
2.You don't need take many times to find supplier to build a block machine factory, we will
provide integrated solution for block machine
3.No matter which project you perfer, actually you can reclaim your cost less than one year
Theoretical Blocks Capacity
Item
Block size(mm)
Pcs/ mould
Pcs/ mould
Pcs/ 8 Hours
Hollow block
400x200x200
4
576-720
4608-5760
Hollow block
400x150x200
5
720-900
5760-7200
Paver bricks
200x100x60
14
1680-2016
13440-16128

You can use one machine produce different type blocks just changing moulds

It can produce hollow/solid blocks, riverside bricks, revetment bricks, square bricks, grassed bricks ,paver, interlocking blocks,curbstone,colored paver,etc with different moulds.If you have special shape,our engineer also can special design mould for you.
Packaging And Shipping

Packing is nude package or plastic according to customer need

1. The whole brick machine production line equipment is mainly the full container sea shipping,
2. Brick machine equipment finish manufacturing and testing, next to clean up, and then do another paint protection,
3. Before shipment to use plastic film winding, wrapped the entire brick machine in case of water or moisture,
4. Then load brick machines into the container by forklift,
5. During loading to tighten the machine with reinforcement ring in container, so as to avoid the damage by transport bumps on the brick machine.
Our Service

Pre-sale Service

(1) Professional suggestions (raw material matching, machine selection, plan
The condition of build factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material,
capacity and the size of brick)
(3) Visit our factory

After-sale Service

(1) The engineer will guide to carry out the plant at the clients side.
(2) Set up, fix,and operate
(3) 24 hours service
