- Product Details
- {{item.text}}
Quick Details
-
Size:
-
12400mm*2500mm*1575mm
-
Place of Origin:
-
Tianjin, China
-
Product name:
-

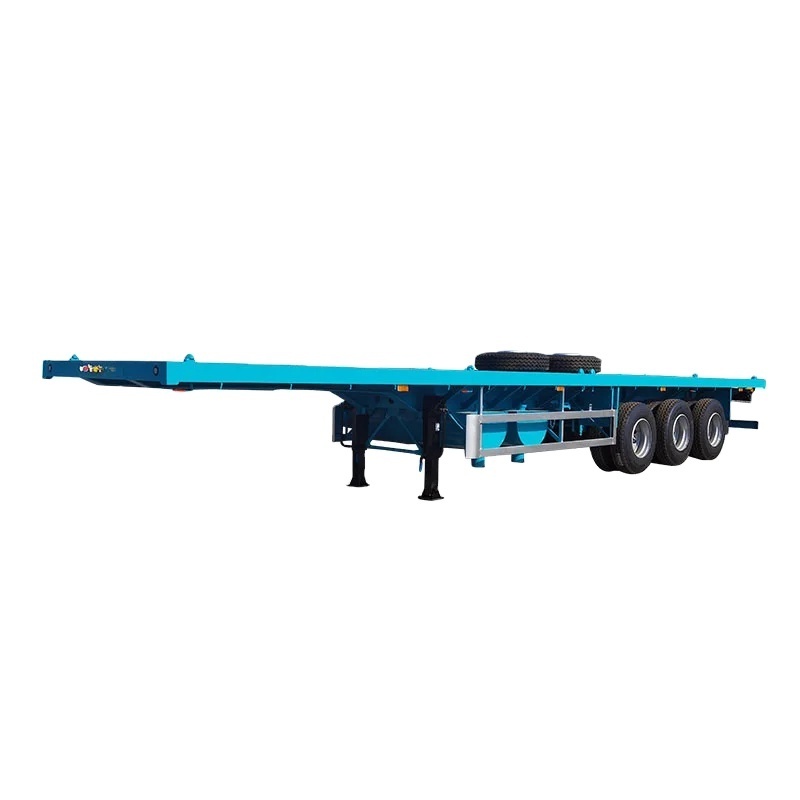

Container Transportation Trailer
-
Painting:
-
Final Paint
-
Axle:
-
FUWA
-
Function:
-
Transport 20ft 40ft Container
-
Suspension:
-
Mechanical suspension
-
Landing Gear:
-
JOST brand
-
King pin:
-
JOST brand 2.0 or 3.5 inch
-
Tire:
-
12.00R22.5
-
Tare Weight:
-
About 6.2 T
-
Rim:
-
9.00-22.5/8.00-20/8.5-20
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
80T
-
Brand Name:
-
Yuetong
-
Size:
-
12400mm*2500mm*1575mm
-
Place of Origin:
-
Tianjin, China
-
Product name:
-
Container Transportation Trailer
-
Painting:
-
Final Paint
-
Axle:
-
FUWA
-
Function:
-
Transport 20ft 40ft Container
-
Suspension:
-
Mechanical suspension
-
Landing Gear:
-
JOST brand
-
King pin:
-
JOST brand 2.0 or 3.5 inch
-
Tire:
-
12.00R22.5
-
Tare Weight:
-
About 6.2 T
-
Rim:
-
9.00-22.5/8.00-20/8.5-20
Products Description
|
Yuetong Automobile Industry (Tianjin) Co.,Ltd.
|
|
|
|
Model number
|
LYT9400JPYT
|
|
|
Outer Dimension
|
12400mm*2500mm*1575mm
|
|
|
Tare weight
|
About 6.2 T
|
|
|
Main beams
|
Height: 500mm, upper plate is 14mm, middle plate is 8mm, Down plate is 16mm; Material is Q345B Steel.
|
|
|
Axle
|
13 T/16T,FUWA/BPW Brand
|
|
|
Landing gear
|
FUWA/BPW/YUETONG brand
|
|
|
King Pin
|
JOST 2.00 or 3.5 inch
|
|
|
Suspension
|
Mechanical suspension (Germany Type or America Type) or Air suspension
|
|
|
Leaf Spring
|
90(W)mm*13(Thickness)mm*10 Layer
|
|
|
Brake
System |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two pieces of 45L air tanks
|
|
|
Rim
|
9.00-22.5/8.00-20/8.5-20 China Brand
|
|
|
Tire
|
12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
|
|
|
ABS
|
Optional
|
|
|
Valve
|
WABCO valve
|
|
|
Electrical system
|
Voltage: 24 Volt
Receptacle: 7 way socket standard, China Front lamp: White Side marker lamp: White & Red |
|
|
Tool box
|
1 pc, or according to the requirement of the buyer
|
|
|
Painting
|
Complete Chassis sand blasting to clean rust, l coat of anticorrosive prime, coats of final paint
|
|
|
Shipping Terms
|
By Bulk Cargo, RORO or 40HQ Containers
|
|
