Zhejiang Zhenzhong brand DZ60A vibratory hammer is one of the most popular size vibratory hammer we had in our product line. It is small but very easy to operate for common projects .
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ZHENZHONG
-
Weight:
-
4320 kg
-
Dimension(L*W*H):
-
2.24*1.37*1.21 m
-
Certification:
-
ISO9001:2008
-
After Warranty Service:
-
Online support
-
motor power (kw):
-
60KW
-
eccentric moment (nm):
-
360
-
vibratory speed (r/min):
-
1100
-
unloaded amplitude (mm):
-
0~10
-
centrifugal force (kn):
-
0~486
-
max. extracting force (kn):
-
200
Quick Details
-
Efficiency:
-
High Efficiency
-
Piling Speed(m/min):
-
7-10m/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZHENZHONG
-
Weight:
-
4320 kg
-
Dimension(L*W*H):
-
2.24*1.37*1.21 m
-
Certification:
-
ISO9001:2008
-
After Warranty Service:
-
Online support
-
motor power (kw):
-
60KW
-
eccentric moment (nm):
-
360
-
vibratory speed (r/min):
-
1100
-
unloaded amplitude (mm):
-
0~10
-
centrifugal force (kn):
-
0~486
-
max. extracting force (kn):
-
200
Product Description
Product Application
Zhenzhong brand DZ60A vibratory hammer is one of the most popular vibratory hammer we had in our product line. It is small but very easy to operate for lots of projects .
|
motor power
|
kw
|
60
|
|
frequency
|
r/min
|
1000
|
|
eccentric moment
|
Nm
|
360
|
|
centrifugal force
|
KN
|
450
|
|
Amplitude
|
mm
|
9.6
|
|
Max. Extraction force
|
KN
|
200
|
|
Dimensions H
|
m
|
2.24
|
|
Dimensions L
|
m
|
1.21
|
|
Dimensions W
|
m
|
1.37
|
|
Total weight
|
kg
|
4320
|
|
wire cable
|
mm²
|
35
|
|
clamp
|
single
|
|
|
diameter of the pile
|
|
|
|
generator capacity
|
kw
|
200
|
|
Min.crane capacity
|
t
|
35
|
Main Features
This series of vibratory hammer has specially designed electric motor, which could grately reduce fault operation of the machine and extend the life span of the equipment.
1.Easy operated and Easy mainteined.
2.Versatile.Could be applied to gravel pile,sand pile.sheet pile and so on.
3.An ideal piling equipment for bridge, port,railway,road's construction work.
Characteristic
This series of vibratory hammer has specially designed electric motor, which could greatly reduce fault
operation of the machine and extend the life span of the equipment.
1.Easy operated and Easy maintained.
2.Versatile.Could be applied to gravel pile,sand pile.sheet pile and so on.
3.An ideal piling equipment for bridge, port,railway,road's construction work.
1.It is a hammer with higher effective, widely applied to the work including piling with concrete, piling with broken stones,
piling with lime, piling with sand bags, plastic sheet water discharging piling.
1. Assembled with our hydraulic clamp, it can extract steel piles and concrete piles, it is applicable for most regions in our
own country. It is a good equipment for the foundations in building, road, highways, railways, airport, bridges, harbors and docks
Detailed Images

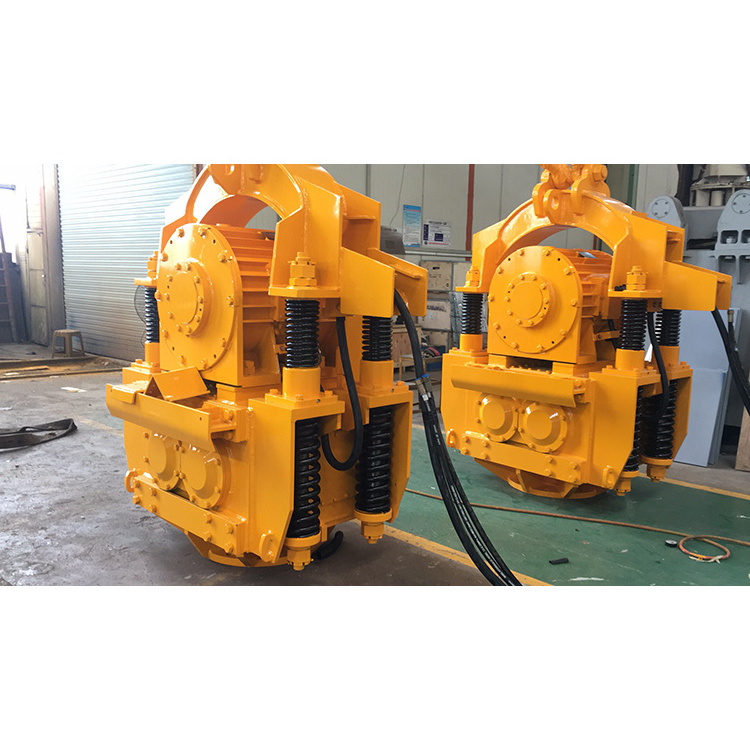

VIBRO HAMMER
Brand: ZHENZHONG
Domestic famous engines, strong driving force
SINGLE CLAMP/SHEET PILE CLAMP
Brand:
ZHENZHONG
The single clamp is uesed to clamp the different kinds of piles.
CONTROL BOX
Brand: ZHENZHONG
It is used to control the vibro hammer and clamps
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
8.75m³
|
|
|
Weight
|
6920kg
|
|
|
Packaging Details
|
The normal package is control box.
The vibro hammer dimensions is 2280×1700×1600,the weight is 4920kg.
The clamp dimensions is 870×800×1150,the weight is 1000.
The control box dimensions is 1300×860×1570,the weight is 1000kg.
|
|
FAQ
Q. Can the price be discounted?
A. Products due to various configuration issues such as accessories, you can bargain, welcome to inquire
Q. Where are the products more advantageous
?
A. Customer can choose the model they need, or they provide the pile dimension and ground condition report for us, we can recommend the suitable product to them.
Q. Why choose you?
A. our company are specialized on the pile driver for 37 years, we have a lot of experience on it. So if you have technical problems and difficulties on choosing the suitable machine, please find us.
Q. Can you customize?
A. we can do the OEM.
Q. Does the product have after sales service?
A. More services we can provided:
1, Great quality with reasonable price.
2,OEM Support.
3, After-sales Service Overseas.
