Quick Details
-
Max. Turned Length (mm):
-
400 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WELLON
-
Model Number:
-
WM210V
-
Voltage:
-
As customer request
-
Dimension(L*W*H):
-
900x500x500
-
Weight (KG):
-
80 KG
-
Swing over cross slide:
-
110mm
-
Distance between centers:
-
400mm
-
Width of bed:
-
100mm
-
Spindle bore:
-
21mm
-
Spindle taper:
-
MT3
-
Number of spindle speeds:
-
Variable
-
Range of spindle speeds:
-
50-2500rpm
-
Number of metric threads:
-
10/0.5-3mm
-
Number of imperial threads:
-
8/8-44 T.P.I
Quick Details
-
Max. Length of Workpiece (mm):
-
400
-
Machining Capacity:
-
Light Duty
-
Spindle Bore(mm):
-
21
-
Max. Turned Length (mm):
-
400 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WELLON
-
Model Number:
-
WM210V
-
Voltage:
-
As customer request
-
Dimension(L*W*H):
-
900x500x500
-
Weight (KG):
-
80 KG
-
Swing over cross slide:
-
110mm
-
Distance between centers:
-
400mm
-
Width of bed:
-
100mm
-
Spindle bore:
-
21mm
-
Spindle taper:
-
MT3
-
Number of spindle speeds:
-
Variable
-
Range of spindle speeds:
-
50-2500rpm
-
Number of metric threads:
-
10/0.5-3mm
-
Number of imperial threads:
-
8/8-44 T.P.I

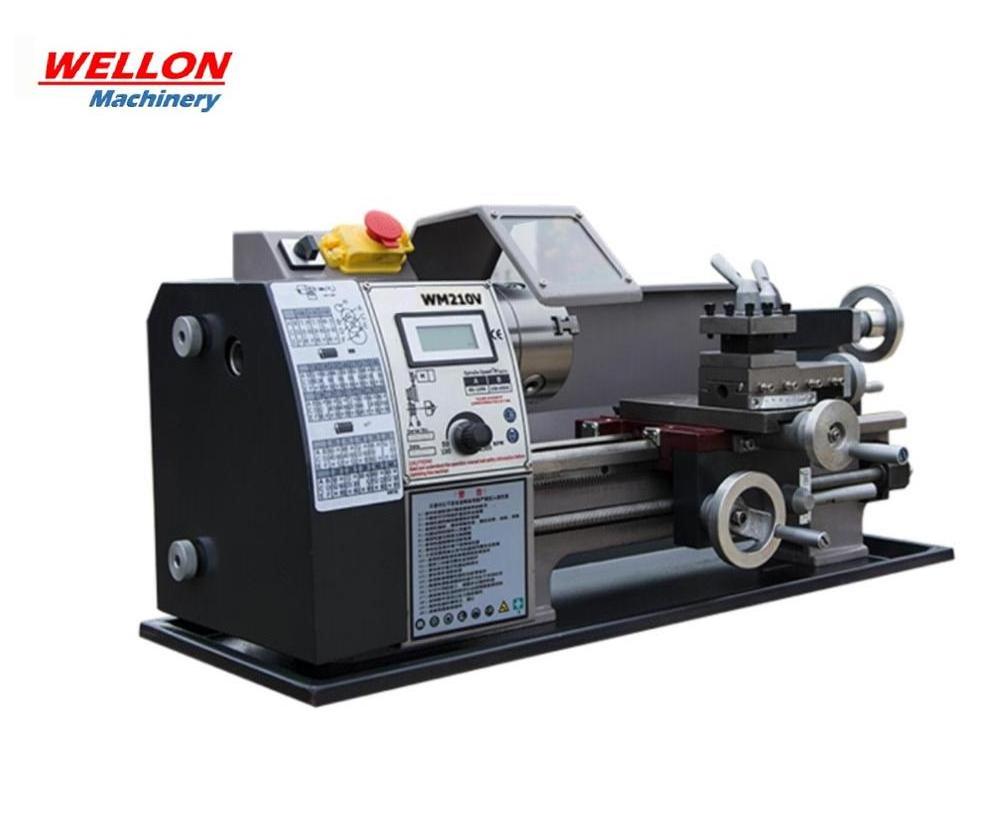

Bench Lathe Machine for Sale/Lathe Machine WM210V
High strength metal gear,corrosion resistant aluminum alloy belt pulley
Two "V" precision guide rail,reenforced by hardening and grinding
High power motor with continually variable transmission,spindle with liquid crystal display
Tailstock with clamping lever and offset,small and convenience
|
Specification |
WM210V |
|
Swing ovr bed |
210mm |
|
Swing over cross slide |
110mm |
|
Distance between centers |
400mm |
|
Width of bed |
100mm |
|
Spindle bore |
21mm |
|
Spindle taper |
MT3 |
|
Number of spindle speeds |
Variable |
|
Range of spindle speeds |
50-2500rpm |
|
Number of metric threads |
10 |
|
range of spindle speeds |
0.5-3mm |
|
Number of imperial threads |
8 |
|
Range of imperial threads |
8-44 T.P.I |
|
Range of longitudinal feed |
0.1-0.20mm |
|
Tool post type |
4 |
|
Max compoud slide way |
55mm |
|
Max carriage slide travel |
75mm |
|
Max carriage travel |
376mm |
|
Taistock travel |
60mm |
|
Tailstock taper |
MT2 |
|
Main motor |
600W |
|
Weight |
80kgs |
|
Dimension |
900X500X500mm |
Standard accessories
Dead centers
Change gears
Spindle protection
Operate tools
Optional accessories:
Steady rest
Follow rest
Face plate
4 jaw chuck+Flange
Quick change tool post
Live center
