Quick Details
-
Place of Origin:
-
Zhejiang
-
Structure:
-
Single-stage Pump
-
Theory:
-
Centrifugal Pump
-
Standard or Nonstandard:
-
Standard
-
Product name:
-
Small 2 inch 3 inch 4 inch 6 inch diesel water motor pump price
-
Color:
-
Customer Required
-
Certificate:
-
CE ISO9001
-
Engine:
-
168F-1
-
Fuel:
-
Unleaded Gasoline
-
Function:
-
Home
-
Starting system:
-
Recoil Start
-
Displacement(cc):
-
196cm
Quick Details
-
Pressure:
-
High Pressure
-
Brand Name:
-
Lingben
-
Model Number:
-
LBB80
-
Place of Origin:
-
Zhejiang
-
Structure:
-
Single-stage Pump
-
Theory:
-
Centrifugal Pump
-
Standard or Nonstandard:
-
Standard
-
Product name:
-
Small 2 inch 3 inch 4 inch 6 inch diesel water motor pump price
-
Color:
-
Customer Required
-
Certificate:
-
CE ISO9001
-
Engine:
-
168F-1
-
Fuel:
-
Unleaded Gasoline
-
Function:
-
Home
-
Starting system:
-
Recoil Start
-
Displacement(cc):
-
196cm

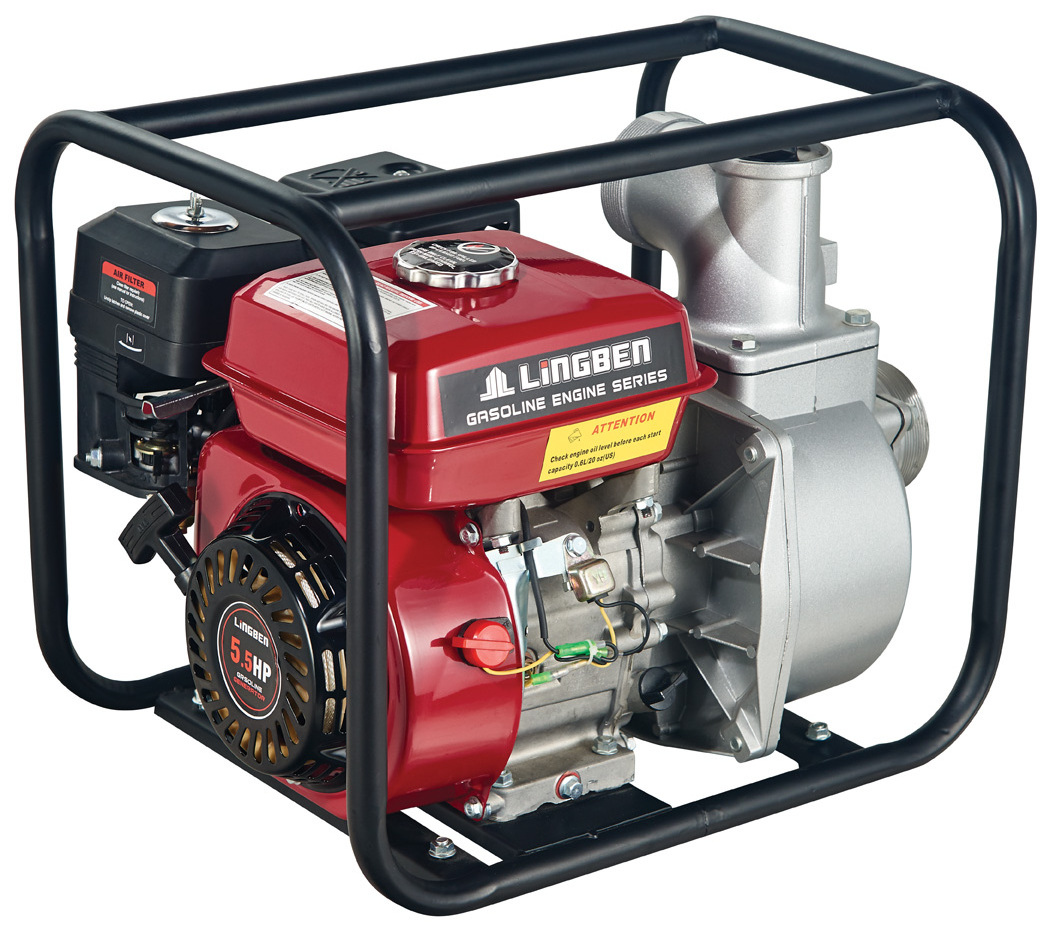

Small 2 inch 3 inch 4 inch 6 inch diesel water motor pump price
Product Description
| Model | LBWP15 | LBWP20 | LBWP30 | LBWP40 | LBWP40S | LBDWP20 | LBDWP30 | LBDWP40 |
| Water Pump | ||||||||
| Type | Gasoline/diesel direct connection, self suction, single stage centrifugal pump | |||||||
| Inlet Dia.(mm) | 40 | 50 | 80 | 100 | 100 | 50 | 80 | 100 |
| Outlet Dia.(mm) | 40 | 50 | 80 | 100 | 100 | 50 | 80 | 100 |
| Suction Height | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
| Pump Lift(m) | 20 | 30 | 30 | 20 | 20 | 30 | 30 | 25 |
| Max.flow(I/min) | 350 | 450 | 1000 | 1300 | 666 | 370 | 600 | 1100 |
| Fuel | Unleaded Gasonline | 0#(summer)or-10#(winter)light diesel | ||||||
| Lubrication Oil | SAE 10W-30 or according to the manual | SAE10W-30(aboe CC grade)or according to the manual | ||||||
| Start system | Recoil or electric | Recoil or electric | ||||||
| Package Size (L x W x H, mm) | 350X310X420 | 485x385x400 | 510x385x425 | 625x480x575 | 625x480x575 | 475x400x500 | 540x440x540 | 645x475x605 |
| Gross/net Weight (kg) | 13.0/12.0 | 24/23 | 24/23 | 43/41.5 | 40/38 | 40/38 | 47/45 | 69/67 |
| 20FT QTY | 525 | 370 | 370 | 140 | 140 | 250 | 185 | 130 |
| 40FT QTY | 1490 | 870 | 820 | 395 | 395 | 715 | 530 | 365 |
| Engine | ||||||||
| Model | LB156F | LB168FA | LB168FB | LB177F | LBD170F | LBD170F | LBD178F | LBD186FA |
| Type | Single-cylinder forced air-cooled OHA four-stroke carburetor gasoline engine | Single-cylinder forced air-cooled OHV for-stroke direct injecton diesel engine | ||||||
| Displacement (ml) | 98 | 163 | 196 | 270 | 215 | 211 | 296 | 418 |
| Rated Output (kw) | 2 | 3.4 | 4.2 | 6.2 | 5 | 2.8 | 4 | 6.3 |
