Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Zhengchen
-
Model Number:
-
detent ball pin
-
Oring:
-
Stainless Steel
-
Pin:
-
Stainless Steel Equivalent
-
Spring:
-
Stainless Steel
-
Body material:
-
Steel nickel
-
Ball:
-
SUS440c
-
Product name:
-
detent ball pin
-
Keyword:
-
Push Button Pin
-
Delivery time:
-
15-25 Days
-
Handle type:
-
Handle
Quick Details
-
Material:
-
ZINC, Stainless steel
-
Type:
-
BLP
-
Size:
-
BLP, BLP5 6 8 10
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Zhengchen
-
Model Number:
-
detent ball pin
-
Oring:
-
Stainless Steel
-
Pin:
-
Stainless Steel Equivalent
-
Spring:
-
Stainless Steel
-
Body material:
-
Steel nickel
-
Ball:
-
SUS440c
-
Product name:
-
detent ball pin
-
Keyword:
-
Push Button Pin
-
Delivery time:
-
15-25 Days
-
Handle type:
-
Handle

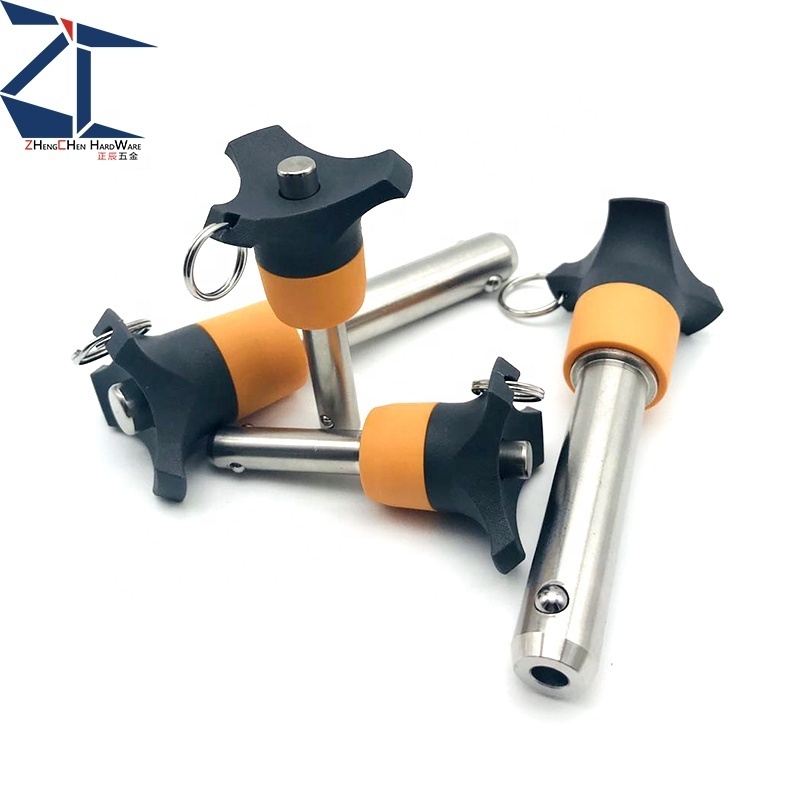

Detent Ball Pin Vlier Spring Loaded Latch
Materials
| Type | Ball | Pin | Handle | Ring | |||||
| L Selectable | L Configurable | [ M ]Material | [ H ]Hardness | [ M ]Material | [ S ]Surface Treatment | [ M ]Material | [ S ]Surface Treatment | [ M ]Material | [ S ]Surface Treatment |
| BLPS | BLPF | 440C Stainless Steel | HRC55~ | 1045 Carbon Steel | Electroless Nickel Plating | 1213 Carbon Steel | Electroless Nickel Plating | SWRH | Nickel Plating |
Specifications
| Part Number | - | L |
|
BLPS8
BLPF10 |
-
- |
25
45 |
L Selectable
L Configurable
| Part Number | L | B 1 | e1 | D | e2 | E | |||||
| Type | B | ||||||||||
| BLPS | 5 | 30 | 5.5 | 6 | 11 | 22 | 25 | ||||
| 6 | 25 | 30 | 40 | 50 | 7 | 7 | 11 | 22 | 25 | ||
| 8 | 25 | 30 | 40 | 50 | 9.5 | 8 | 11 | 22 | 25 | ||
| 10 | 25 | 30 | 40 | 50 | 60 | 12 | 9 | 16 | 27 | 25 | |
| 12 | 60 | 14.5 | 10 | 16 | 27 | 25 | |||||
| 16 | 60 | 19 | 14 | 19 | 32 | 25 | |||||
| Part Number |
L
5mm Increment |
B 1 | e1 | D | e2 | E | |
| Type | B | ||||||
| BLPF | 5 | 10~30 | 5.5 | 6 | 11 | 22 | 25 |
| 6 | 15~50 | 7 | 7 | 11 | 22 | 25 | |
| 8 | 20~100 | 9.5 | 8 | 11 | 22 | 25 | |
| 10 | 25~100 | 12 | 9 | 16 | 27 | 25 | |
| 12 | 30~100 | 14.5 | 10 | 16 | 27 | 25 | |
| 16 | 50~100 | 19 | 14 | 19 | 32 | 25 | |
