Touch screen panels can be easily customized to suit the specific needs of different products or production processes.Operators can adjust settings such as fill volume, speed, and other parameters directly from the screen, allowing for quick changes without the need for mechanical adjustments.
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
±1%
-
Voltage:
-
110V/220V
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
ZONESUN
-
Dimension(L*W*H):
-
About 780*750*1150mm
-
Weight:
-
120 KG
-
Core Components:
-
Other
-
After-sales Service Provided:
-
No overseas service provided
Quick Details
-
Machinery Capacity:
-
1500BPH
-
Packaging Material:
-
Plastic, Paper, Metal, Glass, Wood, Other
-
Filling Material:
-
Powder
-
Filling Accuracy:
-
±1%
-
Voltage:
-
110V/220V
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
ZONESUN
-
Dimension(L*W*H):
-
About 780*750*1150mm
-
Weight:
-
120 KG
-
Core Components:
-
Other
-
After-sales Service Provided:
-
No overseas service provided
Products Description

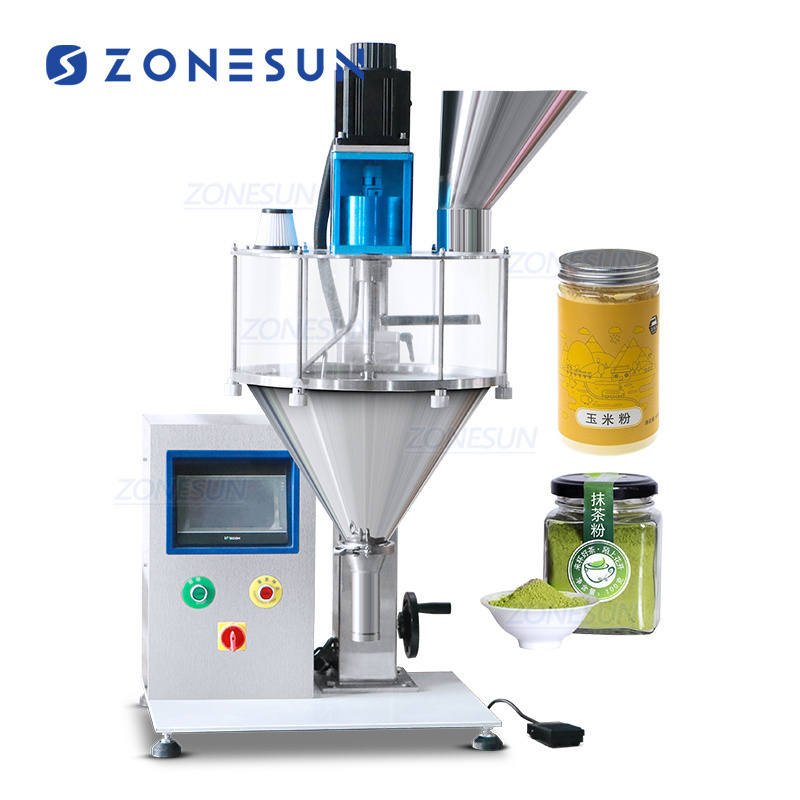

A semi-automatic powder filling machine is a type of equipment used in industries such as food processing, cosmetics, and chemicals to fill containers with powdered substances. The filling volume of this machine can be customized as production need.It is designed to improve efficiency and accuracy in the filling process while reducing manual labor.
|
Machine model
|
ZS-FM100B
|
|
|
|
|
Machine voltage
|
110/220V 50-60HZ
|
|
|
|
|
Screw diameter & filling range
|
φ19mm 0.5-10g
φ25mm 2-15g
φ32mm 10-30g
φ38mm 20-50g
φ51mm 30-100g
φ64mm 100-500g
φ76mm 200-2000g
(for reference only, it will be different according to filling material)
|
|
|
|
|
Hopper size
|
35L(customized)
|
|
|
|
|
Hopper diameter
|
450mm(customized)
|
|
|
|
|
Filling nozzle size
|
customized
|
|
|
|
|
Working capacity
|
10-25 BPM(based on filling volume)
|
|
|
|
|
Container height
|
H≤300mm
|
|
|
|
|
Filling accuracy
|
±1%(based on filling range)
|
|
|
|
|
Machine size
|
About 780*750*1150mm
|
|
|
|
|
Machine weight
|
About 120kg
|
|
|
|
|
Package size
|
About 810*810*1300mm
|
|
|
|
|
Package weight
|
About 144kg
|
|
|
|
The hopper size can be customized according to filling range, ample storage capacity of the hopper enables the powder filling machine to operate continuously for extended periods without the need for frequent interruptions to refill the material. Filling range of this machine can be customized as production need.
This machine adopts intelligent control to achieve precise filling function and avoid wasting materials. The size of the filling nozzle can be customized according to the diameter of the container.
The machine working height can be adjusted according to bottle size by rotary knob, this can improves filling accuracy.
The pedal switch enables hands-free operation of the machine. Operators can activate or control the machine's functions using their foot, allowing them to keep their hands free for other tasks such as handling materials or adjusting settings.
