Quick Details
-
Brand Name:
-
GALOCE
-
Theory:
-
Resistance Sensor
-
Output:
-
mv/v
-
Description:
-
load cell
-
Accuracy class:
-
C2
-
Rated Capacity(KG):
-
3~120
-
Comprehensive error (%F.S):
-
±0.03
-
Material:
-
Aluminum Alloy
-
Platform size(mm):
-
250*350
-
Excitation voltage (V):
-
9-12(DC)
-
Certificate:
-
CE & RoHS
-
Operation temp. range (℃):
-
-20~+60
-
Application:
-
GPB100 100kg load cell brake sim-racing pedals
Quick Details
-
Usage:
-
Weight
-
Model Number:
-
GPB100
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
GALOCE
-
Theory:
-
Resistance Sensor
-
Output:
-
mv/v
-
Description:
-
load cell
-
Accuracy class:
-
C2
-
Rated Capacity(KG):
-
3~120
-
Comprehensive error (%F.S):
-
±0.03
-
Material:
-
Aluminum Alloy
-
Platform size(mm):
-
250*350
-
Excitation voltage (V):
-
9-12(DC)
-
Certificate:
-
CE & RoHS
-
Operation temp. range (℃):
-
-20~+60
-
Application:
-
GPB100 100kg load cell brake sim-racing pedals

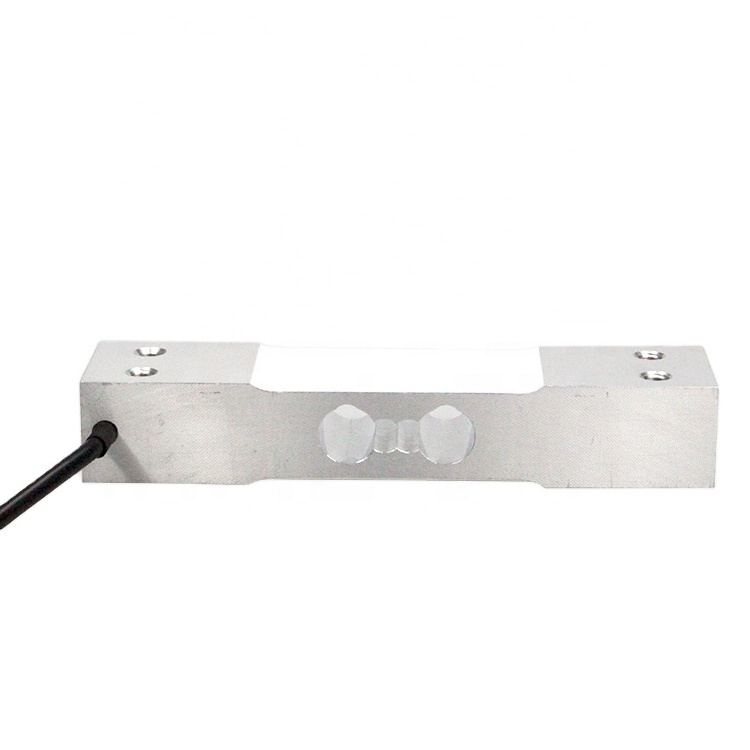

GPB100 100kg load cell brake sim-racing pedals
Suitable for customize load cell brake pedal for racing simulators
What is strength of GPB100 Load cell?
1. Made of a luminum alloy
2. S uit able for electronic scale and other weighing equipment with small platform
3. Recommend max platform: 250×350mm
What is performance data of GPB100 load cell?
|
Datas |
|
|
Range (KG): 3, 5, 6, 10, 15, 20, 30, 40, 50, 60, 100, 120 |
|
|
Accuracy : C2/C3 |
Temp. effect on span (%F.S/10 ℃ ): ±0.02/± 0.014 |
|
Comprehensive error(%F.S): ±0.02/±0.017 |
Temp. effect on zero (%F.S/10 ℃ ): ±0.03/±0.017 |
|
Rated output (m V / V ): 2.0±0.2 |
Compensated temp. range ( ℃ ): -10 ~ +40 |
|
Creep (%F.S/30min): ±0.02/±0.017 |
Operation temp. range ( ℃ ): -20 ~ +60 |
|
Zero balance (%F.S): ±1.0 |
Excitation voltage (V): 9 - 12(DC) |
|
Input resistance (Ω): 405±10 |
Safe overload (%F.S): 120 |
|
Output resistance (Ω): 350±3 |
Ultimate overload (%F.S): 150 |
|
Insulation resistance (MΩ): ≥5000(100VDC) |
Ingress protection : IP65 |
How about the GPB100 load cell outline ?
How about the load instruction of GPB100 load cell?
How about the dimension of GPB100 load cell?
How about the wiring schematic diagram of GPB100 load cell?
How to use GPB100 load cell?
Q: What are the applications of single point load cell/parallel beam load cell?
A: Platform scale, package scale, animal scale, sorting machine, beehive scale , etc.
Q:What is the raw material?
A: Aluminum alloy
Q: What is the accuracy/precision?
A: C2 0.03% and C3 0.02%
Q: What is the wire meaning?
A: 5 wires (Red: E+, Black: E-, Green: S+, White: S-, Other color: ground)
Q: How to install?
A: One side are fixed and the other side are forced.
Q: What is the load range for single point load cell?
A: 0.1-1000KG
