Quick Details
-
Brand Name:
-
DTEC
-
Model Number:
-
DHBRV-187.5
-
Range:
-
Rockwell:20~100 Vickers:8~2900 Brinell:8~650HBW
-
Testing Force:
-
10 -1187.5kgf,Level 7 Force
-
HB Scales:
-
HBW2.5/31.25 HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5
-
Brinell Force:
-
31.25kgf(306.5N) 62.5kgf(612.9N) 187.5kgf(1839N)
-
Rockwell Scales:
-
HRA HRB HRC HRD HRE HRF HRG HRK HRH
-
HR Force:
-
60kgf(588N) 100kgf(980.7N) 150kgf(1471N)
-
Vickers Scales:
-
HV30 HV100
-
Force:
-
30kgf(294.2N) 100kgf(980.7N)
-
Color:
-
White
-
Max.Testing Height:
-
Rockwell:175 Brinell,Vickers:145mm
Quick Details
-
Warranty:
-
1 year
-
Type:
-
rockwell vickers brinell hardness scales test
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
DTEC
-
Model Number:
-
DHBRV-187.5
-
Range:
-
Rockwell:20~100 Vickers:8~2900 Brinell:8~650HBW
-
Testing Force:
-
10 -1187.5kgf,Level 7 Force
-
HB Scales:
-
HBW2.5/31.25 HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5
-
Brinell Force:
-
31.25kgf(306.5N) 62.5kgf(612.9N) 187.5kgf(1839N)
-
Rockwell Scales:
-
HRA HRB HRC HRD HRE HRF HRG HRK HRH
-
HR Force:
-
60kgf(588N) 100kgf(980.7N) 150kgf(1471N)
-
Vickers Scales:
-
HV30 HV100
-
Force:
-
30kgf(294.2N) 100kgf(980.7N)
-
Color:
-
White
-
Max.Testing Height:
-
Rockwell:175 Brinell,Vickers:145mm

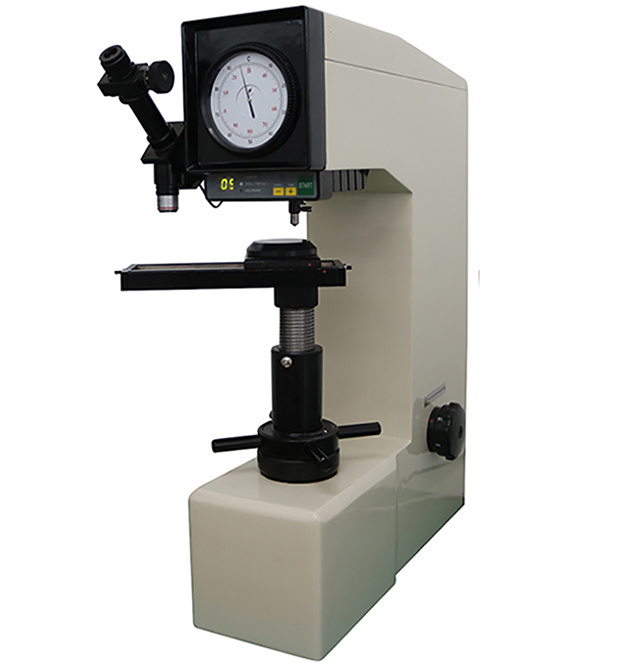

Equipped with Brinell, Rockwell and Vickers hardness testing modes, level 7 testing force,DHBRV-187.5 Motorized Brinell,Rockwell & Vickers Hardness Tester is a multi-purpose, and multi-functional hardness testing equipment, which satisfies your various hardness measuring requirement.
Using Scopes:
Surface hardened steel, hardened steel, alloy steel, various QT and annealed steel,non-ferrous metal, hardened steel sheet, also suitable for soft metals, surface treatment metals and chemical processing metals.
- Multi-purpose, and multi-functional hardness testing equipment, which satisfies your various hardness measuring requirement;
- Automatically loading,keep and unloading testing force;
- Brinell,Rockwell and Vickers hardness testing modes,widely used and easy operated,no man made error;
- High sensitivity and stability.
|
Model
|
DHBRV-187.5
|
|
Testing Force
|
10 -187.5kgf,Level 7 Force
|
|
Brinell Scales
|
HBW2.5/31.25 HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5 |
|
Brinell Force
|
31.25kgf(306.5N) 62.5kgf(612.9N) 187.5kgf(1839N) |
|
Rockwell Scales
|
HRA HRB HRC HRD HRE HRF HRG HRK HRH |
|
Rockwell Force
|
60kgf(588N) 100kgf(980.7N) 150kgf(1471N)
|
|
Vickers Scales
|
HV30 HV100 |
|
Vickers Force
|
30kgf(294.2N) 100kgf(980.7N)
|
|
Min.Testing Unit
|
Brinell:0.004mm Vickers:0.002mm |
|
Max.Testing Height
|
Rockwell:175 Brinell,Vickers:145mm |
|
Dwell Time
|
2~60s
|
|
Testing Range
|
Rockwell:20~100 Vickers:8~2900 Brinell:8~650HBW
|
|
Power Supply
|
AC220+5%,50~60Hz(Power consumption:60W)
|
|
Dimension(cm)
|
64*40*81
|
|
Packing Weight
|
100kg
|
Standard Packing List:
|
Items
|
Qty.
|
Items
|
Qty.
|
|
Rockwell,Vickers Indenter
|
1
|
Brinell Indenter:Dia.1.5875,2.5,5mm Alloy Ball Indenter |
1 each
|
|
Microscope
|
1
|
light
|
1
|
|
Standard Blocks
|
5
|
Big,Medium,V Type Testing Platform
|
1 each
|
|
Power Cable
|
1
|
Movable Testing Platform
|
1
|
|
Objective
|
2
|
Manual Book
|
1
|
Optional Accessories:
Every set of our equipement will be carefully tested and double checked steps by steps before being packed and delivery,as we all know that among such fierce international competition,only 100% good quality and stable performance can finally attain the customer's trust.Hence,we will always put the equipment calibraton job in the first place while manufacturing.
We are orginal manufacturer of desktop hardness tester in china,we have own production worshop which contains the full manufacturing procedure,from the beginning of hardness test shell forging and welding,to the processing of spars parts such as main bearings,weights,testing platesm,all these manufacturing procesure is devided into several different sections as see below pictures:
Processing of Hardness Tester Shell(sheet metal):
Processing of main bearings:
- 36 Months Quality Warranty from the day customers receive our goods;
- Offer customer video of machine installment,handle,operation if they need;
- If neccessory,we can provide on site adjustment and installment;
- Lifetime Technical support and solution offered by means of vedio,telephone call,or r emote assistance via teamview;
- Free supply certain spare parts within warranty period;
- Free offer customer machine trainning in our factory,help to book hotel and air ticket in advacne;
- Arrange considerate and 100% satisfed customer entertainment for coming visitor.
