1.FEATURES
Agricultural V-belts feature simple structure,easy production,smooth transmission,small mechanical
vibration,wide applicability and convenient maintenance.
2.MARKING
The marking of agricultural V-belts show the inside length of factory V-belts.The length conversion table is available
for conversion between different models.
- Product Details
- {{item.text}}
Quick Details
-
Type:
-
HB ,HC ,HL ,HQ ,HM
-
Material:
-
Rubber
-
Place of Origin:
-
Zhejiang, China, Zhejiang, China
-
Brand Name:
-
SIhai
-
Product Name:
-
Agriculture Belt
-
Temperature range:
-
-55℃ to 90℃
-
Angle:
-
40
-
Certificate:
-
ISO4184,DIN2215,RMA,ISO9001
-
Application:
-
Manufacturing Plant, Machinery Repair Shops, Farms
-
Use:
-
Tractor, Harvester
-
Reinforcement:
-
Polyester cord
Quick Details
-
Warranty:
-
1 years
-
Applicable Industries:
-
Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Retail, Printing Shops, Energy & Mining
-
Standard or Nonstandard:
-
Standard
-
Type:
-
HB ,HC ,HL ,HQ ,HM
-
Material:
-
Rubber
-
Place of Origin:
-
Zhejiang, China, Zhejiang, China
-
Brand Name:
-
SIhai
-
Product Name:
-
Agriculture Belt
-
Temperature range:
-
-55℃ to 90℃
-
Angle:
-
40
-
Certificate:
-
ISO4184,DIN2215,RMA,ISO9001
-
Application:
-
Manufacturing Plant, Machinery Repair Shops, Farms
-
Use:
-
Tractor, Harvester
-
Reinforcement:
-
Polyester cord
Product Description
Title goes here.
Specification
|
Type
|
TOP Width
|
Pitch Width
|
Height
|
Length Range
|
Angle
|
|
Unit
|
mm
|
mm
|
mm
|
mm
|
|
|
Z
|
10
|
8.5
|
6
|
400-3000
|
40°
|
|
A
|
13
|
11
|
8
|
400-8000
|
40°
|
|
B
|
17
|
14
|
11
|
400—12000
|
40°
|
|
C
|
22
|
19
|
14
|
990—18000
|
40°
|
|
D
|
32
|
27
|
19
|
2200—18000
|
40°
|
|
E
|
38
|
32
|
23
|
2200—18000
|
40°
|
|
HA
|
13
|
11
|
8
|
1320—4650
|
40°
|
|
HB
|
17
|
14
|
11
|
914—10000
|
40°
|
|
HC
|
22
|
19
|
14
|
950—10000
|
40°
|
|
HD
|
32
|
27
|
19
|
1400—4700
|
40°
|
|
Type
|
TOP Width
|
Height
|
Length Range
|
Angle
|
|
Unit
|
mm
|
mm
|
mm
|
|
|
HI
|
25.4
|
12.7
|
2150—5200
|
30°
|
|
HJ
|
31.8
|
15.1
|
1400—4700
|
30°
|
|
HK
|
38.1
|
17.5
|
1400—10000
|
30°
|
|
HL
|
44.5
|
19.8
|
1700—4700
|
30°
|
|
HM
|
50.8
|
22.2
|
1750—10000
|
30°
|
|
HN
|
57.2
|
23.9
|
1500—4700
|
30°
|
|
HO
|
63.5
|
25.4
|
1750—4700
|
30°
|
|
HQ
|
76.2
|
30.5
|
2000—5000
|
30°
|
|
Type
|
TOP Width
|
Pitch Width
|
Height
|
Length Range
|
Angle
|
|
Unit
|
mm
|
mm
|
mm
|
mm
|
|
|
SPZ
|
10
|
8
|
8
|
400-4000
|
40°
|
|
SPA
|
13
|
11
|
10
|
1750—3000
|
40°
|
|
SPB
|
17
|
14
|
14
|
1321—4650
|
40°
|
|
SPC
|
22
|
19
|
18
|
2350—10000
|
40°
|
|
3V(9J)
|
9.5
|
/
|
8
|
406-5000
|
40°
|
|
5V(15J)
|
16
|
/
|
13.5
|
1100—10000
|
40°
|
|
8V(25J)
|
25.5
|
/
|
23
|
1905—15000
|
40°
|

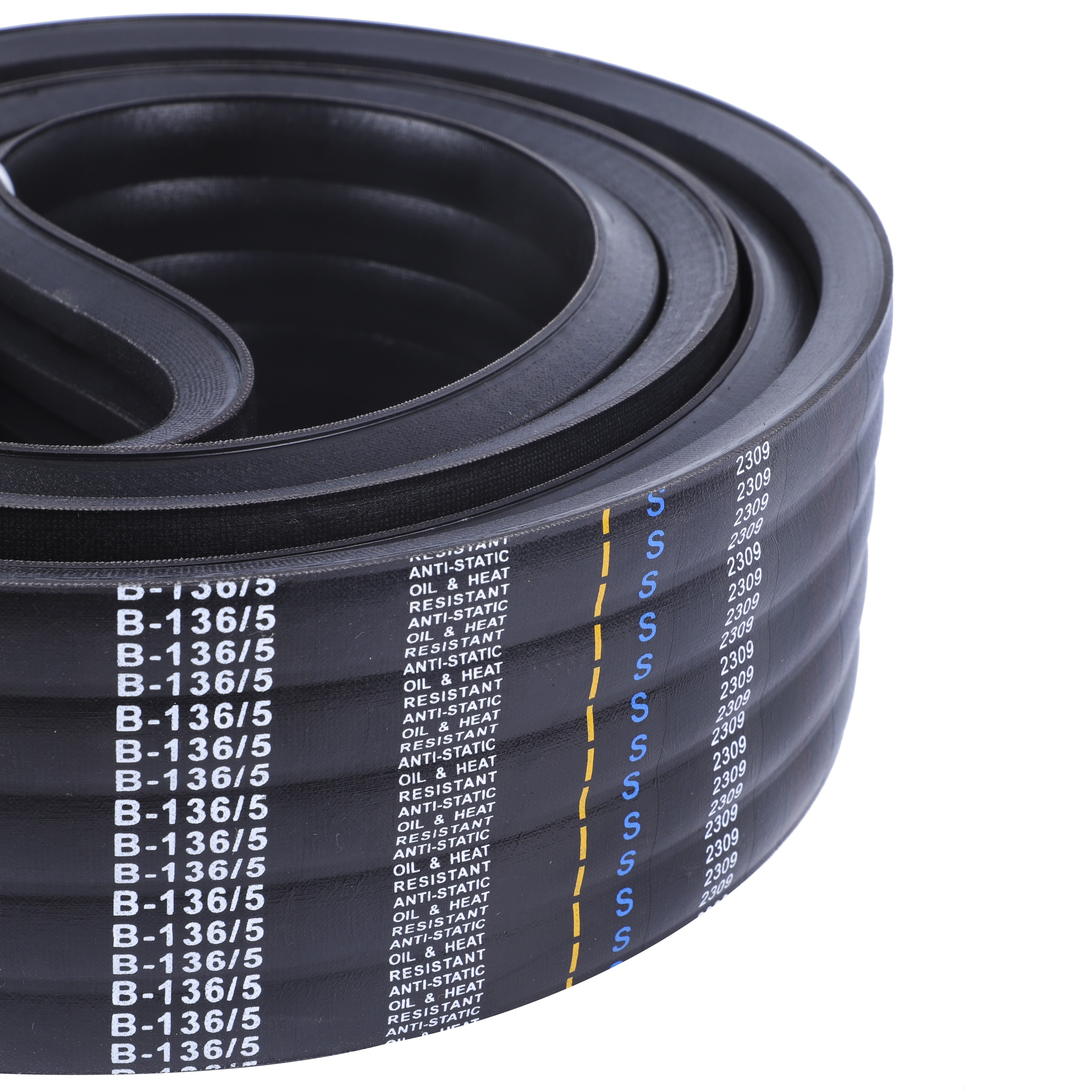

Sihai Banded Series V-belt
Production process & quality inspection
Packing & Delivery
1) We provide cartons, wooden boxes, and wooden pallet packaging.
2) Your brand and company information can be printed on the carton
Exhibition
FAQ
Q1. Can I have a sample order for V belt?
1）Yes, we welcome sample order to test and check quality.
2）We could offer the sample for free charge, but do not pay the cost of freight.
Q2. What about the lead time?
1）1--2 days for sample
2）15--30 days for mass production. lf urgent,we have green channel.
Q3. Do you have any MOQ limit for V belt order?
50pcs each model
Q4. ls it OK to print my logo on V belt product?
Yes. Please inform us your logo or design before mass production
Q5. Are you a manufacture?
Yes, we produce rubber V belts and conveyor belt over 26+years.
Q6. How to pay?
1. T/T or L/C through bank account
2. Select Alibaba Trade Assurance Service
