solar pump irrigation kit solar pump set with panel solar pump design drinking water irrigation system

solar pump irrigation kit solar pump set with panel solar pump design drinking water irrigation system

FOB Reference Price: Get Latest Price

≥1 Pieces

US $182.3

≥10 Pieces

US $173.2

≥50 Pieces

US $163.8

≥100 Pieces

US $155

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 2 years, 2 Years

Brand Name:: Qingeal

Model Number:: 3FLS1.8/100-DC24/270

Place of Origin:: Zhejiang, China

Horsepower:: 0.36hp

Power Source:: Solar

Outlet Size:: 0.75 inch

Power:: 270w, 270W

Product name:: DC Screw Solar deep well pump

Material:: stainless steel solar pump

Motor:: Permanent Magnetic SYnchronous motor

Max Flow Rate:: 1.8m3/h

Max Head:: 100m

Outlet dia:: 0.75inch

Pump dia:: 3 inch

Quick Details

Application:: Irrigation and Agriculture

Pressure:: high pressure

Voltage:: dc 24v, DC24v

Warranty:: 2 years, 2 Years

Brand Name:: Qingeal

Model Number:: 3FLS1.8/100-DC24/270

Place of Origin:: Zhejiang, China

Horsepower:: 0.36hp

Power Source:: Solar

Outlet Size:: 0.75 inch

Power:: 270w, 270W

Product name:: DC Screw Solar deep well pump

Material:: stainless steel solar pump

Motor:: Permanent Magnetic SYnchronous motor

Max Flow Rate:: 1.8m3/h

Max Head:: 100m

Outlet dia:: 0.75inch

Pump dia:: 3 inch

Pump Description

Pump Details

MPPT Controller

Advantage of DC controller

(1) Waterproof grade:IP65

(2) Ambient temperature:-15C-60C

(3) MPPT function, the solar power uilization rate is higher.

(4)Automatic charging function: Guarantee the pump normally working, meanwhile charge the battery; And when there is no sunshine, thebattery can make the pump continuously working.

(5) LED displays the power, voltage,current. speed etc working condition

(6)Frequency conversion function:It can automatically run with frequency conversion according to the solar power,and user also canchange the speed of pump manually.

(7) Automatically start and stop working.

(8) Water proof and leak-proof: Double seal effect
(9) Soft start: No impulse current, protect the pump motor.

(10) High voltage/Low voltage/Over- current/High temperature protection

Product Parameter and Connection

Submersible Solar Water Pump

Model: 3FLS1.8/100-D24/270C

Power: 270W

Voltage: 24V

Maxflow:1.8m3/h=6480L/day
(pump 6hours on daytime)

Max head:100m(suit for 60m deep well)
Outlet Dia:1inch

Pump Dia:3inch
Cable: 3M

suggest euqip solar panels: 2*275W
Pump Size:
A=418mm; B=190mm; C=228mm; D=78mm

Packing Details

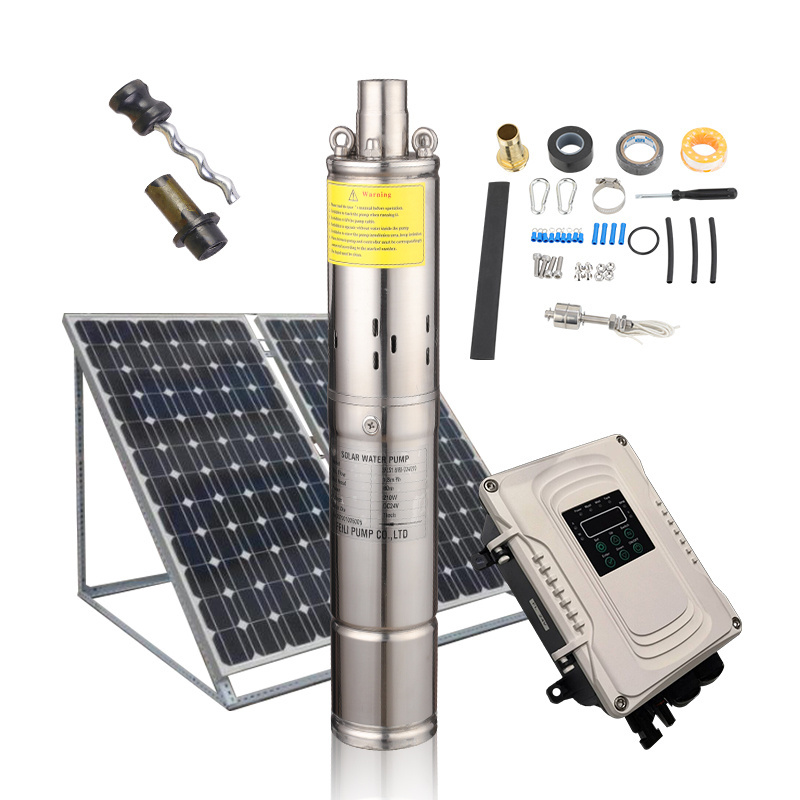

Complete Solar Pump System

Feedback

Brief Introduction of Company

FEILI PUMP co., LTD. was founded in 1992 with a sharp focus on water treatment and solar solutions for moving water and reducing energy costs across more than 110 countries. With the highest standards,we have kept at the forefront of our industry, leading in solar pumping system design and implimentation in China During the past 10 years diesel prices have increased by 20% in average, electricity prices also moving on an upward graph FEILI PUMP can save your diesel or electricity costs with litle maintenance and a long product life With fast before-after sale service and strong technical support, our reorder rate up to80%. but 98% customers we never meet FEILI PUMP is committed to providing tumkey solutior's to both large and small scale projects, offering simple and affordable solutions for all customers. We would be happy to have an opportunity to work with your company!

Factory Production

Production Process
