GFRP connecting anchor for sandwich walls and Core-insulated double walls

GFRP Thermal Insulation Connector:

The GFRP Securing anchor system is a glass fiber reinforced plastic (GFRP) connecting anchor for sandwich walls and core-insulated double walls.

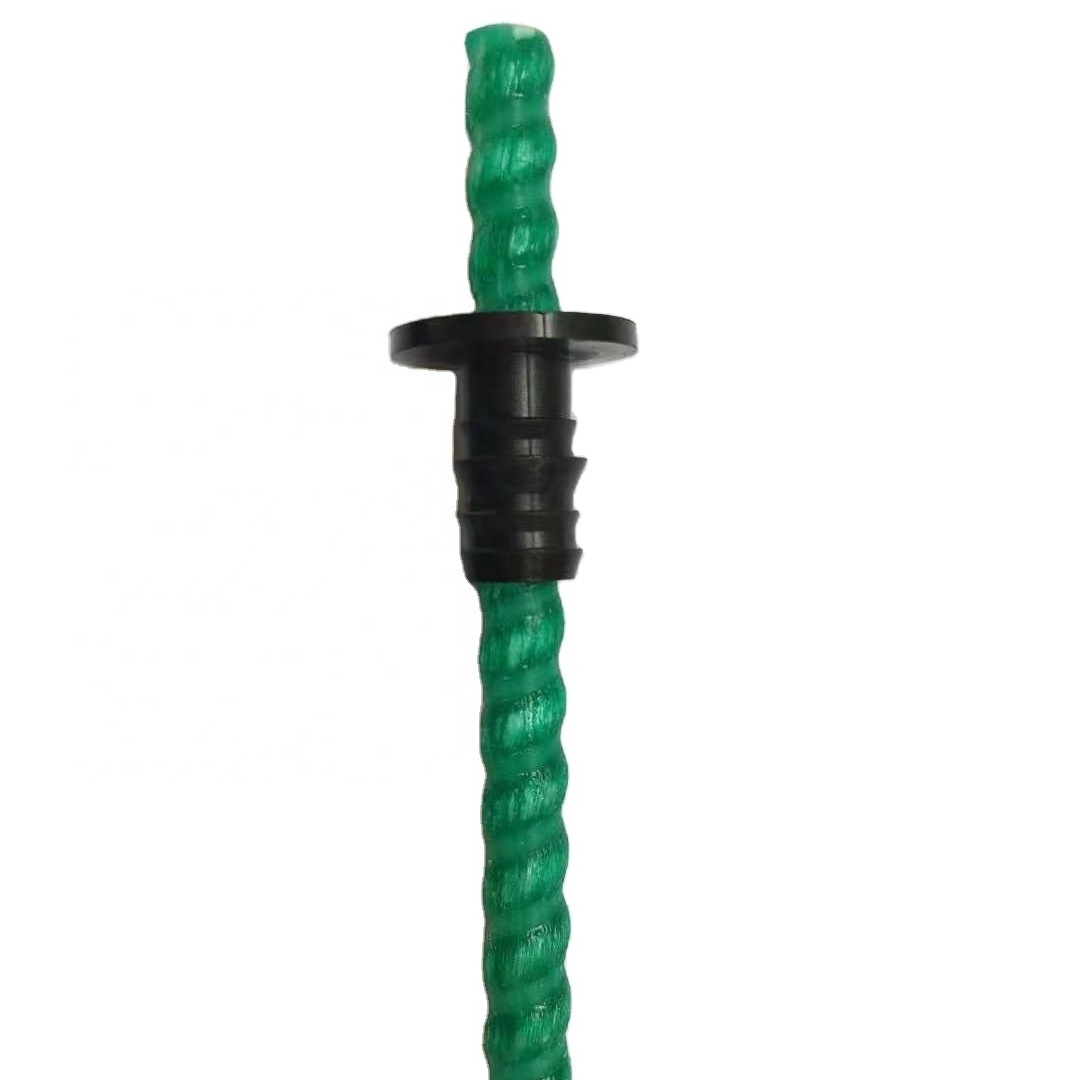

The GFRP securing anchor system is used to connect facing and load-baring layers for core-insulated concrete plates. The GFPR material is suitable for use in narrow structural elements. Thanks to the attached cap, the bar slides smoothly into the fresh concrete, enabling particularly fast assembly. The fixed plastic ring guarantees correct installation and insures that the fastening point in the insulation is sealed and concrete cannot flow into the opening. As a result, the bar ultimately disappears in the concrete and is not visible on the surface.
The result is perfect surfaces without visible flaws. GFRP pins feature conical openings at the ends to increase resistance to pulling out. A particulary high tensile strength is achieved by using exclusively complete and intact galss fibers along the axis flat bar.

The GFRP securing anchor system is available in two designs: horizontal and  diagonal anchor tepy.

Applications:

1. Sandwich Walls
2. Core-Insulated Elements Walls

Benefits:
Good value---low assembly cost thanks for simple and fast installation Durable--- proven stability, also in alkaline media
Slim --- structures with a low layer thickness are possibel
