Quick Details
-
Model Number:
-
BGT-W818 pro
-
Product name:
-
Meteorological weather station weather Sensors
-
PM2.5 range:
-
0-500ug/m³
-
PM10 range:
-
0-500ug/m³
-
CO range:
-
0-20ppm
-
SO2 range:
-
0-1ppm
-
NO2 range:
-
0-1ppm
-
O3 range:
-
0-1ppm
-
Temperature range:
-
-40-123.8℃
-
Humidity range:
-
0-100%RH
-
PM2.5 Accuracy:
-
±2%
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
BGT
-
Model Number:
-
BGT-W818 pro
-
Product name:
-
Meteorological weather station weather Sensors
-
PM2.5 range:
-
0-500ug/m³
-
PM10 range:
-
0-500ug/m³
-
CO range:
-
0-20ppm
-
SO2 range:
-
0-1ppm
-
NO2 range:
-
0-1ppm
-
O3 range:
-
0-1ppm
-
Temperature range:
-
-40-123.8℃
-
Humidity range:
-
0-100%RH
-
PM2.5 Accuracy:
-
±2%
Please Attention
**One-stop Emergency Solution Supplier**
2. Nice quality.
3. Small order is welcome.
4. Online payment.
5. Refund money in case of bad quality.
6. Sample offered but you need to pay it.
7. 1 year free repair for quality warranty.
Products Description

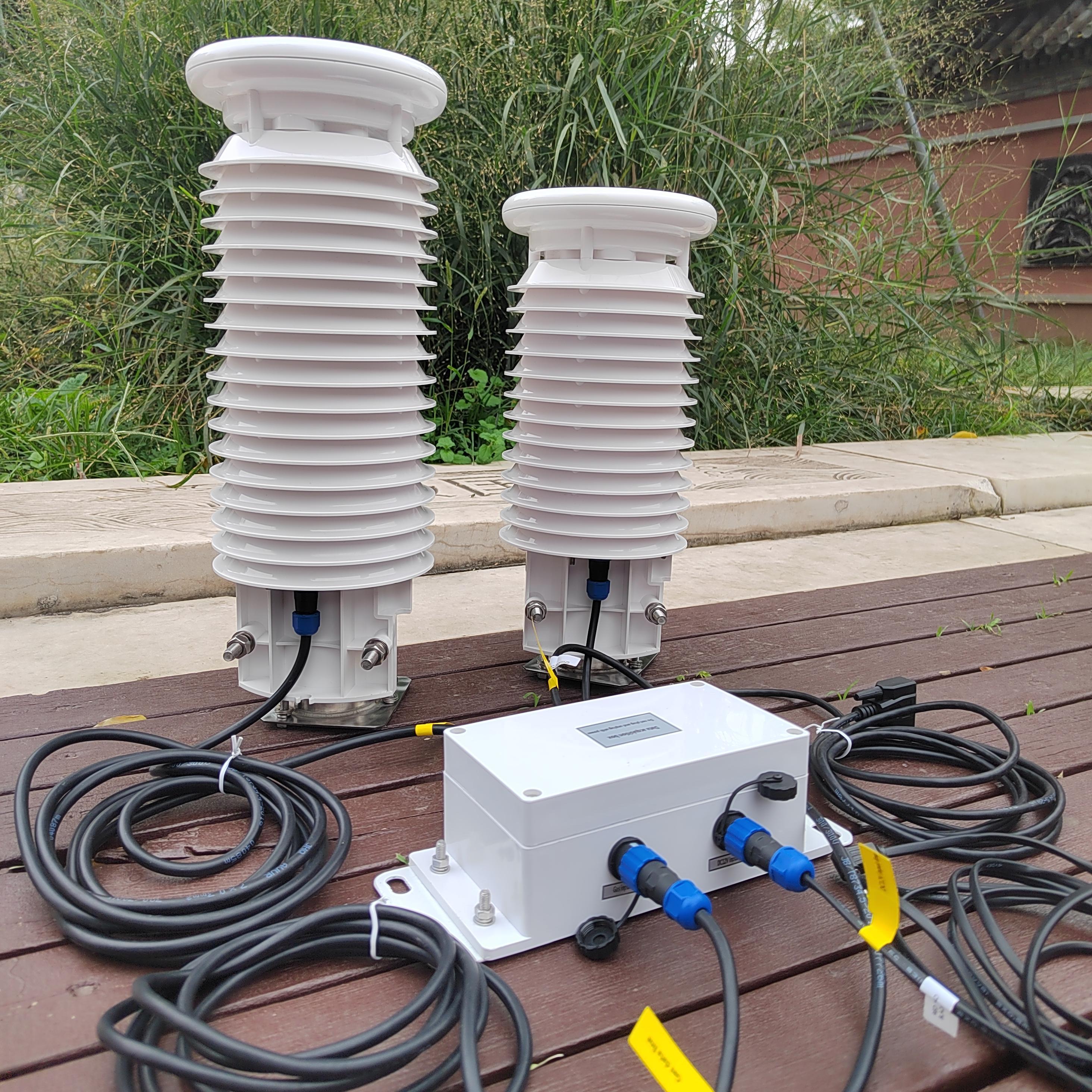

RS485 Alphasense PM2.5 PM10 CO SO2 NO2 O3 Temperature Humidity All In One Integrated Air Quality Compact Weather Sensor Station
The integrated weather station is a standard meteorological station designed and produced by our company according to the meteorological observation standard of International Meteorological Organization (WMO). All the meteorological sensor indicators meet the meteorological industry standard of the people's Republic of China (Standard No.: QX / t1-2000), so far, it is the most comprehensive and powerful integrated meteorological station in the same industry.
The integrated weather station produced by our company adopts high-performance dual core 32-bit processor and integrates multi-channel signal acquisition channels, which can realize all-weather on-site monitoring of environmental temperature, environmental humidity, wind direction, wind speed, rainfall, air pressure, solar radiation, soil temperature, soil humidity, visibility, Co, CO2, SO2 and other meteorological elements,
Quick selection
|
Item No.
Elements |
BGT-W817B pro
|
BGT-W818 pro
|
BGT-W818B pro
|
BGT-W818C pro
|
BGT-W820 pro
|
|
PM2.5
|
√
|
√
|
√
|
√
|
√
|
|
PM10
|
√
|
√
|
√
|
√
|
√
|
|
CO
|
|
√
|
|
|
√
|
|
SO2
|
|
√
|
|
|
√
|
|
NO2
|
|
√
|
|
|
√
|
|
O3
|
|
√
|
|
|
√
|
|
Temperature
|
√
|
√
|
√
|
√
|
√
|
|
Humidity
|
√
|
√
|
√
|
√
|
√
|
|
Pressure
|
√
|
|
√
|
√
|
√
|
|
Speed
|
√
|
|
√
|
√
|
√
|
|
Direction
|
√
|
|
√
|
√
|
√
|
|
Rainfall
|
|
|
|
√
|
√
|
|
iIlluminance
|
|
|
|
√
|
|
|
Radiation
|
|
|
√( thermo-electric)
|
|
|
|
Noise
|
√
|
|
|
|
|
|
UV
|
|
|
|
|
|
Features
*Adapt to adapt complex weather conditions
*High accuracy, fast response
*Good appearance
*Highly integrated, easy installation
*Solid state,Free maintenance
*ASA engineering plastic cover
*High accuracy, fast response
*Good appearance
*Highly integrated, easy installation
*Solid state,Free maintenance
*ASA engineering plastic cover
Technical Parameter(customized elements according to customers requirements)
|
Elements
|
Range
|
Resolution
|
Accuracy
|
Configuration
|
|
Temperatire
|
-40-123.8℃
|
0.1℃
|
±0.3℃
|
Customized
|
|
Humidity
|
0-100%RH
|
0.10%
|
±2%(≦80%)±5%（>80%）
|
Customized
|
|
Dew point temperature
|
-40-50℃
|
0.1℃
|
Calculated value (complimentary)
|
Customized
|
|
Maximum temperature of the day
|
-40-123.8℃
|
0.1℃
|
Calculated value (complimentary)
|
Customized
|
|
Minimum temperature of the day
|
-40-123.8℃
|
0.1℃
|
Calculated value (complimentary)
|
Customized
|
|
Ultrasonic direction
|
0-360°
|
1°
|
±2°
|
Customized
|
|
Ultrasonic speed
|
0-60m/s
|
0.1m/s
|
±2%(≦20m/s) ±2%+0.03V m/s（>20m/s）
|
Customized
|
|
2 min average wind speed
|
0-60m/s
|
0.1m/s
|
Calculated value (complimentary)
|
Customized
|
|
10 min average wind speed
|
0-60m/s
|
0.1m/s
|
Calculated value (complimentary)
|
Customized
|
|
electronic compass
|
0-359.9°
|
0.1°magnetic variation
|
±4°
|
Customized
|
|
Pressure
|
300-1100hpa
|
0.1hpa
|
±0.12hpa
|
Customized
|
|
Rainfall
|
0-999.9mm
|
0.2mm\0.5mm
|
≦0.2mm
|
Customized
|
|
Total radiation(Photoelectric)
|
0-2000W
|
1W/㎡
|
≦5%
|
Customized
|
|
Total radiation daily accumulation
|
0-99.99
|
0.01
|
Calculated value (complimentary)
|
Customized
|
|
Total radiation monthly accumulation
|
0-9999
|
1
|
Calculated value (complimentary)
|
Customized
|
|
Total radiation annual accumulation
|
0-9999
|
1
|
Calculated value (complimentary)
|
Customized
|
|
UV
|
0-500w
|
1W/㎡
|
≦5%
|
Customized
|
|
CO2
|
0-2000ppm
|
1ppm
|
±20ppm
|
Customized
|
|
Noise
|
30-130dB
|
0.1dB
|
±5dB
|
Customized
|
|
PM2.5
|
0-500ug/m³
|
0.01m3/min
|
±10%
|
Customized
|
|
PM10
|
0-1000ug/m³
|
0.01m3/min
|
±10%
|
Customized
|
|
illuminance
|
0-200000 Lux
|
|
±7%
|
Customized
|
|
sunshine duration
|
0-24h
|
0.1h
|
±0.1h
|
Customized
|
|
Soil temperature
|
-50-80℃
|
0.1℃
|
±0.1℃
|
Customized
|
|
Soil moisture
|
0-100%RH
|
0.1%
|
±2%
|
Customized
|
|
Soil EC
|
0-15mS/cm
|
0.01
|
±0.5%
|
Customized
|
|
Soil PH
|
1-14PH
|
0.1
|
±2%
|
Customized
|
|
Evaporation
|
0-200mm
|
0.1mm
|
±1.5%
|
Customized
|
|
PAR
|
0-500W
|
1W/㎡
|
≦5%
|
Customized
|
|
CO
|
0-10ppm
|
0.001ppm
|
±3% FS
|
Customized
|
|
SO2
|
0-1ppm
|
0.001ppm
|
±3% FS
|
Customized
|
|
O3
|
0-1ppm
|
0.001ppm
|
±3% FS
|
Customized
|
|
NO2
|
0-1ppm
|
0.001ppm
|
±3% FS
|
Customized
|
|
VOCvolatile matter
|
0-20ppm
|
0.001ppm
|
±3% FS
|
Customized
|
|
H2S
|
0-10ppm
|
0.001ppm
|
±3% FS
|
Customized
|
|
NH3
|
0-10ppm
|
0.001ppm
|
±3% FS
|
Customized
|
|
CH2O
|
0-1ppm
|
0.001ppm
|
±3% FS
|
Customized
|
|
CI2
|
0-10ppm
|
0.001ppm
|
±3% FS
|
Customized
|
|
C2H4O
|
0-100ppm
|
0.001ppm
|
±3% FS
|
Customized
|
|
H₂O₂
|
0-100ppm
|
0.001ppm
|
±3% FS
|
Customized
|
|
H2
|
0-1000ppm
|
1ppm
|
±3% FS
|
Customized
|
|
HCl
|
0-20ppm
|
0.01ppm
|
±3% FS
|
Customized
|
|
HCN
|
0-20ppm
|
0.01ppm
|
±3% FS
|
Customized
|
|
PH3
|
0-20ppm
|
0.01ppm
|
±3% FS
|
Customized
|
|
O2
|
0-30%VOL
|
0.01%VOL
|
±3% FS
|
Customized
|
|
N2
|
0-100%VOL
|
0.01%VOL
|
±3% FS
|
Customized
|
|
NO
|
0-1ppm
|
0.001ppm
|
±3% FS
|
Customized
|
|
ClO₂
|
0-50ppm
|
0.01ppm
|
±3% FS
|
Customized
|
|
CH4S
|
0-10ppm
|
0.01ppm
|
±3% FS
|
Customized
|
|
C₂H₄
|
0-100ppm
|
0.01ppm
|
±3% FS
|
Customized
|
|
Br2
|
0-10ppm
|
0.01ppm
|
±3% FS
|
Customized
|
|
THT
|
0-50ppm
|
0.01ppm
|
±3% FS
|
Customized
|
|
F2
|
0-1ppm
|
0.01ppm
|
±3% FS
|
Customized
|
|
HF
|
0-10ppm
|
0.01ppm
|
±3% FS
|
Customized
|
|
HBr
|
0-20ppm
|
0.02ppm
|
±3% FS
|
Customized
|
|
COCl2
|
0-1ppm
|
0.001ppm
|
±3% FS
|
Customized
|
|
CH4
|
0-5000ppm
|
1ppm
|
±3% FS
|
Customized
|
Application
*Electric power safety monitoring
*Meteorological monitoring system
*Solar and wind generation
*Marine vessels & small airports & helipads
* Environment monitoring
*Bridge & Tunnel
*Agriculture
*Meteorological monitoring system
*Solar and wind generation
*Marine vessels & small airports & helipads
* Environment monitoring
*Bridge & Tunnel
*Agriculture
