Quick Details
-
Power:
-
2.4W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Wookom
-
Model Number:
-
WO-185M
-
Power supply:
-
DC12V±1V
-
TV system:
-
PAL/NTSC
-
Image sensor:
-
1/3'' CMOS
-
Resolution:
-
580 TV Lines
-
View angle:
-
150 Degrees
-
Current Consumption (mA):
-
40-120mA
-
Video output:
-
1.0vp-p,750hm
-
Waterproof Level:
-
IP67
-
Effective Pixels:
-
628 X 586 pixels
Quick Details
-
Car Fitment:
-
Universal
-
View Angle:
-
120°-170°
-
Function:
-
Waterproof, NIGHT VIEW, Parking Line
-
Power:
-
2.4W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Wookom
-
Model Number:
-
WO-185M
-
Power supply:
-
DC12V±1V
-
TV system:
-
PAL/NTSC
-
Image sensor:
-
1/3'' CMOS
-
Resolution:
-
580 TV Lines
-
View angle:
-
150 Degrees
-
Current Consumption (mA):
-
40-120mA
-
Video output:
-
1.0vp-p,750hm
-
Waterproof Level:
-
IP67
-
Effective Pixels:
-
628 X 586 pixels
|

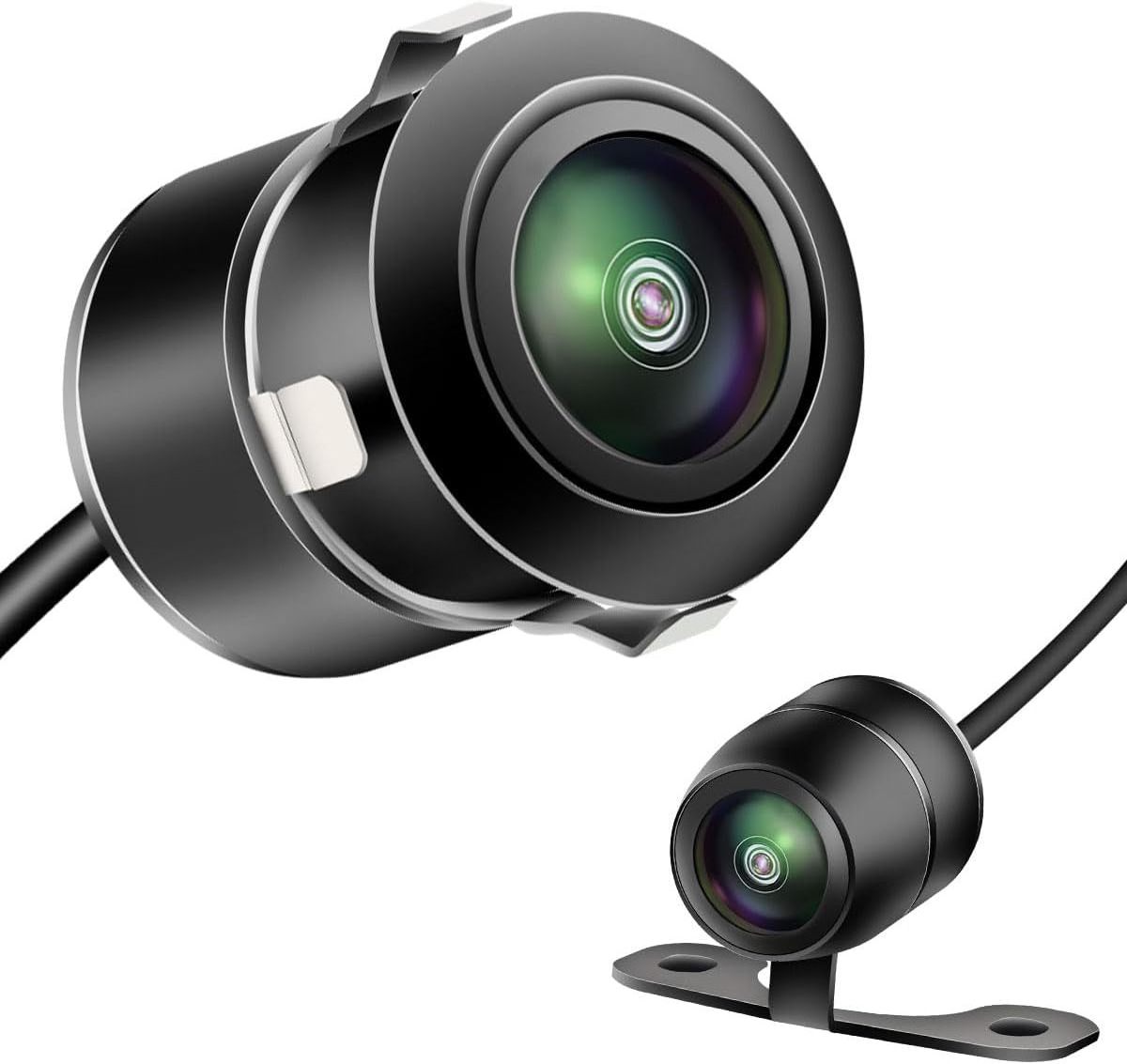

Woolkom WO-185M 18.5mm 2 Installation options Car Rearview camera
|
|
Product description:
|
|
1. 18.5mm 2 in 1 HD Camera for Back/Front of car
|
|
2. HD color CCD/CMOS, NTSC/PAL Optional TV system
|
|
3. Shockproof and waterproof(IP68)design
|
|
4. Resolution: 480 TV Lines
|
|
5. Horizontal Angle is 120 degree
|
|
6. Diagonal Angle is 170 degree
|
|
7. Minimum illumination: 0.1Lux
|
|
8. Effective pixels: 628 x 586 pixels/510 x 496 Pixels
|
|
9. Electronic shutter: 1/60(NTSC)1/50(PAL)1/10,000second
|
|
10. Video output: CCIR/EIA(PAL/NTSC) Standard Video Signal 1.0Vp-p,750hm
|
|
11. Power: <1W
|
|
12. Power supply: DC12V±1V
|
|
13. S/N Ratio: ≥48dB
|
|
14. White Balance: Auto
|
|
15. Waterproof Level: IP68
|
|
16. TV System: PAL/NTSC
|
|
17. Operating Temperature (Deg. C): -25~+75(RH95% Max.)
|
|
18. Storage Temperature (Deg. C): -25~+80(RH95% Max.)
|
|
19. Crystal clear images in all weather conditions Easy Installation
|
|
20. Woolkom Brand or Neutral is optional, Default is Neutral.
|
|
Package Contain:
|
|
1 x 18.5mm Car Rear View Camera
|
|
1 x RCA Video Cable
|
|
1 x Power Cable
|
|
1 x Flush Mount Hole Drill
|
|
2 x Screws
|
|
1 x English User Manual
|
|
Easy Installation:
|
|
1. Mount the camera to your car's license plate area, back window, or any other suitable place
|
|
2. Adjust the lens of the camera to its best position
|
|
3. Connect power wire to your vehicle DC 12V power system
|
|
4. Connect the video output (yellow wire) of the camera to the display in your vehicle.
|
|
5. Automatic white balance, AGC and BLC
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Woolkom brand or Neutral is optional.
