M906 backhoe loader tractor mini wheel loader with electric joystick control

M906 backhoe loader tractor mini wheel loader with electric joystick control

FOB Reference Price: Get Latest Price

≥1 Pieces

US $11700

≥3 Pieces

US $9000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Dimension(Long * Breadth * High):: 2569*970*2070mm

Machine Weight:: 1500 kg

Bucket capacity:: 0.35cbm, 0.35 m3

Product name:: mini loader

Lifting capacity:: 600kg

Speed:: 0~10km/h, variable speed

Max. length without bucket:: 2569mm

Max. width:: 970mm

Max. height to top of cabin:: 2070mm

Tyre:: 23x8.50-12

Quick Details

Engine Brand:: Perkins

Power:: 17.2 kw

Brand Name:: STEEL CAMEL

Place of Origin:: Shandong, China

Dimension(Long * Breadth * High):: 2569*970*2070mm

Machine Weight:: 1500 kg

Bucket capacity:: 0.35cbm, 0.35 m3

Product name:: mini loader

Lifting capacity:: 600kg

Speed:: 0~10km/h, variable speed

Max. length without bucket:: 2569mm

Max. width:: 970mm

Max. height to top of cabin:: 2070mm

Tyre:: 23x8.50-12

Product Description

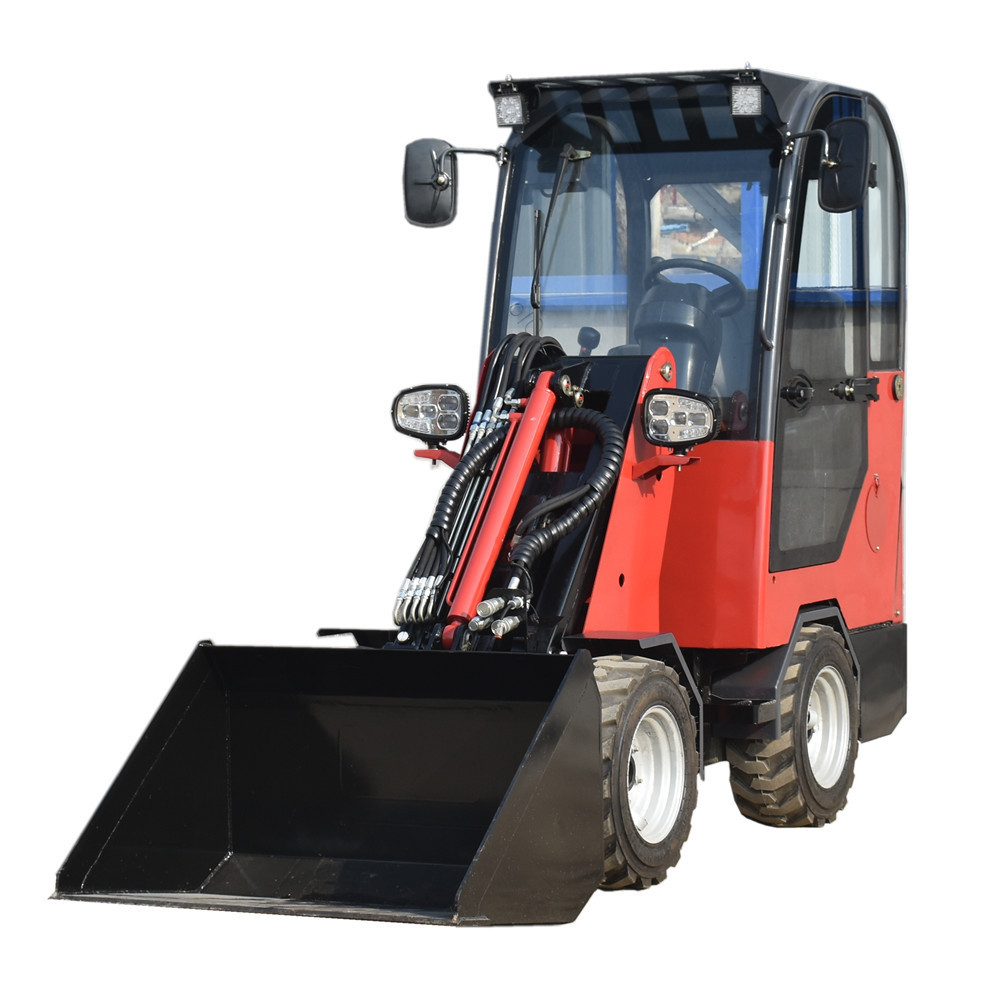

M906 backhoe loader tractor mini wheel loader with electric joystick control

If you are looking for a mini wheel loader, STEEL CAMEL M906 mini telescopic loader absolutely deserves your choice:

Very compact size, max. 940mm width, can pass through narrow doors or paths.

600kg lifting capacity, can meet most of your loading/unloading work needs

Hydrostatic transmission, maintenance free, no worn parts, convenient and simple to operate

Telescopic boom increases its lifting height, more useful and efficient.

Heated cabin/open canopy available, comfortable operation for all weather.

It is a loader but far more than a loader, with the quick hitch and hydraulic output, it can hook and drive various attachments like pallet fork, lawn mower, snow sweeper, log grapple, etc.

More than 60 kinds of attachments available for your choice, one stop solution for your work of farming, construction, gardening, forestry, etc.

Techincal Data

Model	M906 mini wheel loader
Dimension (LxWxH)	2590X940X2070mm
Max. lifting height to pin	2930mm
Bucket capacity	0.35cbm
Max. loading capacity	600kg
Min. turning radius	2090mm
Turning angle	41.2°
Min. ground clearance	184mm
Speed	0~10km/h
Weight without bucket	1500kg
Standard tire	23x8.50-12
Oil tank capacity	31 L
Pressure	200 bar
Working oil flow	40 L/min
Tracking oil flow	50L/min

Detailed Images

Telescopic boom with boom floating function, and hydraulic quick hitch for various attachments

More useful than other normal wheel loaders.

Combination of loader and tractor, both front and rear end can hook attachments, money for one machine, you get both a loader and a tractor, very compact size, can be driven into the warehouse or garage

Wide view cabin, adjustable steering column, joystick, forward/reverse pedal.

Operating friendly and easily.

Cabin can be tipping over, full access to the inner system, maintenance convenient and simple

Loader Application

Loader+Tractor, one Multi-purpose helper for globle customers

Front part is loader , with telescopic boom, hydraulic output, quick hitch and coupling system for various attachments, like bucket, fork, grapple, auger, hammer, lawn mower, etc.

Rear part is tractor , with hydraulic output and 3-point hitch, for rotary tiller, trailer, etc.

With all the attachments below, STEEL CAMEL series wheel loaders are widely used in farming, agriculture, landscaping, gardening, construction, municiple, etc.
