Quick Details
-
Dimension(L*W*H):
-
4950*2650*3177mm
-
Weight:
-
15ton
-
Design fuel:
-
wood, firewood,bark, waste fabric,log
-
Rated working pressure:
-
0.7 Mpa 1.0Mpa 1.25Mpa 1.6Mpa 2.5Mpa
-
Working Pressure:
-
6 7 8 10 12 13 14 16 25 Bar
-
Company:
-
boile factory manufacturer since 1956
-
Application 1:
-
textile mill,garment industry,rice mill,diaries,corrugated machine
-
Application 2:
-
papermaking industry,pringting mill,dyeing mill,dry cleaning
-
Application 3:
-
milk pasteurization, beer brewery, pharmaceutical industry,noodles,
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Core Components:
-
Boiler main body
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yuanda Boiler
-
Dimension(L*W*H):
-
4950*2650*3177mm
-
Weight:
-
15ton
-
Design fuel:
-
wood, firewood,bark, waste fabric,log
-
Rated working pressure:
-
0.7 Mpa 1.0Mpa 1.25Mpa 1.6Mpa 2.5Mpa
-
Working Pressure:
-
6 7 8 10 12 13 14 16 25 Bar
-
Company:
-
boile factory manufacturer since 1956
-
Application 1:
-
textile mill,garment industry,rice mill,diaries,corrugated machine
-
Application 2:
-
papermaking industry,pringting mill,dyeing mill,dry cleaning
-
Application 3:
-
milk pasteurization, beer brewery, pharmaceutical industry,noodles,
-
After-sales Service Provided:
-
Engineers available to service machinery overseas

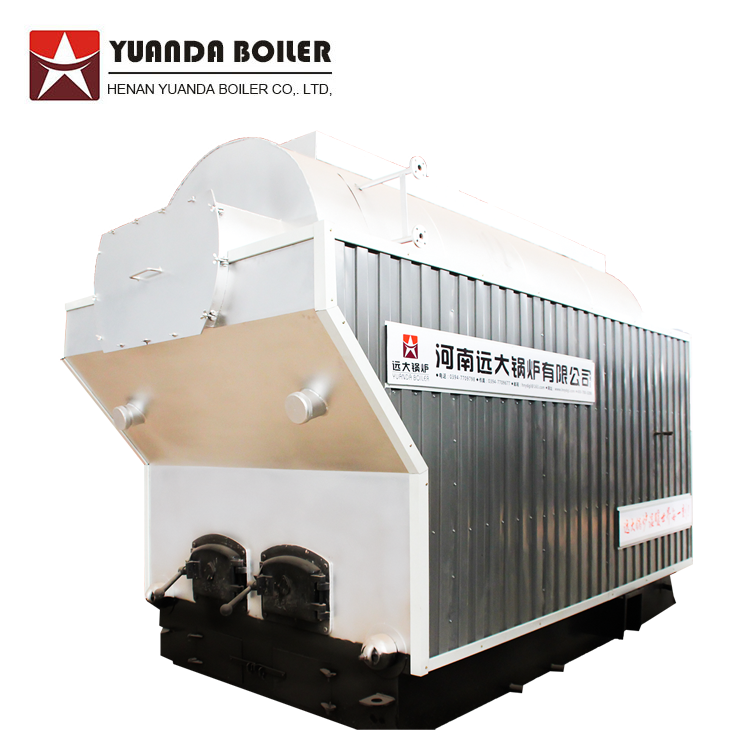

DZH 2 Ton Per Hour Wood Waste Corn Cob Steam Boiler Machine Price
Manual operation type boiler belong to DZH series boiler,its main featuers as fellow: horizontal type,feed fuel by hand with less trouble when oprating wood chips boilers. This DZH series boiler is highest cost-effective boiler,it is praised by our customers many years.
Core Technology
1.Spirally corrugated fire tubes
2.Inertia gas-dust separtion
3.New furnace arch with upside down "α"flue gas flow
4.Wing-shape flue
5.Steam-Water seperating equipment
6.Hot water boilers adopt the unique backwater ejection technology
| Boiler Model | DZH1-1.0 | DZH2-1.25 | DZH4-1.25 | DZL6-1.25 |
| Rated steam capacity(T/H) | 1 | 2 | 4 | 6 |
| Rated steam pressure(Mpa) | 1.0 | 1.25 | 1.25 | 1.25 |
| Rated steam temperature(℃) | 184 | 194 | 194 | 194 |
| Feed water temperature(℃) | 20/104 | |||
| Thermal efficiency(%) | >82 | |||
| Exhaust gas temperature(℃) | 137.4 | 123 | 143 | 141 |
| Fuel type | Soft coal | |||
| Fuel consumption(Kg/h) | 190 | 378 | 760 | 1040 |
| Max transportation weight(t) | 8.6 | 15 | 18.5 | 25 |
