Quick Details
-
Warranty:
-
30 Years
-
Brand Name:
-
JA
-
Model Number:
-
JAM54D41 LB
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1722*1134*30mm
-

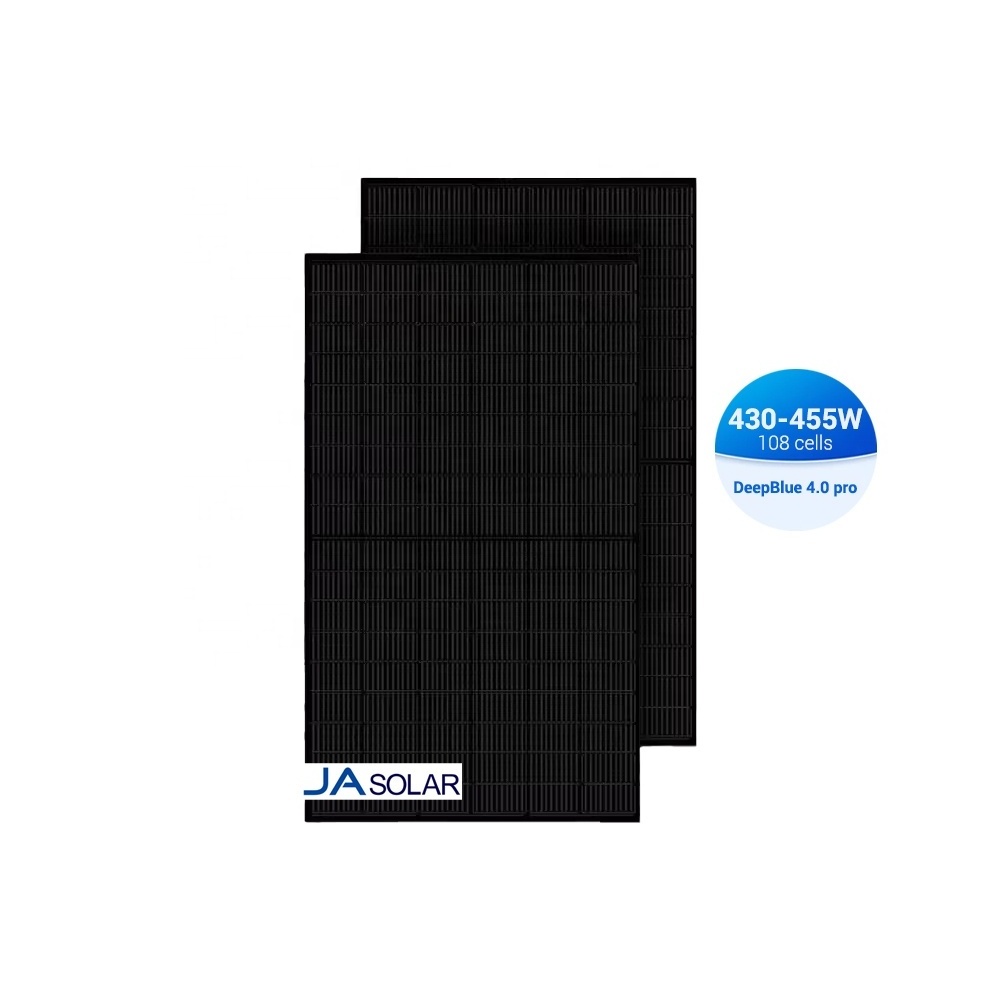

Product name:
-
TOPCon Solar Panel
-
Junction Box:
-
IP68 Rated
-
Weight:
-
22kg
-
Frame:
-
Aluminium Alloy
-
Application:
-
Solar Power System
-
Keyword:
-
TOPCon Solar Panel
-
Certificate:
-
TUV/CE/ISO/CQC/PICC
-
Solar cell:
-
Monocrystalline Silicon Cells
-
Feature:
-
High Efficiency Mono Solar Panel
-
Efficiency:
-
20%-23%
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
Bifacial, All Black, N-TYPE, TOPCON
-
Panel Efficiency:
-
22.02%
-
Warranty:
-
30 Years
-
Brand Name:
-
JA
-
Model Number:
-
JAM54D41 LB
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1722*1134*30mm
-
Product name:
-
TOPCon Solar Panel
-
Junction Box:
-
IP68 Rated
-
Weight:
-
22kg
-
Frame:
-
Aluminium Alloy
-
Application:
-
Solar Power System
-
Keyword:
-
TOPCon Solar Panel
-
Certificate:
-
TUV/CE/ISO/CQC/PICC
-
Solar cell:
-
Monocrystalline Silicon Cells
-
Feature:
-
High Efficiency Mono Solar Panel
-
Efficiency:
-
20%-23%
Product Description
ELECTRICAL DATA(STC)
|
Model
|
JAM54D41-430-455/LB
|
JAM54D41-435/LB
|
JAM54D41-440/LB
|
JAM54D41-445/LB
|
JAM54D41-450/LB
|
JAM54D41-455/LB
|
|||||
|
Rated Maximum Power(W)
|
430
|
435
|
440
|
445
|
450
|
455
|
|||||
|
Open Circuit Voltage(V)
|
38.5
|
38.7
|
38.9
|
39.1
|
39.3
|
39.5
|
|||||
|
Maximum Power Voltage(V)
|
32.12
|
32.29
|
32.47
|
32.65
|
32.82
|
33.00
|
|||||
|
Short Circuit Current(A)
|
14.14
|
14.23
|
14.31
|
14.40
|
14.48
|
14.56
|
|||||
|
Maximum Power Current(A)
|
13.39
|
13.47
|
13.55
|
13.63
|
13.71
|
13.79
|
|||||
|
Module Efficiency(%)
|
21.5
|
21.8
|
22.0
|
22.3
|
22.5
|
22.8
|
|||||
|
Power Tolerance
|
0 ~ +5W
|
|
|
|
|
|
|||||
|
Temperature Coefficient of Isc
|
+0.046%/℃
|
|
|
|
|
|
|||||
|
STC
|
Irradiance 1000W/㎡，cell temperature 25℃, AM1.5G
|
|
|
|
|
|
|||||
|
Mechanical Data of Solar Module
|
|
|
|
Cell orientation
|
108 Cells
|
|
|
Frame
|
Anodized Aluminium Alloy
|
|
|
Frame Thickness
|
30mm
|
|
|
Weight of module
|
22kg
|
|
|
Module Dimensions
|
1762*1134*30mm
|
|
|
Junction Box
|
IP68, three diodes
|
|
Product Series
JAM72D42 LB
Cells Layout: 144 Half Cells(6x24)
Dimensions: 2465x1134x35mm
Weight: 34.6kg
Modules per box: 31pcs
Modules per 40' container: 496pcs
Cells Layout: 144 Half Cells(6x24)
Dimensions: 2465x1134x35mm
Weight: 34.6kg
Modules per box: 31pcs
Modules per 40' container: 496pcs
JAM54D40 LB
Cells Layout: 108 Half Cells(6x18)
Dimensions: 1762x1134x30mm
Weight: 32.0kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Dimensions: 1762x1134x30mm
Weight: 32.0kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
JAM72D40 GB
Cells Layout: 144 Half Cells(6x24)
Dimensions: 2278x1134x30mm
Weight: 31.8kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Dimensions: 2278x1134x30mm
Weight: 31.8kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Quality Control
Packing&Shipping
Global Projects
Delivery & Payment Terms
|
Payment Terms
|
T/T
|
EXW
|
30%T/T in advance,paid the balance before shipment
|
|
|||
|
|
|
FOB
|
|
|
|||
|
|
|
CFR(C&F)
|
30%T/T in advance,paid the balance against copy of B/L
|
|
|||
|
|
|
CIF
|
|
|
|||
|
|
L/C
|
Optional L/C amount above 50,000usd, we can accept L/C at sight
|
|
|
|||
|
|
West Union
|
Optional for amount less than 5000usd
|
|
|
|||
|
|
paypal
|
|
|
|
|||
|
Delivery Time
|
7~10 days after receiving payment for one container
|
|
|
|
|||
