tire shredding machine tire grinding machine

Tire Recycling collection and processing facilities convert automobile, truck, off-road tires even OTR tires into innovative and useful products.

Two shaft shredders are specially designed for used tires, low speed, high torque operation minimize the noise and power consumption with high throughout rate. All the shredder blades thickness ranges from 25mm-152mm depending on type of tires, output ,final product, the shredder can process OTR tires, big truck tires, passenger car tires at a rate of 1t-30t in one hour.

Rubber chunks from tire shrdder

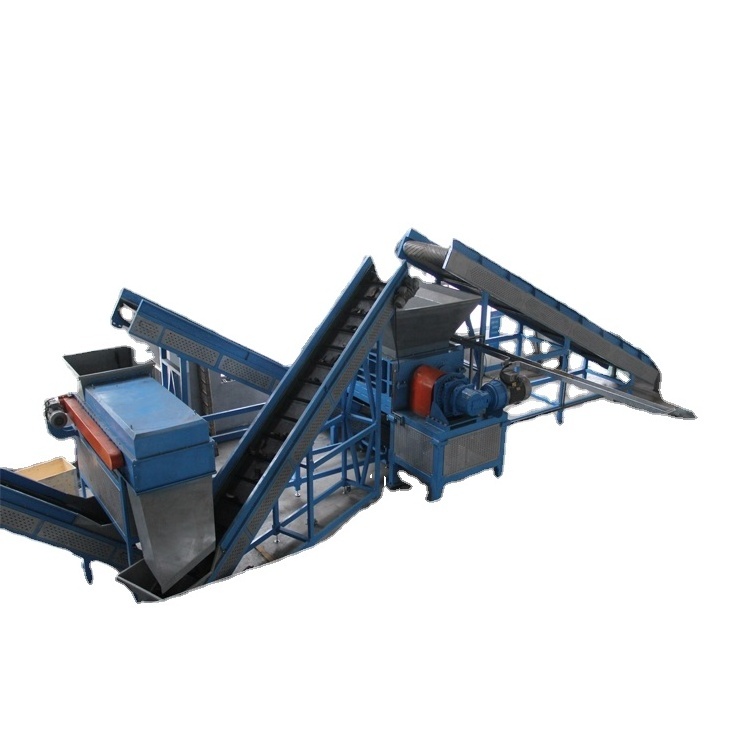

TDF shredder system

The Grater can process up to 6 tons of input per hour. The main rotor housing is equipped with replaceable wear plates to increase the durability and longevity of the cutting chamber.

The Granulators are designed to grind the rubber mulch from the Grater into small granules as fine as 1mm. The granules are screened and re-circulated until the desired size is reached. Due to the design of the Granulator and precise alignment of the blades, the Granulator produces a very uniform cut and high quality granule.

The miller is designed to grind 1-6mm granules to 30-120 mesh fine rubber powder according to demand. It features with convenient operation, high speed grinding tray which makes a continuous operation.
